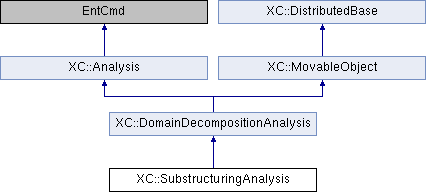

SubstructuringAnalysis is a subclass of Analysis, it is used when performing a domain decomposition analysis. It provides methods which can be invoked by a subdomain to perform the numerical computations required. More...
#include <SubstructuringAnalysis.h>
Public Member Functions | |
| virtual int | analyze (void) |
| Performs the analysis. | |
 Public Member Functions inherited from XC::DomainDecompositionAnalysis | |
| virtual void | clearAll (void) |
| Clears all object members (constraint handler, analysis model,...). | |
| virtual int | initialize (void) |
| virtual int | domainChanged (void) |
| Performs los cambios que implica un cambio en el domain del problema. | |
| virtual bool | doesIndependentAnalysis (void) |
| virtual int | analyze (double dT) |
| Performs the analysis. | |
| virtual int | getNumExternalEqn (void) |
| Returns the number of external equations. | |
| virtual int | getNumInternalEqn (void) |
| Returns the number of internal equations. | |
| virtual int | newStep (double dT) |
| virtual int | computeInternalResponse (void) |
| virtual int | formTangent (void) |
| Forma la tangent stiffness matrix. | |
| virtual int | formResidual (void) |
| Forma el vector residuo. | |
| virtual int | formTangVectProduct (Vector &force) |
| ?? | |
| virtual const Matrix & | getTangent (void) |
| Return the tangent stiffness matrix. | |
| virtual const Vector & | getResidual (void) |
| Returns the vector residuo. | |
| virtual const Vector & | getTangVectProduct (void) |
| virtual const DomainSolver * | getDomainSolver (void) const |
| Returns a pointer to the DomainSolver. | |
| virtual DomainSolver * | getDomainSolver (void) |
| Returns a pointer to the DomainSolver. | |
| virtual const Subdomain * | getSubdomain (void) const |
| Returns a pointer to the subdomain. | |
| virtual Subdomain * | getSubdomain (void) |
| Returns a pointer to the subdomain. | |
| virtual int | sendSelf (CommParameters &) |
| virtual int | recvSelf (const CommParameters &) |
| virtual int | setAlgorithm (EquiSolnAlgo &theAlgorithm) |
| Sets the solution algorithm to use in the analysis. | |
| virtual int | setIntegrator (IncrementalIntegrator &theIntegrator) |
| Sets the integrator to use in the analysis. | |
| virtual int | setLinearSOE (LinearSOE &theSOE) |
| Sets the system of equations to use in the analysis. | |
| virtual int | setConvergenceTest (ConvergenceTest &theTest) |
| Sets the convergence test to use in the analysis. | |
| Public Member Functions inherited from XC::Analysis | |
| SoluMethod * | getSoluMethodPtr (void) |
| Domain * | getDomainPtr (void) |
| Returns a pointer to the domain. | |
| const Domain * | getDomainPtr (void) const |
| Returns a pointer to the domain. | |
| ConstraintHandler * | getConstraintHandlerPtr (void) |
| Returns a pointer to the gestor de coacciones. | |
| DOF_Numberer * | getDOF_NumbererPtr (void) const |
| Returns a pointer to the DOF numberer. | |
| AnalysisModel * | getAnalysisModelPtr (void) const |
| Returns a pointer to the analysis model. | |
| LinearSOE * | getLinearSOEPtr (void) const |
| Returns a pointer to the linear system of equations. | |
| EigenSOE * | getEigenSOEPtr (void) const |
| Returns a pointer to the system of equations de eigenvalues. | |
| Integrator * | getIntegratorPtr (void) |
| Returns, if possible, a pointer al integrator otherwise it returns nullptr. | |
| const Integrator * | getIntegratorPtr (void) const |
| Returns, if possible, a pointer al integrator otherwise it returns nullptr. | |
| IncrementalIntegrator * | getIncrementalIntegratorPtr (void) |
| Returns, if possible, a pointer al integrator incremental otherwise it returns nullptr. | |
| EigenIntegrator * | getEigenIntegratorPtr (void) |
| Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr. | |
| LinearBucklingIntegrator * | getLinearBucklingIntegratorPtr (void) |
| Returns, if possible, a pointer al LinearBucklingIntegrator otherwise it returns nullptr. | |
| TransientIntegrator * | getTransientIntegratorPtr (void) |
| Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr. | |
| StaticIntegrator * | getStaticIntegratorPtr (void) |
| Returns, if possible, a pointer al StaticIntegrator otherwise it returns nullptr. | |
| SolutionAlgorithm * | getSolutionAlgorithmPtr (void) |
| EigenAlgorithm * | getEigenSolutionAlgorithmPtr (void) |
| Return a pointer to the eigenproblem solution algorithm (if it's not defined it returns nullptr). | |
| EquiSolnAlgo * | getEquiSolutionAlgorithmPtr (void) |
| Return a pointer to the linear SOE solution algorithm (if it's not defined it returns nullptr). | |
| DomainDecompAlgo * | getDomainDecompSolutionAlgorithmPtr (void) |
| Return a pointer to the domain decomposition solution algorithm (if it's not defined it returns nullptr). | |
| virtual ConvergenceTest * | getConvergenceTestPtr (void) |
| Returns a pointer to the convergence test (only for suitable analysis). | |
| virtual const ConvergenceTest * | getConvergenceTestPtr (void) const |
| Returns a pointer to the convergence test (only for suitable analysis). | |
| virtual int | setNumberer (DOF_Numberer &theNumberer) |
| Sets the renumerador to use in the analysis. | |
| virtual int | setEigenSOE (EigenSOE &theSOE) |
| Sets the sistema de eigenvalues to use in the analysis. | |
| virtual int | setIntegrator (Integrator &theNewIntegrator) |
| Sets the integrator to use in the analysis. | |
| virtual int | setAlgorithm (SolutionAlgorithm &theNewAlgorithm) |
| Set the solution algorithm to be used in the analysis. | |
| void | brokeConstraintHandler (const CommParameters &, const ID &) |
| void | brokeNumberer (const CommParameters &, const ID &) |
| void | brokeAnalysisModel (const CommParameters &, const ID &) |
| void | brokeDDLinearSOE (const CommParameters &, const ID &) |
| void | brokeLinearSOE (const CommParameters &, const ID &) |
| void | brokeIncrementalIntegrator (const CommParameters &, const ID &) |
| void | brokeStaticIntegrator (const CommParameters &, const ID &) |
| void | brokeTransientIntegrator (const CommParameters &, const ID &) |
| void | brokeDomainDecompAlgo (const CommParameters &, const ID &) |
| void | brokeEquiSolnAlgo (const CommParameters &, const ID &) |
| int | getAnalysisResult (void) const |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. | |
| MovableObject (int classTag) | |
| Constructor. | |
| MovableObject (const MovableObject &otro) | |
| Copy constructor. | |
| MovableObject & | operator= (const MovableObject &otro) |
| Operacdor asignación. | |
| int | getClassTag (void) const |
| Returns the tag de la clase. | |
| int | getDbTag (void) const |
| Returns the tag para la database. | |
| int | getDbTag (CommParameters &) |
| Returns the tag para la database. | |
| void | setDbTag (int dbTag) |
| Asigna el tag para la database. | |
| void | setDbTag (CommParameters &) |
| Asigna, sólo si es preciso, el tag para la database. | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
| virtual int | updateParameter (int parameterID, Information &info) |
| virtual int | activateParameter (int parameterID) |
| virtual int | setVariable (const std::string &variable, Information &) |
| Returns the identificador de la variable cuyo nombre being passed as parameter. | |
| virtual int | getVariable (const std::string &variable, Information &) |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Friends | |
| class | ProcSolu |
Additional Inherited Members | |
| Protected Member Functions inherited from XC::DomainDecompositionAnalysis | |
| Subdomain * | getSubdomainPtr (void) const |
| Returns a pointer to the subdomain. | |
| void | set_all_links (void) |
| Sets los pointers tol DomainDecompSolutionAlgorithm y al subdomain. | |
| DomainDecompositionAnalysis (Subdomain &theDomain, SoluMethod *s=nullptr) | |
| Constructor. | |
| DomainDecompositionAnalysis (Subdomain &theDomain, DomainSolver &theSolver, SoluMethod *s=nullptr) | |
| Constructor. | |
| DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, SoluMethod *s=nullptr) | |
| Constructor. | |
| DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, DomainSolver &theSolver, SoluMethod *s) | |
| Constructor. | |
| Protected Member Functions inherited from XC::Analysis | |
| int | newStepDomain (AnalysisModel *theModel, const double &dT=0.0) |
| ProcSolu * | getProcSolu (void) |
| const ProcSolu * | getProcSolu (void) const |
| Analysis (SoluMethod *metodo) | |
| Constructor. | |
| Protected Attributes inherited from XC::DomainDecompositionAnalysis | |
| int | domainStamp |
| Protected Attributes inherited from XC::Analysis | |
| int | analysis_result |
| Equal to zero if success. | |
| SoluMethod * | metodo_solu |
| Solution method. | |
SubstructuringAnalysis is a subclass of Analysis, it is used when performing a domain decomposition analysis. It provides methods which can be invoked by a subdomain to perform the numerical computations required.
