Domain (mesh and boundary conditions) of the finite element model. More...

#include <Domain.h>

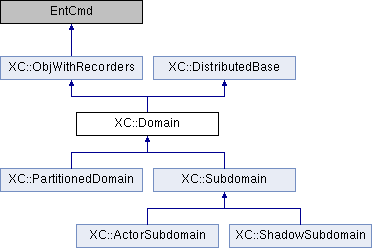

Inheritance diagram for XC::Domain:

Public Member Functions
	Domain (EntCmd owr, DataOutputHandler::map_output_handlers oh)
	Constructor.

	Domain (EntCmd owr, int numNods, int numElements, int numSPs, int numMPs, int numLPatterns, int numNLockers, DataOutputHandler::map_output_handlers oh)
	Constructor.

virtual	~Domain (void)
	Destructor. More...

virtual bool	addElement (Element *)
	Adds to the domain the element being passed as parameter.

virtual bool	addNode (Node *)
	Adds to the domain el nodo being passed as parameter.

virtual bool	addSFreedom_Constraint (SFreedom_Constraint *)
	Adds to the domain una constraint monopunto.

virtual bool	addMFreedom_Constraint (MFreedom_Constraint *)
	Adds to the domain una constraint multipunto.

virtual bool	addMRMFreedom_Constraint (MRMFreedom_Constraint *)
	Adds to the domain una constraint multi retained node.

virtual bool	addLoadPattern (LoadPattern *)
	Adds al modelo la hipótesis simple being passed as parameter.

virtual bool	addNodeLocker (NodeLocker *)
	Adds al modelo.

virtual bool	addLoadCombination (LoadCombination *)
	Adds to the domain the load combination being passed as parameter.

void	setNodeReactionException (const int &)
	Asigna la excepción para comprobación de reacciones (ver Domain::checkNodalReactions).

void	checkNodalReactions (const double &)

virtual bool	addSFreedom_Constraint (SFreedom_Constraint *, int loadPatternTag)
	Adds to the domain una constraint monopunto.

virtual bool	addNodalLoad (NodalLoad *, int loadPatternTag)
	Appends a nodal load to the pattern being passed as parameter.

virtual bool	addElementalLoad (ElementalLoad *, int loadPatternTag)
	Adds to the caso being passed as parameter una load over elements.

virtual void	clearAll (void)
	Removes all components from domain (nodes, elements, loads & constraints). GENERAL NOTE ON REMOVAL OF COMPONENTS: downward casts (while bad) are o.k. as only the type of components can be added to the storage objects, e.g. only elements can be added to theElements therefore casting a XC::DomainComponent from theElements to an XC::Element is o.k.

virtual bool	removeElement (int tag)
	Clears the element identified by the tag being passed as parameter.

virtual bool	removeNode (int tag)
	Elimina the node identified by the tag being passed as parameter.

virtual bool	removeSFreedom_Constraint (int theNode, int theDOF, int loadPatternTag)

virtual bool	removeSFreedom_Constraint (int tag)
	Elimina del domain la constraint monopunto cuyo tag being passed as parameter.

virtual bool	removeMFreedom_Constraint (int tag)
	Elimina del domain la constraint multipunto cuyo tag being passed as parameter.

virtual bool	removeMRMFreedom_Constraint (int tag)
	Elimina del domain la constraint multi retained node cuyo tag being passed as parameter.

virtual bool	removeLoadPattern (int loadTag)
	Elimina del domain el load pattern cuyo tag being passed as parameter.

virtual bool	removeNodeLocker (int nlTag)
	Elimina del domain el.

bool	removeLoadPattern (LoadPattern *lp)
	Elimina del domain el load pattern being passed as parameter.

bool	removeNodeLocker (NodeLocker *lp)
	Elimina del domain el load pattern being passed as parameter.

void	removeLoadCombination (LoadCombination *comb)
	Removes from the domain the load combination being passed as parameter.

void	removeLPs (void)
	Elimina del domain todos los load patterns.

void	removeNLs (void)
	Elimina del domain todos los bloqueos de nodos.

virtual bool	removeNodalLoad (int tag, int loadPattern)
	Removes from domain the nodal load being passed as parameter. More...

virtual bool	removeElementalLoad (int tag, int loadPattern)
	Removes from domain the elemental load being passed as parameter. More...

virtual bool	removeSFreedom_Constraint (int tag, int loadPattern)
	Removes from domain the single freedom constraint being passed as parameter. More...

virtual void	clearDOF_GroupPtr (void)
	Clears the pointers to DOF groups.

virtual ElementIter &	getElements (void)
	Returns an iterator to the element container.

virtual NodeIter &	getNodes (void)
	Returns an iterator a los nodos del domain.

virtual Mesh &	getMesh (void)
	Returns a reference to the domain mesh.

virtual const Mesh &	getMesh (void) const
	Returns a reference to the domain mesh.

virtual ConstrContainer &	getConstraints (void)
	Returns domain constraints.

virtual const ConstrContainer &	getConstraints (void) const
	Returns domain constraints.

const std::string &	getNombreCombActual (void) const
	Returns the name of the current load combination.

bool	existElement (int tag)
	Returns true if the element identified by the tag being passed as parameter already exists en el domain.

virtual Element *	getElement (int tag)
	Returns a pointer to the element identified by the tag being passed as parameter.

virtual const Element *	getElement (int tag) const
	Returns a const pointer to the element identified by the tag being passed as parameter.

bool	existNode (int tag)
	Returns true if the mesh has a node with the tag being passed as parameter.

virtual Node *	getNode (int tag)
	Returns a pointer to the nodo cuyo tag being passed as parameter.

virtual const Node *	getNode (int tag) const
	Returns a pointer to the nodo cuyo tag being passed as parameter.

const PseudoTimeTracker &	getTimeTracker (void) const

int	getCurrentGeoTag (void) const

virtual int	getCommitTag (void) const

virtual int	getNumElements (void) const
	Returns the number of elements.

virtual int	getNumNodes (void) const
	Returns the número de nodos.

virtual const Vector &	getPhysicalBounds (void)
	Returns the BND of the model.

virtual Graph &	getElementGraph (void)
	Builds (if necessary) the domain elements graph and returns a reference to it.

virtual Graph &	getNodeGraph (void)
	Builds (if necessary) the domain nodes graph and returns a reference to it.

virtual void	setCommitTag (int newTag)

virtual void	setCurrentTime (double newTime)

virtual void	setCommittedTime (double newTime)

virtual void	setTime (double newTime)

virtual void	applyLoad (double pseudoTime)

virtual void	setLoadConstant (void)
	Set all the loads as constant.

virtual int	initialize (void)
	Inicializa.

virtual int	setRayleighDampingFactors (const RayleighDampingFactors &rF)
	Asigna valores a los coeficientes de amortiguamiento de Rayleigh.

virtual int	commit (void)
	Commits domain state and triggers "record" method for all defined recorders.

virtual int	revertToLastCommit (void)
	Returns the domain to its last commited state.

virtual int	revertToStart (void)
	Returns the domain to its initial state and triggers the "restart" method for all the recorders.

virtual int	update (void)
	Updates the state of the mesh.

virtual int	update (double newTime, double dT)
	Actualiza el estado del domain.

virtual int	newStep (double dT)

void	resetLoadCase (void)
	Prepares the domain to solve for a new load pattern.

int	getNumModes (void) const
	Returns the number of computed eigenvalues.

virtual int	setEigenvalues (const Vector &)
	Sets eigenvalues.

virtual const double &	getEigenvalue (int) const
	Returns the eigenvalue of the i-th mode.

double	getAngularFrequency (int) const
	Return the angular frequency of the i-th mode.

double	getPeriodo (int) const
	Returns the period of the i-th mode.

double	getFrecuencia (int) const
	Return the frequency of the i-th mode.

virtual const Vector &	getEigenvalues (void) const
	Returns the eigenvalues vector.

Vector	getAngularFrequencies (void) const
	Returns a vector with the computed angular frequencies (for each mode).

Vector	getPeriodos (void) const
	Returns a vector with the computed periods (for each mode).

Vector	getFrecuencias (void) const
	Returns a vector with the computed frequencies (for each mode).

virtual int	setModalParticipationFactors (const Vector &)
	Sets the values of the modal participation factors.

virtual const double &	getModalParticipationFactor (int mode) const
	Returns the modal participation factor of the i-th mode.

virtual const Vector &	getModalParticipationFactors (void) const
	Returns the modal participation factors.

const double	getEffectiveModalMass (int mode) const
	Return the effective modal mass of the i-th mode.

Vector	getEffectiveModalMasses (void) const
	Returns the effective modal masses for each mode.

double	getTotalMass (void) const
	Return the total effective modal mass.

virtual void	domainChange (void)
	Establece que the model ha cambiado.

virtual int	hasDomainChanged (void)
	Returns true if the modelo ha cambiado.

virtual void	setDomainChangeStamp (int newStamp)

virtual int	addRegion (MeshRegion &theRegion)
	Adds a region.

virtual MeshRegion *	getRegion (int region)
	Returns a pointer to the la región cuyo tag being passed as parameter.

virtual void	Print (std::ostream &s, int flag=0)
	Imprime el domain.

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

const Preprocessor *	GetPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	GetPreprocessor (void)
	Returns (if possible) a pointer to the preprocessor.

virtual double	getNodeDisp (int nodeTag, int dof, int &errorFlag)
	Returns the value of dof component of displacement for the node with the tag being passed as parameter. More...

virtual int	setMass (const Matrix &mass, int nodeTag)
	Asigna la matriz de masas al nudo cuyo tag being passed as parameter.

virtual int	calculateNodalReactions (bool inclInertia, const double &)
	Calculate nodal reaction forces and moments.

virtual int	addRecorder (Recorder &theRecorder)
	Adds a recorder to the model.

Public Member Functions inherited from XC::ObjWithRecorders
	ObjWithRecorders (EntCmd owr, DataOutputHandler::map_output_handlers oh=nullptr)

virtual	~ObjWithRecorders (void)
	Destructor.

Recorder *	newRecorder (const std::string &, DataOutputHandler *oh=nullptr)
	Lee un objeto Recorder desde archivo.

recorder_iterator	recorder_begin (void)

const_recorder_iterator	recorder_begin (void) const

recorder_iterator	recorder_end (void)

const_recorder_iterator	recorder_end (void) const

virtual int	record (int track, double timeStamp=0.0)
	Ejecuta los recorders sobre el tag being passed as parameter.

void	restart (void)
	Rearranca los recorders.

virtual int	removeRecorders (void)
	Elimina los recorders.

void	setLinks (Domain *dom)
	Asigna el domain a los recorders.

void	SetOutputHandlers (DataOutputHandler::map_output_handlers *oh)
	Asigna el almacén de gestores de salida.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Static Public Member Functions
static void	setDeadSRF (const double &)
	Assigns Stress Reduction Factor for element deactivation.

Protected Member Functions
virtual int	buildEleGraph (Graph &theEleGraph)
	Builds the element graph.

virtual int	buildNodeGraph (Graph &theNodeGraph)
	Builds the node graph.

virtual Domain *	get_domain_ptr (void)

void	libera (void)

DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ObjWithRecorders
int	sendData (CommParameters &cp)

int	recvData (const CommParameters &cp)

size_t	getNumRecorders (void) const
	Returns the number of recorders already defined.

Friends
std::ostream &	operator<< (std::ostream &s, Domain &M)

int	sendDomain (Domain &, int posDbTag, DbTagData &, CommParameters &cp)

int	receiveDomain (Domain &, int posDbTag, DbTagData &, const CommParameters &cp)

Additional Inherited Members
Public Types inherited from XC::ObjWithRecorders
typedef std::list< Recorder * >	lista_recorders

typedef lista_recorders::iterator	recorder_iterator

typedef lista_recorders::const_iterator	const_recorder_iterator

Detailed Description

Domain (mesh and boundary conditions) of the finite element model.

Constructor & Destructor Documentation

XC::Domain::~Domain ( void )

virtual

Destructor.

destructor, this calls delete on all components of the model, i.e. calls delete on all that is added to the model. WARNING: if 3rd constructor, TaggedObjectStorage objects passed must have been created with new and nowhere else must the destructor be called.

Member Function Documentation

double XC::Domain::getNodeDisp	(	int	nodeTag,
		int	dof,
		int &	errorFlag
	)

virtual

Returns the value of dof component of displacement for the node with the tag being passed as parameter.

Parameters

nodeTag	node identifier.
dof	component of the displacement.
errorFlag	error indicator.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

bool XC::Domain::removeElementalLoad	(	int	elemLoadTag,
		int	loadPattern
	)

virtual

Removes from domain the elemental load being passed as parameter.

Parameters

elemLoadTag	Identificador de the load over elements a eliminar.
loadPattern	Load pattern identifier.

Reimplemented in XC::ShadowSubdomain.

bool XC::Domain::removeNodalLoad	(	int	nodalLoadTag,
		int	loadPattern
	)

virtual

Removes from domain the nodal load being passed as parameter.

Parameters

nodalLoadTag	Nodal load identifier.
loadPattern	Load pattern identifier.

Reimplemented in XC::ShadowSubdomain.

bool XC::Domain::removeSFreedom_Constraint	(	int	singleFreedomTag,
		int	loadPattern
	)

virtual

Removes from domain the single freedom constraint being passed as parameter.

Parameters

singleFreedomTag	Single freedom identifier.
loadPattern	Load pattern identifier.

Reimplemented in XC::ShadowSubdomain.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/domain/Domain.h
/usr/local/src/prg/xc/src/domain/domain/Domain.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
