XC::Analysis Class Referenceabstract
Solution of the finite element analysis problem. » Problem analysis procedures. » Analysis type (static, dynamic, eigenvalues, modal, ...).

Clase Base para los objetos que realizan the analysis. More...

#include <Analysis.h>

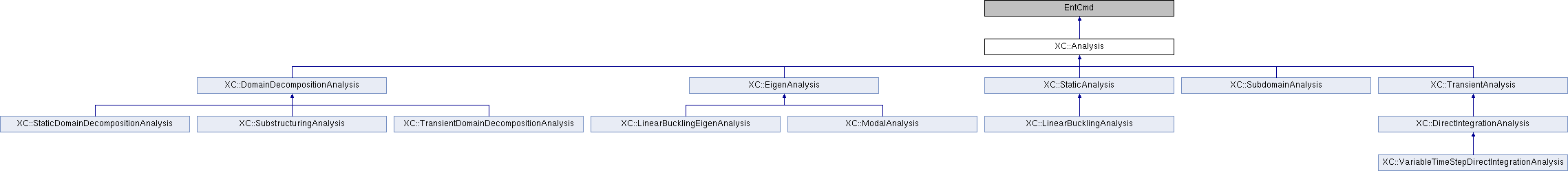

Inheritance diagram for XC::Analysis:
XC::DomainDecompositionAnalysis XC::EigenAnalysis XC::StaticAnalysis XC::SubdomainAnalysis XC::TransientAnalysis XC::StaticDomainDecompositionAnalysis XC::SubstructuringAnalysis XC::TransientDomainDecompositionAnalysis XC::LinearBucklingEigenAnalysis XC::ModalAnalysis XC::LinearBucklingAnalysis XC::DirectIntegrationAnalysis XC::VariableTimeStepDirectIntegrationAnalysis

Public Member Functions

SoluMethod * getSoluMethodPtr (void)

Domain * getDomainPtr (void)
 Returns a pointer to the domain.

const Domain * getDomainPtr (void) const
 Returns a pointer to the domain.

ConstraintHandler * getConstraintHandlerPtr (void)
 Returns a pointer to the gestor de coacciones.

DOF_Numberer * getDOF_NumbererPtr (void) const
 Returns a pointer to the DOF numberer.

AnalysisModel * getAnalysisModelPtr (void) const
 Returns a pointer to the analysis model.

LinearSOE * getLinearSOEPtr (void) const
 Returns a pointer to the linear system of equations.

EigenSOE * getEigenSOEPtr (void) const
 Returns a pointer to the system of equations de eigenvalues.

Integrator * getIntegratorPtr (void)
 Returns, if possible, a pointer al integrator otherwise it returns nullptr.

const Integrator * getIntegratorPtr (void) const
 Returns, if possible, a pointer al integrator otherwise it returns nullptr.

IncrementalIntegrator * getIncrementalIntegratorPtr (void)
 Returns, if possible, a pointer al integrator incremental otherwise it returns nullptr.

EigenIntegrator * getEigenIntegratorPtr (void)
 Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

LinearBucklingIntegrator * getLinearBucklingIntegratorPtr (void)
 Returns, if possible, a pointer al LinearBucklingIntegrator otherwise it returns nullptr.

TransientIntegrator * getTransientIntegratorPtr (void)
 Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

StaticIntegrator * getStaticIntegratorPtr (void)
 Returns, if possible, a pointer al StaticIntegrator otherwise it returns nullptr.

SolutionAlgorithm * getSolutionAlgorithmPtr (void)

EigenAlgorithm * getEigenSolutionAlgorithmPtr (void)
 Return a pointer to the eigenproblem solution algorithm (if it's not defined it returns nullptr).

EquiSolnAlgo * getEquiSolutionAlgorithmPtr (void)
 Return a pointer to the linear SOE solution algorithm (if it's not defined it returns nullptr).

DomainDecompAlgo * getDomainDecompSolutionAlgorithmPtr (void)
 Return a pointer to the domain decomposition solution algorithm (if it's not defined it returns nullptr).

virtual ConvergenceTest * getConvergenceTestPtr (void)
 Returns a pointer to the convergence test (only for suitable analysis).

virtual const ConvergenceTest * getConvergenceTestPtr (void) const
 Returns a pointer to the convergence test (only for suitable analysis).

virtual const DomainSolver * getDomainSolver (void) const
 Returns a pointer to the DomainSolver.

virtual DomainSolver * getDomainSolver (void)
 Returns a pointer to the DomainSolver.

virtual const Subdomain * getSubdomain (void) const
 Returns a pointer to the subdomain.

virtual Subdomain * getSubdomain (void)
 Returns a pointer to the subdomain.

virtual int domainChanged (void)=0

virtual void clearAll (void)
 Deletes all members (Constraint handler, analysis model,...).

virtual int setNumberer (DOF_Numberer &theNumberer)
 Sets the renumerador to use in the analysis.

virtual int setLinearSOE (LinearSOE &theSOE)
 Sets the linear system of equations to use in the analysis.

virtual int setEigenSOE (EigenSOE &theSOE)
 Sets the sistema de eigenvalues to use in the analysis.

virtual int setIntegrator (Integrator &theNewIntegrator)
 Sets the integrator to use in the analysis.

virtual int setAlgorithm (SolutionAlgorithm &theNewAlgorithm)
 Set the solution algorithm to be used in the analysis.

void brokeConstraintHandler (const CommParameters &, const ID &)

void brokeNumberer (const CommParameters &, const ID &)

void brokeAnalysisModel (const CommParameters &, const ID &)

void brokeDDLinearSOE (const CommParameters &, const ID &)

void brokeLinearSOE (const CommParameters &, const ID &)

void brokeIncrementalIntegrator (const CommParameters &, const ID &)

void brokeStaticIntegrator (const CommParameters &, const ID &)

void brokeTransientIntegrator (const CommParameters &, const ID &)

void brokeDomainDecompAlgo (const CommParameters &, const ID &)

void brokeEquiSolnAlgo (const CommParameters &, const ID &)

int getAnalysisResult (void) const


Protected Member Functions

int newStepDomain (AnalysisModel *theModel, const double &dT=0.0)

ProcSolu * getProcSolu (void)

const ProcSolu * getProcSolu (void) const

 Analysis (SoluMethod *metodo)
 Constructor.

virtual Analysis * getCopy (void) const =0


Protected Attributes

int analysis_result
 Equal to zero if success.

SoluMethod * metodo_solu
 Solution method.


Friends

class ProcSolu


Detailed Description

Clase Base para los objetos que realizan the analysis.

The documentation for this class was generated from the following files:
