IncrementalIntegrator is an algorithmic class for setting up the finite element equations in an incremental analysis and for updating the nodal response quantities based on the values in the soln vector. More...

#include <IncrementalIntegrator.h>

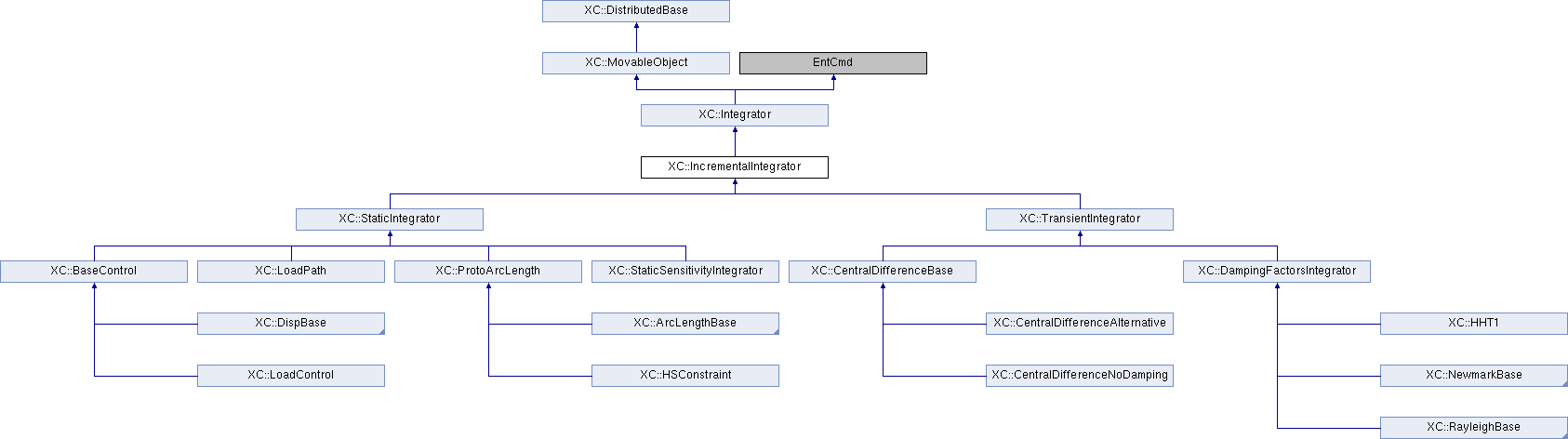

Inheritance diagram for XC::IncrementalIntegrator:

Public Member Functions
virtual int	formTangent (int statusFlag=CURRENT_TANGENT)
	Builds tangent stiffness matrix.

virtual int	formUnbalance (void)
	Builds the unbalanced load vector (right hand side of the equation).

virtual int	formEleTangent (FE_Element *theEle)=0

virtual int	formNodTangent (DOF_Group *theDof)=0

virtual int	formEleResidual (FE_Element *theEle)=0

virtual int	formNodUnbalance (DOF_Group *theDof)=0

virtual int	newStep (double deltaT)
	??

virtual int	update (const Vector &deltaU)=0

virtual int	commit (void)
	Consuma los valores calculados hasta ahora.

virtual int	revertToLastStep (void)

virtual int	initialize (void)

virtual int	revertToStart ()

virtual int	getLastResponse (Vector &result, const ID &id)
	Returns the response on the DOFs being passed as parameter. More...

Public Member Functions inherited from XC::Integrator
virtual int	domainChanged (void)
	Hace los cambios oportunos cuando se ha producido un cambio en el domain.

virtual void	Print (std::ostream &s, int flag=0)

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	sendSelf (CommParameters &)=0

virtual int	recvSelf (const CommParameters &)=0

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
LinearSOE *	getLinearSOEPtr (void)
	Returns a pointer to the system of equations de eigenvalues.

const LinearSOE *	getLinearSOEPtr (void) const
	Returns a pointer to the system of equations de eigenvalues.

virtual int	formNodalUnbalance (void)
	Builds the nodal unbalanced load vector.

virtual int	formElementResidual (void)
	Forma el unbalanced load vector of the elements.

	IncrementalIntegrator (SoluMethod *, int classTag)
	Constructor.

Protected Member Functions inherited from XC::Integrator
SoluMethod *	getSoluMethod (void)
	Returns a pointer to the solution method that owns this object.

const SoluMethod *	getSoluMethod (void) const
	Returns a const pointer to the solution method that owns this object.

void	applyLoadModel (double newTime)

int	updateModel (void)

int	updateModel (double newTime, double dT)

int	commitModel (void)

double	getCurrentModelTime (void)

void	setCurrentModelTime (const double &t)

void	setRayleighDampingFactors (const RayleighDampingFactors &rF)

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model.

	Integrator (SoluMethod *, int classTag)
	Constructor.

virtual Integrator *	getCopy (void) const =0

Protected Attributes
int	statusFlag

Friends
class	IntegratorVectors

Detailed Description

IncrementalIntegrator is an algorithmic class for setting up the finite element equations in an incremental analysis and for updating the nodal response quantities based on the values in the soln vector.

Member Function Documentation

int XC::IncrementalIntegrator::getLastResponse	(	Vector &	result,
		const ID &	id
	)

virtual

Returns the response on the DOFs being passed as parameter.

Parameters

id	dofs identifiers on wich the response is requested.
result	respones values.

Implements XC::Integrator.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/solution/analysis/integrator/IncrementalIntegrator.h
/usr/local/src/prg/xc/src/solution/analysis/integrator/IncrementalIntegrator.cpp
