SubdomainAnalysis is a subclass of AnalysisAnalysis, it is used when performing a domain decomposition analysis. It provides methods which can be invoked by a subdomain to perform the numerical computations required. More...

#include <SubdomainAnalysis.h>

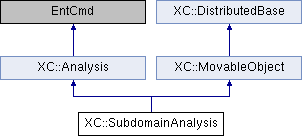

Inheritance diagram for XC::SubdomainAnalysis:

Public Member Functions
virtual int	analyze (void)

virtual int	domainChanged (void)

virtual int	getNumExternalEqn (void)

virtual int	getNumInternalEqn (void)

virtual int	newStep (double dT)

virtual int	computeInternalResponse (void)

virtual int	formTangent (void)

virtual int	formResidual (void)

virtual int	formTangVectProduct (Vector &force)

virtual const Matrix &	getTangent (void)

virtual const Vector &	getResidual (void)

virtual const Vector &	getTangVectProduct (void)

virtual int	sendSelf (CommParameters &)

virtual int	recvSelf (const CommParameters &)

Public Member Functions inherited from XC::Analysis
SoluMethod *	getSoluMethodPtr (void)

Domain *	getDomainPtr (void)
	Returns a pointer to the domain.

const Domain *	getDomainPtr (void) const
	Returns a pointer to the domain.

ConstraintHandler *	getConstraintHandlerPtr (void)
	Returns a pointer to the gestor de coacciones.

DOF_Numberer *	getDOF_NumbererPtr (void) const
	Returns a pointer to the DOF numberer.

AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model.

LinearSOE *	getLinearSOEPtr (void) const
	Returns a pointer to the linear system of equations.

EigenSOE *	getEigenSOEPtr (void) const
	Returns a pointer to the system of equations de eigenvalues.

Integrator *	getIntegratorPtr (void)
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

const Integrator *	getIntegratorPtr (void) const
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

IncrementalIntegrator *	getIncrementalIntegratorPtr (void)
	Returns, if possible, a pointer al integrator incremental otherwise it returns nullptr.

EigenIntegrator *	getEigenIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

LinearBucklingIntegrator *	getLinearBucklingIntegratorPtr (void)
	Returns, if possible, a pointer al LinearBucklingIntegrator otherwise it returns nullptr.

TransientIntegrator *	getTransientIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

StaticIntegrator *	getStaticIntegratorPtr (void)
	Returns, if possible, a pointer al StaticIntegrator otherwise it returns nullptr.

SolutionAlgorithm *	getSolutionAlgorithmPtr (void)

EigenAlgorithm *	getEigenSolutionAlgorithmPtr (void)
	Return a pointer to the eigenproblem solution algorithm (if it's not defined it returns nullptr).

EquiSolnAlgo *	getEquiSolutionAlgorithmPtr (void)
	Return a pointer to the linear SOE solution algorithm (if it's not defined it returns nullptr).

DomainDecompAlgo *	getDomainDecompSolutionAlgorithmPtr (void)
	Return a pointer to the domain decomposition solution algorithm (if it's not defined it returns nullptr).

virtual ConvergenceTest *	getConvergenceTestPtr (void)
	Returns a pointer to the convergence test (only for suitable analysis).

virtual const ConvergenceTest *	getConvergenceTestPtr (void) const
	Returns a pointer to the convergence test (only for suitable analysis).

virtual const DomainSolver *	getDomainSolver (void) const
	Returns a pointer to the DomainSolver.

virtual DomainSolver *	getDomainSolver (void)
	Returns a pointer to the DomainSolver.

virtual const Subdomain *	getSubdomain (void) const
	Returns a pointer to the subdomain.

virtual Subdomain *	getSubdomain (void)
	Returns a pointer to the subdomain.

virtual void	clearAll (void)
	Deletes all members (Constraint handler, analysis model,...).

virtual int	setNumberer (DOF_Numberer &theNumberer)
	Sets the renumerador to use in the analysis.

virtual int	setLinearSOE (LinearSOE &theSOE)
	Sets the linear system of equations to use in the analysis.

virtual int	setEigenSOE (EigenSOE &theSOE)
	Sets the sistema de eigenvalues to use in the analysis.

virtual int	setIntegrator (Integrator &theNewIntegrator)
	Sets the integrator to use in the analysis.

virtual int	setAlgorithm (SolutionAlgorithm &theNewAlgorithm)
	Set the solution algorithm to be used in the analysis.

void	brokeConstraintHandler (const CommParameters &, const ID &)

void	brokeNumberer (const CommParameters &, const ID &)

void	brokeAnalysisModel (const CommParameters &, const ID &)

void	brokeDDLinearSOE (const CommParameters &, const ID &)

void	brokeLinearSOE (const CommParameters &, const ID &)

void	brokeIncrementalIntegrator (const CommParameters &, const ID &)

void	brokeStaticIntegrator (const CommParameters &, const ID &)

void	brokeTransientIntegrator (const CommParameters &, const ID &)

void	brokeDomainDecompAlgo (const CommParameters &, const ID &)

void	brokeEquiSolnAlgo (const CommParameters &, const ID &)

int	getAnalysisResult (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
Subdomain *	getSubdomainPtr (void) const

DomainSolver *	getDomainSolverPtr (void) const

	SubdomainAnalysis (Subdomain &theDomain)

	SubdomainAnalysis (int classTag, Subdomain &theDomain)

	SubdomainAnalysis (Subdomain &theDomain, ConstraintHandler &theHandler, DOF_Numberer &theNumberer, AnalysisModel &theModel, DomainDecompAlgo &theSolnAlgo, IncrementalIntegrator &theIntegrator, LinearSOE &theSOE, DomainSolver &theSolver)

Analysis *	getCopy (void) const

Protected Member Functions inherited from XC::Analysis
int	newStepDomain (AnalysisModel *theModel, const double &dT=0.0)

ProcSolu *	getProcSolu (void)

const ProcSolu *	getProcSolu (void) const

	Analysis (SoluMethod *metodo)
	Constructor.

Friends
class	ProcSolu

Additional Inherited Members
Protected Attributes inherited from XC::Analysis
int	analysis_result
	Equal to zero if success.

SoluMethod *	metodo_solu
	Solution method.

Detailed Description

SubdomainAnalysis is a subclass of AnalysisAnalysis, it is used when performing a domain decomposition analysis. It provides methods which can be invoked by a subdomain to perform the numerical computations required.

The documentation for this class was generated from the following file:

/usr/local/src/prg/xc/src/solution/analysis/analysis/SubdomainAnalysis.h
