StaticDomainDecompositionAnalysis is a subclass of DomainDecompositionAnalysis used to perform a static analysis step on a subdomain. More...

#include <StaticDomainDecompositionAnalysis.h>

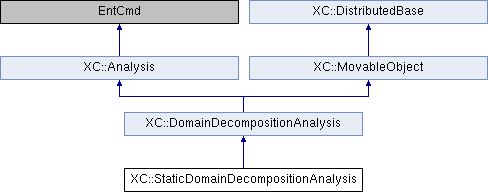

Inheritance diagram for XC::StaticDomainDecompositionAnalysis:

Public Member Functions
	~StaticDomainDecompositionAnalysis (void)
	Destructor.

void	clearAll (void)
	Clears object members (Constraint handler, analysis model,...).

int	initialize (void)

int	domainChanged (void)
	Hace los cambios que sean necesarios como consecuencia de un cambio en el domain.

int	analyze (double dT)
	Performs the analysis.

bool	doesIndependentAnalysis (void)

int	getNumExternalEqn (void)
	Returns the number of external equations.

int	getNumInternalEqn (void)
	Returns the number of equations internas.

int	newStep (double dT)
	??

int	computeInternalResponse (void)
	??

int	formTangent (void)
	Forma la tangent stiffness matrix.

int	formResidual (void)
	Forma el vector residuo.

int	formTangVectProduct (Vector &force)
	??

const Matrix &	getTangent (void)
	Return the tangent stiffness matrix.

const Vector &	getResidual (void)
	Returns the vector residuo.

const Vector &	getTangVectProduct (void)

int	setAlgorithm (EquiSolnAlgo &theAlgorithm)
	Sets the solution algorithm to use in the analysis.

int	setIntegrator (IncrementalIntegrator &theIntegrator)
	Sets the integrator to use in the analysis.

int	setLinearSOE (LinearSOE &theSOE)
	Sets the linear system of equations to use in the analysis.

int	sendSelf (CommParameters &)

int	recvSelf (const CommParameters &)

Public Member Functions inherited from XC::DomainDecompositionAnalysis
virtual const DomainSolver *	getDomainSolver (void) const
	Returns a pointer to the DomainSolver.

virtual DomainSolver *	getDomainSolver (void)
	Returns a pointer to the DomainSolver.

virtual const Subdomain *	getSubdomain (void) const
	Returns a pointer to the subdomain.

virtual Subdomain *	getSubdomain (void)
	Returns a pointer to the subdomain.

virtual int	setConvergenceTest (ConvergenceTest &theTest)
	Sets the convergence test to use in the analysis.

Public Member Functions inherited from XC::Analysis
SoluMethod *	getSoluMethodPtr (void)

Domain *	getDomainPtr (void)
	Returns a pointer to the domain.

const Domain *	getDomainPtr (void) const
	Returns a pointer to the domain.

ConstraintHandler *	getConstraintHandlerPtr (void)
	Returns a pointer to the gestor de coacciones.

DOF_Numberer *	getDOF_NumbererPtr (void) const
	Returns a pointer to the DOF numberer.

AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model.

LinearSOE *	getLinearSOEPtr (void) const
	Returns a pointer to the linear system of equations.

EigenSOE *	getEigenSOEPtr (void) const
	Returns a pointer to the system of equations de eigenvalues.

Integrator *	getIntegratorPtr (void)
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

const Integrator *	getIntegratorPtr (void) const
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

IncrementalIntegrator *	getIncrementalIntegratorPtr (void)
	Returns, if possible, a pointer al integrator incremental otherwise it returns nullptr.

EigenIntegrator *	getEigenIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

LinearBucklingIntegrator *	getLinearBucklingIntegratorPtr (void)
	Returns, if possible, a pointer al LinearBucklingIntegrator otherwise it returns nullptr.

TransientIntegrator *	getTransientIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

StaticIntegrator *	getStaticIntegratorPtr (void)
	Returns, if possible, a pointer al StaticIntegrator otherwise it returns nullptr.

SolutionAlgorithm *	getSolutionAlgorithmPtr (void)

EigenAlgorithm *	getEigenSolutionAlgorithmPtr (void)
	Return a pointer to the eigenproblem solution algorithm (if it's not defined it returns nullptr).

EquiSolnAlgo *	getEquiSolutionAlgorithmPtr (void)
	Return a pointer to the linear SOE solution algorithm (if it's not defined it returns nullptr).

DomainDecompAlgo *	getDomainDecompSolutionAlgorithmPtr (void)
	Return a pointer to the domain decomposition solution algorithm (if it's not defined it returns nullptr).

virtual ConvergenceTest *	getConvergenceTestPtr (void)
	Returns a pointer to the convergence test (only for suitable analysis).

virtual const ConvergenceTest *	getConvergenceTestPtr (void) const
	Returns a pointer to the convergence test (only for suitable analysis).

virtual int	setNumberer (DOF_Numberer &theNumberer)
	Sets the renumerador to use in the analysis.

virtual int	setEigenSOE (EigenSOE &theSOE)
	Sets the sistema de eigenvalues to use in the analysis.

virtual int	setIntegrator (Integrator &theNewIntegrator)
	Sets the integrator to use in the analysis.

virtual int	setAlgorithm (SolutionAlgorithm &theNewAlgorithm)
	Set the solution algorithm to be used in the analysis.

void	brokeConstraintHandler (const CommParameters &, const ID &)

void	brokeNumberer (const CommParameters &, const ID &)

void	brokeAnalysisModel (const CommParameters &, const ID &)

void	brokeDDLinearSOE (const CommParameters &, const ID &)

void	brokeLinearSOE (const CommParameters &, const ID &)

void	brokeIncrementalIntegrator (const CommParameters &, const ID &)

void	brokeStaticIntegrator (const CommParameters &, const ID &)

void	brokeTransientIntegrator (const CommParameters &, const ID &)

void	brokeDomainDecompAlgo (const CommParameters &, const ID &)

void	brokeEquiSolnAlgo (const CommParameters &, const ID &)

int	getAnalysisResult (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Friends
class	ProcSolu

Additional Inherited Members
Protected Member Functions inherited from XC::DomainDecompositionAnalysis
Subdomain *	getSubdomainPtr (void) const
	Returns a pointer to the subdomain.

void	set_all_links (void)
	Sets los pointers tol DomainDecompSolutionAlgorithm y al subdomain.

	DomainDecompositionAnalysis (Subdomain &theDomain, SoluMethod *s=nullptr)
	Constructor.

	DomainDecompositionAnalysis (Subdomain &theDomain, DomainSolver &theSolver, SoluMethod *s=nullptr)
	Constructor.

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, SoluMethod *s=nullptr)
	Constructor.

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, DomainSolver &theSolver, SoluMethod *s)
	Constructor.

Protected Member Functions inherited from XC::Analysis
int	newStepDomain (AnalysisModel *theModel, const double &dT=0.0)

ProcSolu *	getProcSolu (void)

const ProcSolu *	getProcSolu (void) const

	Analysis (SoluMethod *metodo)
	Constructor.

Protected Attributes inherited from XC::DomainDecompositionAnalysis
int	domainStamp

Protected Attributes inherited from XC::Analysis
int	analysis_result
	Equal to zero if success.

SoluMethod *	metodo_solu
	Solution method.

Detailed Description

StaticDomainDecompositionAnalysis is a subclass of DomainDecompositionAnalysis used to perform a static analysis step on a subdomain.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/solution/analysis/analysis/StaticDomainDecompositionAnalysis.h
/usr/local/src/prg/xc/src/solution/analysis/analysis/StaticDomainDecompositionAnalysis.cpp
