Single freedom constraints that make part of a load pattern. More...

#include <NodeLocker.h>

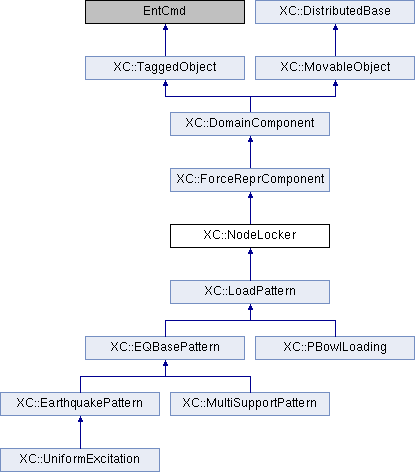

Inheritance diagram for XC::NodeLocker:

Public Member Functions
virtual	~NodeLocker (void)
	Destructor.

virtual void	setDomain (Domain *theDomain)
	Set the domain for the constraints.

virtual SFreedom_Constraint *	addSFreedom_Constraint (const int &tagNodo, const int &id_gdl, const double &valor)
	Adds the single freedom constraint being passed as parameter.

virtual SFreedom_ConstraintIter &	getSPs (void)
	Returns an iterator a las coacciones mononodales.

int	getNumSPs (void) const
	Returns the número de coacciones monopunto.

virtual void	clearAll (void)
	Deletes all constraints.

SFreedom_Constraint *	newSPConstraint (const int &, const int &, const double &)

virtual bool	removeSFreedom_Constraint (int tag)
	Elimina la coacción mononodal cuyo tag being passed as parameter.

virtual void	applyLoad (const double &pseudoTime=0.0, const double &factor=1.0)
	Aplica the load en el instante being passed as parameter.

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

virtual void	Print (std::ostream &s, int flag=0)
	Imprime el load pattern.

std::deque< int >	getTagsSPsNode (int theNode, int theDOF) const
	Returns the constraint that affect the node and DOF being passed as parameter. More...

std::deque< int >	getTagsSPsNode (int theNode) const
	Returns the constraint that affect the node being passed as parameter. More...

bool	nodeAffectedBySPs (int nodeTag) const
	Returns true if the single freedom constraints affect the node which identifier is being passed as parameter.

Public Member Functions inherited from XC::ForceReprComponent
	ForceReprComponent (int classTag)

	ForceReprComponent (int tag, int classTag)

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the domain.

const Preprocessor *	GetPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	GetPreprocessor (void)
	Returns (if possible) a pointer to the preprocessor.

void	set_indice (const size_t &i)
	Set the index for the object (see numera in Set). This index is used on VTK arrays.

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &cp)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives members through the channel being passed as parameter.

	NodeLocker (void)
	Default constructor.

	NodeLocker (int tag)
	Constructor.

	NodeLocker (int tag, int classTag)
	Constructor.

virtual bool	addSFreedom_Constraint (SFreedom_Constraint *theSp)
	Adds the single freedom constraint being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor.

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Protected Attributes
int	nextTag
	Default tag for next node locker.

int	currentGeoTag

int	lastGeoSendTag

TaggedObjectStorage *	theSPs
	Constraint container.

SingleDomSFreedom_Iter *	theSpIter
	Constraint iterator.

Friends
class	NodeLockers

class	FEM_ObjectBroker

Detailed Description

Single freedom constraints that make part of a load pattern.

Member Function Documentation

std::deque< int > XC::NodeLocker::getTagsSPsNode	(	int	theNode,
		int	theDOF
	)		const

Returns the constraint that affect the node and DOF being passed as parameter.

Parameters

theNode	node identifier.
theDOF	identifier or the degree of freedom.

std::deque< int > XC::NodeLocker::getTagsSPsNode ( int theNode ) const

Returns the constraint that affect the node being passed as parameter.

Parameters

theNode node identifier.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/load/pattern/NodeLocker.h
/usr/local/src/prg/xc/src/domain/load/pattern/NodeLocker.cc
