Multi-freedom constraint. Objectt of this class store the information for a multifreedom constraint. A multifreedom constraint relates certain dof at a constrained node to be related to certain dof at a retained node: {Uc} = [Ccr] {Ur}. More...

#include <MFreedom_Constraint.h>

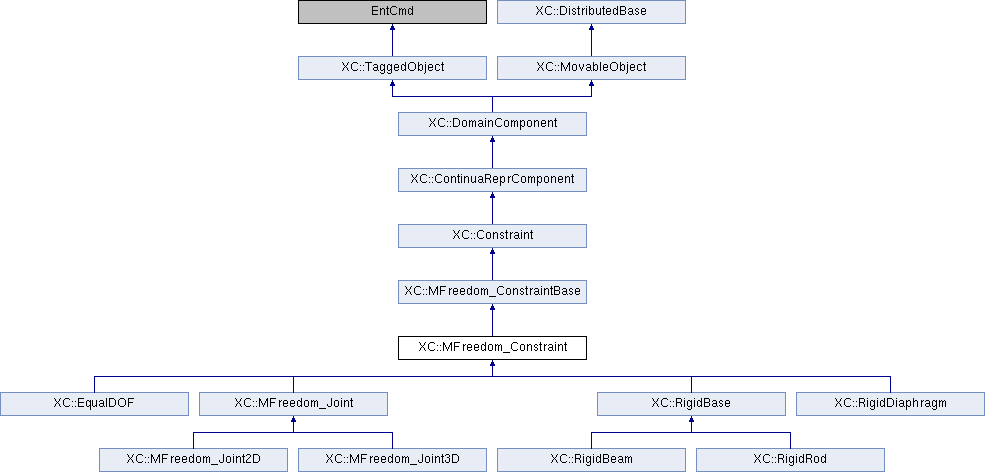

Inheritance diagram for XC::MFreedom_Constraint:

Public Member Functions
	MFreedom_Constraint (int tag, int classTag)
	! More...

	MFreedom_Constraint (int tag)
	Constructor. // LCPT.

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, int classTag)

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, const ID &constrainedDOF, const ID &retainedDOF)

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, const ID &constrainedDOF, const ID &retainedDOF, int classTag)

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, Matrix &constrnt, ID &constrainedDOF, ID &retainedDOF)
	Constructor. More...

virtual const int &	getNodeRetained (void) const
	Returns the tag of the retained (or master) node.

virtual int &	getNodeRetained (void)
	Returns the tag of the retained (or master) node.

virtual size_t	getNumRetainedNodes (void) const
	Returns the number of retained nodes.

std::vector< XC::Node * >	getPointersToRetainedNodes (void) const
	Returns a vector with the pointers to the retained nodes.

bool	affectsNode (int) const
	Returns true ifafecta to the node cuyo tag being passed as parameter.

virtual const ID &	getRetainedDOFs (void) const
	Returns the identifiers of the retained degrees of freedom.

virtual int	applyConstraint (double pseudoTime)
	Applies the constraint at the pseudo-time being passed as parameter.

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

int	getVtkCellType (void) const
	Interfaz con VTK.

int	getMEDCellType (void) const
	Interface with Salome MED format.

virtual void	Print (std::ostream &s, int flag=0)
	Printing.

Public Member Functions inherited from XC::MFreedom_ConstraintBase
	MFreedom_ConstraintBase (int tag, int classTag)
	Constructor. More...

	MFreedom_ConstraintBase (int tag, int nodeConstr, int classTag)
	Constructor to be called from subclasses. More...

	MFreedom_ConstraintBase (int tag, int nodeConstr, const ID &, int classTag)
	Constructor to be called from subclasses. More...

	MFreedom_ConstraintBase (int tag, int nodeConstr, const Matrix &, const ID &, int classTag)
	Constructor. More...

virtual const int &	getNodeConstrained (void) const

virtual int &	getNodeConstrained (void)

bool	affectsNode (int) const
	Returns true if the constraints affects the node identified by the tag being passed as parameter.

virtual const ID &	getConstrainedDOFs (void) const
	Returns the identifiers of the constrained degrees of fredom.

virtual const Matrix &	getConstraint (void) const
	Returns the constraint matrix.

bool	isTimeVarying (void) const
	Returns true if the constraint varies with time.

int	addResistingForceToNodalReaction (bool inclInertia)
	Add reactions to nodes.

Public Member Functions inherited from XC::Constraint
	Constraint (int classTag)
	Default constructor; receives the tag of the class as a paramenter. More...

	Constraint (int spTag, int nodeTag, int classTag)
	Constructor. More...

	~Constraint (void)
	Destructor.

void	setNodeTag (const int &nt)
	Sets the identifier of the node that will be constrained. More...

virtual int	getNodeTag (void) const
	Returns the identifier of the constrained node.

virtual const Node *	getNode (void) const
	Returns a pointer to the constrained node.

virtual int	getNodeIdx (void) const
	Returns an index for the node (used for VTK arrays).

void	setDomain (Domain *)
	Sets the domain for the constraint. More...

Public Member Functions inherited from XC::ContinuaReprComponent
	ContinuaReprComponent (int classTag)

	ContinuaReprComponent (int tag, int classTag)

virtual const bool	isDead (void) const

virtual const bool	isAlive (void) const

virtual void	kill (void)

virtual void	alive (void)

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the domain.

const Preprocessor *	GetPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	GetPreprocessor (void)
	Returns (if possible) a pointer to the preprocessor.

void	set_indice (const size_t &i)
	Set the index for the object (see numera in Set). This index is used on VTK arrays.

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	set_retained_dofs (const ID &)
	Sets the retained degrees of freedom.

void	set_constrained_retained_dofs (const ID &constrainedDOF, const ID &retainedDOF)
	Sets the retained and constrained degrees of freedom.

int	sendData (CommParameters &cp)
	Sends data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives data through the channel being passed as parameter.

Protected Member Functions inherited from XC::MFreedom_ConstraintBase
void	set_constraint (const Matrix &c)
	Set the constraint matrix.

void	set_constrained_dofs (const ID &)
	Set the constrained degrees of freedom. More...

int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::Constraint
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter. More...

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter. More...

Protected Member Functions inherited from XC::ContinuaReprComponent
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor.

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Protected Attributes
int	retainedNodeTag
	Tag of the retained node.

ID	retainDOF
	ID of retained DOF at retained node.

Protected Attributes inherited from XC::MFreedom_ConstraintBase
Matrix	constraintMatrix
	Constraint matrix.

ID	constrDOF
	ID of constrained DOF at constrained node.

Protected Attributes inherited from XC::Constraint
int	constrNodeTag
	constrained node tag

Detailed Description

Multi-freedom constraint. Objectt of this class store the information for a multifreedom constraint. A multifreedom constraint relates certain dof at a constrained node to be related to certain dof at a retained node: {Uc} = [Ccr] {Ur}.

The MFreedom_Constraint class assumes time invariant constraints, i.e. the constraint matrix does not change over time. All the methods are declared as pure virtual, which will allow subclasses for time varying constraints.

Constructor & Destructor Documentation

XC::MFreedom_Constraint::MFreedom_Constraint	(	int	tag,
		int	classTag
	)

!

Constructor. //Arash

XC::MFreedom_Constraint::MFreedom_Constraint	(	int	tag,
		int	nodeRetain,
		int	nodeConstr,
		int	classTag
	)

Constructor to be called from subclasses.

Parameters

tag	tag for the multi-freedom constraint.
nodeRetain	identifier of the retained node.
nodeConstr	identifier of the constrained node.
classTag	identifief for the class.

XC::MFreedom_Constraint::MFreedom_Constraint	(	int	tag,
		int	nodeRetain,
		int	nodeConstr,
		const ID &	constrainedDOF,
		const ID &	retainedDOF
	)

Constructor to be called from subclasses.

Parameters

tag	tag for the multi-freedom constraint.
nodeRetain	identifier of the retained node.
nodeConstr	identifier of the constrained node.
constrainedDOF	constrained degrees of freedom.
retainedDOF	retained degrees of freedom.

XC::MFreedom_Constraint::MFreedom_Constraint	(	int	tag,
		int	nodeRetain,
		int	nodeConstr,
		const ID &	constrainedDOF,
		const ID &	retainedDOF,
		int	classTag
	)

Constructor to be called from subclasses.

Parameters

tag	tag for the multi-freedom constraint.
nodeRetain	identifier of the retained node.
nodeConstr	identifier of the constrained node.
constrainedDOF	constrained degrees of freedom.
retainedDOF	retained degrees of freedom.
classTag	identifief for the class.

XC::MFreedom_Constraint::MFreedom_Constraint	(	int	tag,
		int	nodeRetain,
		int	nodeConstr,
		Matrix &	constr,
		ID &	constrainedDOF,
		ID &	retainedDOF
	)

Constructor.

Parameters

tag	tag for the multi-freedom constraint.
nodeRetain	identifier of the retained node.
nodeConstr	identifier of the constrained node.
constr	constraint matrix.
constrainedDOF	constrained degrees of freedom.
retainedDOF	retained degrees of freedom.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/constraints/MFreedom_Constraint.h
/usr/local/src/prg/xc/src/domain/constraints/MFreedom_Constraint.cpp
