Finite element creation. More...

#include <ProtoElementLoader.h>

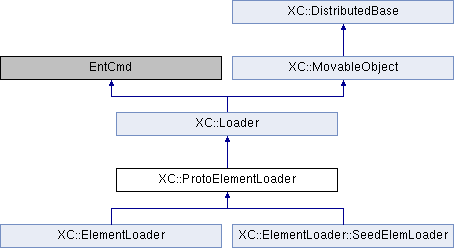

Inheritance diagram for XC::ProtoElementLoader:

Public Member Functions
	ProtoElementLoader (Preprocessor *preprocessor)
	Default constructor.

virtual int	getDefaultTag (void) const =0

void	setDefaultMaterial (const std::string &)
	Sets the default material name for new elements.

const std::string &	getDefaultMaterial (void) const
	Returns the default material name for new elements.

void	setNumSections (const int &)
	Default number of sections for new elements.

int	getNumSections (void) const
	Returns the default number of sections for new elements.

void	setDimElem (const int &)
	Sets the default dimension (0D,1D,2D or 3D) for new elements.

int	getDimElem (void) const
	Returns the default dimension (0D,1D,2D or 3D) for new elements.

void	setDefaultTransf (const std::string &)
	Sets the name of the default coordinate transformation for new elements.

const std::string &	getDefaultTransf (void) const
	Returns the name of the default coordinate transformation for new elements.

void	setDefaultIntegrator (const std::string &)
	Sets the name of the default integrator for new elements.

const std::string &	getDefaultIntegrator (void) const
	Returns the name of the default integrator for new elements.

Element *	newElement (const std::string &, const ID &)
	Create a new element. More...

Public Member Functions inherited from XC::Loader
	Loader (Preprocessor *owr)
	Default constructor.

Domain *	getDomain (void) const
	Returns the domain.

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual void	add (Element *)=0

MaterialLoader &	get_material_loader (void) const
	Returns a reference to the material handler.

MaterialLoader::const_iterator	get_iter_material (void) const
	Returns an iterator al material que se especifica en nmb_mat.

Material *	get_ptr_material (void) const
	Returns a pointer to material que se especifica en nmb_mat.

TransfCooLoader &	get_transf_coo_loader (void) const
	Returns a reference to the coordinate transformation loader.

TransfCooLoader::const_iterator	get_iter_transf_coo (void) const
	Returns an iterator to the coordinate transformation with the name being passed as parameter.

CrdTransf *	get_ptr_transf_coo (void) const
	Returns a pointer to the coordinate transformation with the name being passed as parameter (nullptr if not found).

BeamIntegratorLoader &	get_beam_integrator_loader (void) const
	Returns a reference to de integrator handler.

BeamIntegratorLoader::const_iterator	get_iter_beam_integrator (void) const
	Returns an iterator al integrator que se especifica en nmb_integ.

BeamIntegration *	get_ptr_beam_integrator (void) const
	Returns a pointer to integrator que se especifica en nmb_integ.

Protected Member Functions inherited from XC::Loader
void	set_preprocessor (Preprocessor *preprocessor)
	Assigns the preprocessor.

Friends
class	Preprocessor

Additional Inherited Members
Protected Attributes inherited from XC::Loader
Preprocessor *	preprocessor
	Pointer to preprocessor.

Detailed Description

Finite element creation.

This objetct allows the creation of finite element obbjets. It can be done directly (specifiying the finite element type, material, nodes,...) creating one element after another or you can specify a "seed element" that will be used by the meshing routines.

Member Function Documentation

XC::Element * XC::ProtoElementLoader::newElement	(	const std::string &	tipo,
		const ID &	iNodos
	)

Create a new element.

Parameters

tipo type of element. Available types:'truss','truss_section','corot_truss','corot_truss_section','muelle', 'spring', 'beam2d_02', 'beam2d_03', 'beam2d_04', 'beam3d_01', 'beam3d_02', 'elastic_beam2d', 'elastic_beam3d', 'beam_with_hinges_2d', 'beam_with_hinges_3d', 'nl_beam_column_2d', 'nl_beam_column_3d','force_beam_column_2d', 'force_beam_column_3d', 'shell_mitc4', ' shell_nl', 'quad4n', 'tri31', 'brick', 'zero_length', 'zero_length_contact_2d', 'zero_length_contact_3d', 'zero_length_section'.

iNodos nodes ID, e.g. xc.ID([1,2]) to create a linear element from node 1 to node 2.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/preprocessor/loaders/ProtoElementLoader.h
/usr/local/src/prg/xc/src/preprocessor/loaders/ProtoElementLoader.cc
