XC Open source finite element analysis program
|

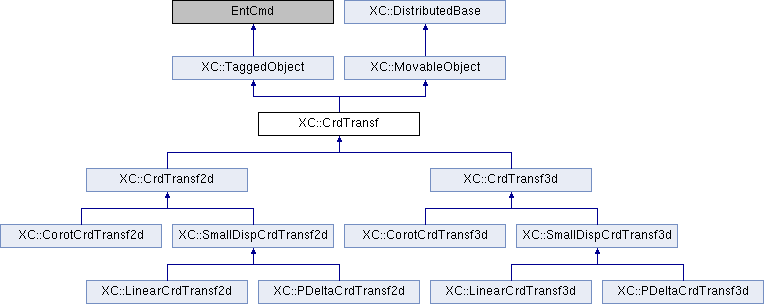

CrdTransf provides the abstraction of a frame coordinate transformation. It is an abstract base class and thus no objects of it's type can be instatiated. It has pure virtual functions which must be implemented in it's derived classes. More...
#include <CrdTransf.h>
Public Member Functions | |
| CrdTransf (int tag, int classTag, int dim_joint_offset) | |
| Constructor. | |
| virtual | ~CrdTransf (void) |
| Destructor virtual. | |
| const TransfCooLoader * | GetTransfCooLoader (void) const |
| Returns (if possible) a pointer to the coordinate transformation handler (owner). | |
| TransfCooLoader * | GetTransfCooLoader (void) |
| Returs a pointer to the coordinate transformation handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | initialize (Node *node1Pointer, Node *node2Pointer)=0 |
| virtual int | update (void)=0 |
| virtual double | getInitialLength (void) const =0 |
| virtual double | getDeformedLength (void) const =0 |
| double | getLength (bool initialGeometry=true) const |
| virtual int | commitState (void)=0 |
| virtual int | revertToLastCommit (void)=0 |
| virtual int | revertToStart (void)=0 |
| virtual const Vector & | getBasicTrialDisp (void) const =0 |
| virtual const Vector & | getBasicIncrDisp (void) const =0 |
| virtual const Vector & | getBasicIncrDeltaDisp (void) const =0 |
| virtual const Vector & | getBasicTrialVel (void) const =0 |
| virtual const Vector & | getBasicTrialAccel (void) const =0 |
| virtual const Vector & | getBasicDisplSensitivity (int gradNumber) |
| virtual const Vector & | getGlobalResistingForceShapeSensitivity (const Vector &basicForce, const Vector &uniformLoad) |
| virtual const Vector & | getBasicTrialDispShapeSensitivity (void) |
| virtual const Vector & | getGlobalResistingForce (const Vector &basicForce, const Vector &uniformLoad) const =0 |
| virtual const Matrix & | getGlobalStiffMatrix (const Matrix &basicStiff, const Vector &basicForce) const =0 |
| virtual const Matrix & | getInitialGlobalStiffMatrix (const Matrix &basicStiff) const =0 |
| virtual const Vector & | getI (void) const =0 |
| virtual const Vector & | getJ (void) const =0 |
| virtual Matrix | getLocalAxes (bool) const =0 |
| virtual const Vector & | getPointGlobalCoordFromLocal (const Vector &localCoords) const =0 |
| virtual const Vector & | getPointGlobalCoordFromBasic (const double &xi) const =0 |
| virtual Vector | getPointLocalCoordFromGlobal (const Vector &globalCoords) const =0 |
| double | getPointBasicCoordFromGlobal (const Vector &globalCoords) const |
| const Matrix & | getPointsGlobalCoordFromLocal (const Matrix &localCoords) const |
| virtual const Matrix & | getPointsGlobalCoordFromBasic (const Vector &) const =0 |
| virtual const Vector & | getPointGlobalDisplFromBasic (double xi, const Vector &basicDisps) const =0 |
| virtual const Vector & | getVectorGlobalCoordFromLocal (const Vector &localCoords) const =0 |
| virtual const Matrix & | getVectorGlobalCoordFromLocal (const Matrix &localCoords) const =0 |
| virtual const Vector & | getVectorLocalCoordFromGlobal (const Vector &globalCoords) const =0 |
| virtual const Matrix & | getCooNodos (void) const =0 |
| virtual const Matrix & | getCooPuntos (const size_t &ndiv) const =0 |
| virtual const Vector & | getCooPunto (const double &xrel) const =0 |
 Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, EntCmd *owr=nullptr) | |
| Constructor. | |
| virtual TaggedObject * | getCopy (void) const |
| Virtual constructor. | |
| void | assignTag (int newTag) |
| Establece el valor del tag. | |
| int | getTag (void) const |
| virtual void | Print (std::ostream &s, int flag=0) |
| Imprime el objeto. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. | |
| MovableObject (int classTag) | |
| Constructor. | |
| MovableObject (const MovableObject &otro) | |
| Copy constructor. | |
| MovableObject & | operator= (const MovableObject &otro) |
| Operacdor asignación. | |
| int | getClassTag (void) const |
| Returns the tag de la clase. | |
| int | getDbTag (void) const |
| Returns the tag para la database. | |
| int | getDbTag (CommParameters &) |
| Returns the tag para la database. | |
| void | setDbTag (int dbTag) |
| Asigna el tag para la database. | |
| void | setDbTag (CommParameters &) |
| Asigna, sólo si es preciso, el tag para la database. | |
| virtual int | sendSelf (CommParameters &)=0 |
| virtual int | recvSelf (const CommParameters &)=0 |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
| virtual int | updateParameter (int parameterID, Information &info) |
| virtual int | activateParameter (int parameterID) |
| virtual int | setVariable (const std::string &variable, Information &) |
| Returns the identificador de la variable cuyo nombre being passed as parameter. | |
| virtual int | getVariable (const std::string &variable, Information &) |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | set_node_ptrs (Node *nodeIPointer, Node *nodeJPointer) |
| Asigna los pointers to node dorsal y frontal. | |
| int | sendData (CommParameters &cp) |
| Sends object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel being passed as parameter. | |
| virtual void | set_rigid_joint_offsetI (const Vector &rigJntOffsetI)=0 |
| virtual void | set_rigid_joint_offsetJ (const Vector &rigJntOffsetJ)=0 |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Establece el valor del tag. | |
Protected Attributes | |
| Node * | nodeIPtr |
| Node * | nodeJPtr |
| pointers to los nodos extremos of the element. | |
| double | L |
| element length | |
| Vector | nodeIOffset |
| Vector | nodeJOffset |
| rigid joint offsets | |
| std::vector< double > | nodeIInitialDisp |
| Initial displacement for I node. | |
| std::vector< double > | nodeJInitialDisp |
| Initial displacement for J node. | |
| bool | initialDispChecked |
CrdTransf provides the abstraction of a frame coordinate transformation. It is an abstract base class and thus no objects of it's type can be instatiated. It has pure virtual functions which must be implemented in it's derived classes.
