XC::DOF_Group Class Reference

A DOF_Group object is instantiated by the ConstraintHandler for every unconstrained node in the domain. The constrained nodes require specialised types of DOF_Group; which deal with the constraints. DOF_Group objects can handle 0 boundary constraints; if the eqn number of a DOF is less than START_EQN_NUM a value of 0.0 is set for disp, vel and accel when a setNode*(Vector &) is invoked. More...

#include <DOF_Group.h>

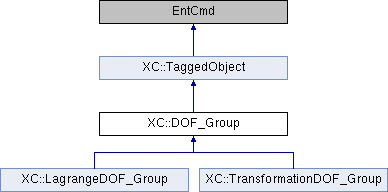

Inheritance diagram for XC::DOF_Group:

Public Member Functions
virtual void	setID (int dof, int value)
	to set the corresponding index of the ID to value.
virtual void	setID (const ID &values)
virtual const ID &	getID (void) const
	Method to return the current ID.
int	inicID (const int &value)
virtual int	getNodeTag (void) const
virtual int	getNumDOF (void) const
virtual int	getNumFreeDOF (void) const
virtual int	getNumConstrainedDOF (void) const
virtual const Matrix &	getTangent (Integrator *theIntegrator)
virtual void	zeroTangent (void)
virtual void	addMtoTang (double fact=1.0)
virtual void	addCtoTang (double fact=1.0)
virtual const Vector &	getUnbalance (Integrator *theIntegrator)
virtual void	zeroUnbalance (void)
virtual void	addPtoUnbalance (double fact=1.0)
virtual void	addPIncInertiaToUnbalance (double fact=1.0)
virtual void	addM_Force (const Vector &Udotdot, double fact=1.0)
virtual const Vector &	getTangForce (const Vector &x, double fact=1.0)
virtual const Vector &	getC_Force (const Vector &x, double fact=1.0)
virtual const Vector &	getM_Force (const Vector &x, double fact=1.0)
virtual const Vector &	getCommittedDisp (void)
virtual const Vector &	getCommittedVel (void)
virtual const Vector &	getCommittedAccel (void)
virtual void	setNodeDisp (const Vector &u)
virtual void	setNodeVel (const Vector &udot)
virtual void	setNodeAccel (const Vector &udotdot)
virtual void	incrNodeDisp (const Vector &u)
	Method to set the corresponding nodes displacements to the.
virtual void	incrNodeVel (const Vector &udot)
virtual void	incrNodeAccel (const Vector &udotdot)
virtual void	setEigenvector (int mode, const Vector &eigenvalue)
virtual Matrix *	getT (void)
virtual void	addM_ForceSensitivity (const Vector &Udotdot, double fact=1.0)
virtual void	addD_ForceSensitivity (const Vector &vel, double fact=1.0)
virtual void	addD_Force (const Vector &vel, double fact=1.0)
virtual const Vector &	getDispSensitivity (int gradNumber)
virtual const Vector &	getVelSensitivity (int gradNumber)
virtual const Vector &	getAccSensitivity (int gradNumber)
virtual int	saveSensitivity (Vector *v, Vector *vdot, Vector *vdotdot, int gradNum, int numGrads)
virtual void	Print (std::ostream &, int=0)
	Imprime el objeto.
virtual void	resetNodePtr (void)
Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.
virtual TaggedObject *	getCopy (void) const
	Virtual constructor.
void	assignTag (int newTag)
	Establece el valor del tag.
int	getTag (void) const

Protected Member Functions
void	addLocalM_Force (const Vector &Udotdot, double fact=1.0)
	DOF_Group (int tag, Node *myNode)
	DOF_Group (int tag, int ndof)
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Protected Attributes
UnbalAndTangent	unbalAndTangent
Node *	myNode

Friends
class	AnalysisModel

Detailed Description

A DOF_Group object is instantiated by the ConstraintHandler for every unconstrained node in the domain. The constrained nodes require specialised types of DOF_Group; which deal with the constraints. DOF_Group objects can handle 0 boundary constraints; if the eqn number of a DOF is less than START_EQN_NUM a value of 0.0 is set for disp, vel and accel when a setNode*(Vector &) is invoked.

---

The documentation for this class was generated from the following files:

• /usr/local/src/prg/xc/src/solution/analysis/model/dof_grp/DOF_Group.h
• /usr/local/src/prg/xc/src/solution/analysis/model/dof_grp/DOF_Group.cpp
