Six-faced body. More...

#include <Block.h>

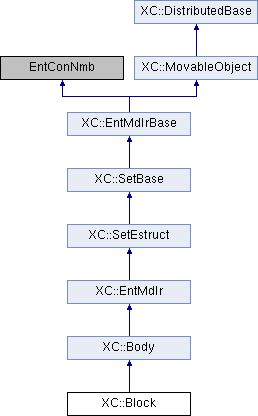

Inheritance diagram for XC::Block:

Public Member Functions
	Block (Preprocessor *m, const std::string &nombre="")
	Constructor.

SetEstruct *	getCopy (void) const
	Virtual constructor.

virtual size_t	NumLineas (void) const
	Returns the number of lines of the object. More...

virtual size_t	NumVertices (void) const
	Return the number of vertices.

virtual size_t	NumFaces (void) const
	Return the number of faces.

void	actualiza_topologia (void)
	Update topology of the enclosing surface (neighbors).

virtual std::set< const Face * >	getSurfaces (void)
	Return the surfaces that close the solid.

const BodyFace *	GetFace (const size_t &i) const
	Return the face with the index passed as parameter.

const CmbEdge::Lado *	GetArista (const size_t &i) const
	Return the i-th edge of the solid.

Pnt *	GetVertice (const size_t &i)
	Return the i-th vertex of the solid.

const Pnt *	GetVertice (const size_t &i) const
	Return the i-th vertex of the solid.

int	getVtkCellType (void) const
	Interface with VTK.

int	getMEDCellType (void) const
	Interface with MED format of Salome.

size_t	NDivI (void) const
	Return the number of divisions along the edge 1->2.

size_t	NDivJ (void) const
	Return the number of divisions along the edge 2->3.

size_t	NDivK (void) const
	Return the number of divisions along the edge 1->5.

bool	checkNDivs (void) const
	Check that number of divisions of the lines are compatible.

void	create_nodes (void)
	Create nodes for the block.

void	genMesh (meshing_dir dm)
	Trigger mesh generation.

Public Member Functions inherited from XC::Body
	Body (Preprocessor *m, const std::string &nombre="")
	Constructor.

virtual unsigned short int	GetDimension (void) const
	Return the object dimension.

std::vector< int >	getIndicesVertices (void) const
	Return indices of the vertices.

virtual BND3d	Bnd (void) const
	Returns object BND.

std::set< SetBase * >	get_sets (void) const
	Return the sets to wich the body belongs.

void	add_to_sets (std::set< SetBase * > &)
	Add the body to the set passed as parameter.

Public Member Functions inherited from XC::EntMdlr
	EntMdlr (Preprocessor *m, const size_t &i=0)
	Constructor.

	EntMdlr (const std::string &nombre="", const size_t &i=0, Preprocessor *m=nullptr)
	Constructor. More...

	EntMdlr (const EntMdlr &otro)
	Copy constructor.

EntMdlr &	operator= (const EntMdlr &otro)
	Assignment operator.

virtual void	set_indice (const size_t &i)
	Assigns the objects index for its use in VTK arrays(see numera in Set).

size_t	getIdx (void) const
	Returns the index of the object for it use in VTK arrays.

bool	TieneNodos (void) const

virtual size_t	getNumNodeLayers (void) const

virtual size_t	getNumNodeRows (void) const

virtual size_t	getNumNodeColumns (void) const

virtual size_t	getNumElementLayers (void) const

virtual size_t	getNumElementRows (void) const

virtual size_t	getNumElementColumns (void) const

virtual Node *	GetNodo (const size_t &i=1, const size_t &j=1, const size_t &k=1)
	Returns a pointer to the node which indexes are being passed as parameters.

virtual const Node *	GetNodo (const size_t &i=1, const size_t &j=1, const size_t &k=1) const
	Returns a pointer to the node which indexes are being passed as parameters.

Node *	getNearestNode (const Pos3d &p)
	Returns the node closest to the point being passed as parameter.

const Node *	getNearestNode (const Pos3d &p) const
	Returns the node closest to the point being passed as parameter.

ID	getNodeIndices (const Node *) const
	Returns the indexes of the node being passed as parameter.

virtual Element *	getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1)
	Returns a pointer to the element which indexes are being passed as paremeters.

virtual const Element *	getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) const
	Returns a pointer to the element which indices are being passed as paremeters.

Node *	buscaNodo (const int &tag)
	Returns a pointer to the node cuyo identificador is being passed as parameter.

const Node *	buscaNodo (const int &tag) const
	Returns a pointer to the node cuyo identificador is being passed as parameter.

std::vector< int >	getTagsNodos (void) const
	Returns the tags of the nodes.

Element *	findElement (const int &)
	Returns a pointer to the element identified by the tag being passed as parameter.

const Element *	findElement (const int &) const
	Returns a pointer to the element identified by the tag being passed as parameter.

Element *	getNearestElement (const Pos3d &p)
	Returns the element closest to the point being passed as parameter.

const Element *	getNearestElement (const Pos3d &p) const
	Returns the element closest to the point being passed as parameter.

TritrizPtrNod &	getTtzNodes (void)

const TritrizPtrNod &	getTtzNodes (void) const

TritrizPtrElem &	getTtzElements (void)

const TritrizPtrElem &	getTtzElements (void) const

SetFilaI	GetVarRefFilaI (size_t f=1, size_t c=1, const std::string &nmb="tmp")

SetFilaI	GetVarRefFilaI (const RangoIndice &rango_capas, size_t f, size_t c, const std::string &nmb="tmp")

SetFilaI	GetVarRefFilaI (const RangoTritriz &rango, const std::string &nmb="tmp")

SetFilaJ	GetVarRefFilaJ (size_t capa=1, size_t c=1, const std::string &nmb="tmp")

SetFilaJ	GetVarRefFilaJ (size_t capa, const RangoIndice &rango_filas, size_t c, const std::string &nmb="tmp")

SetFilaJ	GetVarRefFilaJ (const RangoTritriz &rango, const std::string &nmb="tmp")

SetFilaK	GetVarRefFilaK (size_t capa=1, size_t f=1, const std::string &nmb="tmp")

SetFilaK	GetVarRefFilaK (size_t capa, size_t f, const RangoIndice &rango_cols, const std::string &nmb="tmp")

SetFilaK	GetVarRefFilaK (const RangoTritriz &rango, const std::string &nmb="tmp")

void	fix (const SFreedom_Constraint &)
	Fixes the nodes of the set.

void	setGenMesh (bool m)
	Returns true if the points begins or ends in the line.

const bool &	getGenMesh (void) const
	Returns true if the points begins or ends in the line.

virtual double	DistanciaA2 (const Pos3d &pt) const
	Returns the squared distance to the position being passed as parameter.

virtual double	DistanciaA (const Pos3d &pt) const
	Returns the distance to the position being passed as parameter.

Vector	getSimpsonWeights (const std::string &, const std::string &, const size_t &f=1, const size_t &c=1, const size_t &n=10) const
	Return Simpson's weights.

void	BorraPtrNodElem (void)
	Clears pointer to nodes and elements.

virtual	~EntMdlr (void)
	Destructor.

Public Member Functions inherited from XC::SetEstruct
	SetEstruct (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

	SetEstruct (const SetEstruct &otro)
	Copy constructor.

SetEstruct &	operator= (const SetEstruct &otro)
	Assignment operator.

size_t	getNumberOfNodes (void) const

size_t	getNumberOfElements (void) const

bool	In (const Node *) const
	Returns true if the nodo belongs to the set.

bool	In (const Element *) const
	Returns true if the element belongs to the set.

bool	EsFilaI (void) const
	Returns true if only the I index varies.

bool	EsFilaJ (void) const
	Returns true if only the J index varies.

bool	EsFilaK (void) const
	Returns true if only the K index varies.

bool	EsCapaICte (void) const
	Returns true if only J and K indices varies.

bool	EsCapaJCte (void) const
	Returns true if only J and K indices varies.

bool	EsCapaKCte (void) const
	Returns true if only I and J indices varies.

size_t	Dimension (void) const
	Return the dimension of the range (0,1,2 or 3). Zero if the range is empty, 1 if there is more than one layer, 2 if there are more than one row and three if there are more than one column.

std::string	GetStrTipo (void) const
	Returns the set type filaI, filaJ, filaK, capaICte,...

Node *	getNodeI (const size_t &i)

Node *	getNodeIJ (const size_t &i, const size_t &j)

Node *	getNodeIJK (const size_t &i, const size_t &j, const size_t &k)

Element *	getElementI (const size_t &i)

Element *	getElementIJ (const size_t &i, const size_t &j)

Element *	getElementIJK (const size_t &i, const size_t &j, const size_t &k)

std::set< int >	getNodeTags (void) const
	Returns the tags of the nodes.

boost::python::list	getNodes (void)

std::set< int >	getElementTags (void) const
	Returns the tags of the elements.

boost::python::list	getElements (void)

ElementEdges	getElementEdges (void)
	Returns the element edges with both end nodes belong to the nodes of the set.

Public Member Functions inherited from XC::SetBase
	SetBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

const ID &	getIdNodeTags (void) const
	Returns the tags of the nodes en un vector de enteros.

const ID &	getIdElementTags (void) const
	Returns the tags of the elements en un vector de enteros.

virtual bool	In (const Pnt *) const
	Returns true if the point belongs to the set.

virtual bool	In (const Edge *) const
	Returns true if the edge belongs to the set.

virtual bool	In (const Face *) const
	Returns true if the surface belongs to the set.

virtual bool	In (const Body *) const
	Returns true if the body belongs to the set.

virtual bool	In (const UniformGrid *) const
	Returns true if the «uniform grid» belongs to the set.

void	resetTributarias (void) const
	Reset tributary areas (or lengths, or volumes) for the nodes that are connected to the set elements.

void	calculaLongsTributarias (bool initialGeometry=true) const
	Calcula las longitudes tributarias correspondientes a cada nodo of the elements of the set.

void	calculaAreasTributarias (bool initialGeometry=true) const
	Calcula las áreas tributarias correspondientes a cada nodo of the elements of the set.

void	calculaVolsTributarios (bool initialGeometry=true) const
	Calcula los volúmenes tributarios correspondientes a cada nodo of the elements of the set.

Public Member Functions inherited from XC::EntMdlrBase
	EntMdlrBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

	EntMdlrBase (const EntMdlrBase &otro)
	Copy constructor.

EntMdlrBase &	operator= (const EntMdlrBase &otro)
	Assignment operator.

const Preprocessor *	GetPreprocessor (void) const

Preprocessor *	GetPreprocessor (void)

size_t	GetTag (void) const
	Return the object identifier in the model (tag).

Pnt *	BuscaPnt (const size_t &)
	Return a pointer to the point identified by the tag being passed as parameter.

const Pnt *	BuscaPnt (const size_t &) const
	Return a const pointer to the point identified by the tag being passed as parameter.

Edge *	BuscaEdge (const size_t &)
	Return a pointer to the edge identified by the tag being passed as parameter.

const Edge *	BuscaEdge (const size_t &) const
	Return a pointer to the edge identified by the tag being passed as parameter.

Face *	BuscaFace (const size_t &)
	Return a pointer to the face identified by the tag being passed as parameter.

const Face *	BuscaFace (const size_t &) const
	Returns a pointer to the face identified by the tag being passed as parameter.

virtual int	sendSelf (CommParameters &)
	Send objects through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receive objects through the channel being passed as parameter.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	inserta (const size_t &)
	Insert the surface with the identifier passed as parameter (if found).

void	add_caras (const std::vector< size_t > &)
	Create and insert the faces from the indices passed as parameter.

void	create_nodes_caras (void)
	Trigger the creation of nodes on faces.

TritrizPos3d	get_posiciones (void) const
	Return (ndivI+1)(ndivJ+1)(ndivK+1) positions for the nodes. More...

virtual BodyFace *	GetFace (const size_t &i)
	Return the face with the index passed as parameter.

Protected Member Functions inherited from XC::Body
void	set_surf (Face *s)
	Unpdate topology of the surface passed as parameter (inserts neighbor).

Protected Member Functions inherited from XC::EntMdlr
void	create_nodes (const TritrizPos3d &)
	Creates nodes at the positions being passed as parameters.

Node *	create_node (const Pos3d &pos, size_t i=1, size_t j=1, size_t k=1)
	Creates a node at the position being passed as parameter.

bool	create_elements (meshing_dir dm)
	Creates elements on the nodes created in create_nodes.

Pnt *	create_point (const Pos3d &)
	Creates a point at the position being passed as parameter.

void	create_points (const MatrizPos3d &)
	Creates points at the positions being passed as parameters.

SetEstruct *	create_set_fila (const RangoTritriz &, const std::string &)
	Creates a set that corresponds to a row of nodes and elements.

void	clearAll (void)
	Clears object contents.

Protected Member Functions inherited from XC::SetEstruct
void	add_elements (const TritrizPtrElem &)
	Adds to the model the elements being passed as parameters.

NodePtrSet	getNodePtrSet (void)
	Returns the pointers to the set nodes.

Protected Member Functions inherited from XC::EntMdlrBase
const Preprocessor *	get_preprocessor (void) const
	Return a pointer to the preprocessor.

Preprocessor *	get_preprocessor (void)
	Return a pointer to the preprocessor.

bool	check_preprocessor (void) const
	Check for preprocessor.

int	sendIdsEtiquetas (const int &, const int &, CommParameters &)
	Send labels through the channel being passed as parameter.

int	recvIdsEtiquetas (const int &, const int &, const CommParameters &)
	Receive labels through the channel being passed as parameter.

int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive members through the channel being passed as parameter.

Additional Inherited Members
Protected Attributes inherited from XC::EntMdlr
TritrizPtrNod	ttzNodes

TritrizPtrElem	ttzElements

Protected Attributes inherited from XC::EntMdlrBase
LabelContainer	labels
	Label container.

Detailed Description

Six-faced body.

Member Function Documentation

TritrizPos3d XC::Block::get_posiciones ( void ) const

protected

Return (ndivI+1)*(ndivJ+1)*(ndivK+1) positions for the nodes.

The returned 3D-matrix of points is organized as follows:

The point (0,1,1) (layer,row,column) corresponds to vertex 1.
The layer index ranges from 0 for face 1 to ncapas for face 6.
The row index ranges from 1 for face 5 to nfilas for face 3.
The column index rangess from 1 for face 2 to ncol for face 4.

So:

Edge 1 has indices (0,j=1..nfil,1)
Edge 2 has indices (0,nfil,k=1..ncol)
Edge 3 has indices (0,j=1..nfil,ncol)
Edge 4 has indices (0,1,k=1..ncol) - Edge 5 has indices (i=0..ncapas,1,1)
Edge 6 has indices (i=0..ncapas,nfil,1)
Edge 7 has indices (i=0..ncapas,nfil,ncol)
Edge 8 has indices (i=0..ncapas,1,ncol) - Edge 9 has indices (ncapas,j=1..nfil,1)
Edge 10 has indices (ncapas,nfil,k=1..ncol)
Edge 11 has indices (ncapas,j=1..nfil,ncol)
Edge 12 has indices (ncapas,1,k=1..ncol)

size_t XC::Block::NumLineas ( void ) const

virtual

Returns the number of lines of the object.

Return the number of edges.

Implements XC::Body.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/preprocessor/cad/entidades/Block.h
/usr/local/src/prg/xc/src/preprocessor/cad/entidades/Block.cc
