Base class for prescribed displacements at the nodes. More...

#include <ImposedMotionBase.h>

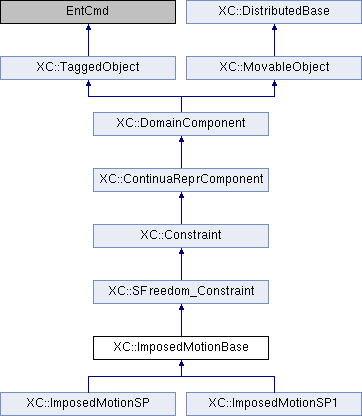

Inheritance diagram for XC::ImposedMotionBase:

Public Member Functions
	ImposedMotionBase (int classTag)
	Constructor. More...

	ImposedMotionBase (int classTag, int spTag, int nodeTag, int ndof, int patternTag, int theGroundMotionTag)
	Constructor. More...

	~ImposedMotionBase (void)
	Destructor.

void	setDomain (Domain *theDomain)
	Sets the domain of the constraint.

double	getValue (void) const
	Returns the prescribed value.

bool	isHomogeneous (void) const
	Returns true if the prescribed value is zero.

int	getMotion (void)
	Gets the constraint motion.

int	sendData (CommParameters &cp)
	Sends object members through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives object through the channel being passed as parameter.

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Public Member Functions inherited from XC::SFreedom_Constraint
	SFreedom_Constraint (int classTag)
	Default constructor.

	SFreedom_Constraint (int spTag, int nodeTag)
	Constructor. More...

	SFreedom_Constraint (int spTag, int nodeTag, int ndof, int classTag)
	Constructor. More...

	SFreedom_Constraint (int spTag, int nodeTag, int ndof, double value, bool isConstant=true)
	Constructor. More...

virtual SFreedom_Constraint *	getCopy (void) const
	Virtual constructor.

SFreedom_Constraint *	getCopy (const int &) const
	Returns a copy of the contraint with a different tag, it's used in ConstraintLoader::addSFreedom_Constraint(nodeTag,seed).

virtual int	getDOF_Number (void) const
	Returns the constrained DOF number.

virtual int	applyConstraint (double loadFactor)
	Applies the constraint with the load factor being passed as parameter.

virtual void	setLoadPatternTag (int loadPaternTag)
	Sets the load pattern tag for the constraint. More...

virtual int	getLoadPatternTag (void) const
	Returns the load pattern tag of the constraint. More...

int	getVtkCellType (void) const
	Returns the cell type to be used to represent the object in VTK graphics.

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

virtual void	Print (std::ostream &s, int flag=0)
	Prints constraint information.

Public Member Functions inherited from XC::Constraint
	Constraint (int classTag)
	Default constructor; receives the tag of the class as a paramenter. More...

	Constraint (int spTag, int nodeTag, int classTag)
	Constructor. More...

	~Constraint (void)
	Destructor.

void	setNodeTag (const int &nt)
	Sets the identifier of the node that will be constrained. More...

virtual int	getNodeTag (void) const
	Returns the identifier of the constrained node.

virtual const Node *	getNode (void) const
	Returns a pointer to the constrained node.

virtual int	getNodeIdx (void) const
	Returns an index for the node (used for VTK arrays).

virtual int	getMEDCellType (void) const
	returns the "MED fichier" cell type.

Public Member Functions inherited from XC::ContinuaReprComponent
	ContinuaReprComponent (int classTag)

	ContinuaReprComponent (int tag, int classTag)

virtual const bool	isDead (void) const

virtual const bool	isAlive (void) const

virtual void	kill (void)

virtual void	alive (void)

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the domain.

const Preprocessor *	GetPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	GetPreprocessor (void)
	Returns (if possible) a pointer to the preprocessor.

void	set_indice (const size_t &i)
	Set the index for the object (see numera in Set). This index is used on VTK arrays.

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Attributes
GroundMotion *	theGroundMotion

Node *	theNode
	pointer to node being constrained

Vector	theGroundMotionResponse

Protected Attributes inherited from XC::SFreedom_Constraint
int	dofNumber
	identifies which of the nodes dof is constrained

double	valueR
	the reference value

double	valueC
	if constant = the reference value, if not constant = the reference value * load factor

bool	isConstant
	flag indicating if constant

int	loadPatternTag

Protected Attributes inherited from XC::Constraint
int	constrNodeTag
	constrained node tag

Additional Inherited Members
Protected Member Functions inherited from XC::SFreedom_Constraint
DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &cp)
	Sends data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives data through the channel being passed as parameter.

Protected Member Functions inherited from XC::Constraint
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter. More...

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter. More...

Protected Member Functions inherited from XC::ContinuaReprComponent
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor.

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Detailed Description

Base class for prescribed displacements at the nodes.

Constructor & Destructor Documentation

XC::ImposedMotionBase::ImposedMotionBase ( int classTag )

Constructor.

Parameters

classTag tag of the object class.

XC::ImposedMotionBase::ImposedMotionBase	(	int	classTag,
		int	tag,
		int	node,
		int	ndof,
		int	pattern,
		int	motion
	)

Constructor.

Parameters

classTag	tag of the object class.
tag	tag for the multi-freedom constraint.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/constraints/ImposedMotionBase.h
/usr/local/src/prg/xc/src/domain/constraints/ImposedMotionBase.cc
