#include <HingeBeamIntegration3d.h>

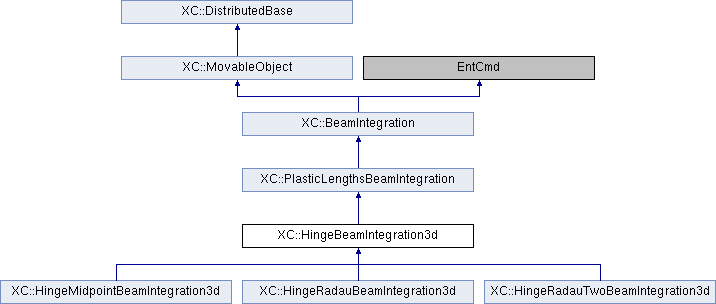

Inheritance diagram for XC::HingeBeamIntegration3d:

Public Member Functions
	HingeBeamIntegration3d (int classTag, double E, double A, double Iz, double Iy, double G, double J, double lpI, double lpJ)

	HingeBeamIntegration3d (int classTag, const CrossSectionProperties3d &cts=CrossSectionProperties3d(), const double &lpi=0.0, const double &lpj=0.0)

void	addElasticDeformations (ElementalLoad *theLoad, double loadFactor, double L, FVector &v0)

int	setParameter (const std::vector< std::string > &argv, Parameter &param)

int	updateParameter (int parameterID, Information &info)

int	activateParameter (int parameterID)

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.

Public Member Functions inherited from XC::PlasticLengthsBeamIntegration
	PlasticLengthsBeamIntegration (int classTag, double lpI, double lpJ)

	PlasticLengthsBeamIntegration (int classTag)

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

void	Print (std::ostream &, int)

Public Member Functions inherited from XC::BeamIntegration
	BeamIntegration (int classTag)

virtual void	getSectionLocations (int nIP, double L, double *xi) const =0

virtual void	getSectionWeights (int nIP, double L, double *wt) const =0

const Matrix &	getIntegrPointCoords (int nIP, double L) const
	Returns the coordenadas normalizadas (entre 0 y 1).

const Matrix &	getIntegrPointNaturalCoords (int nIP, double L) const
	Returns the coordenadas naturales (entre -1 y 1) a partir de las normalizadas.

const Matrix &	getIntegrPointLocalCoords (int nIP, double L) const
	Returns the coordenadas locales (entre 0 y L) a partir de las normalizadas.

const Matrix &	getIntegrPointNaturalCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the natural coordinates for each integration point.

const Matrix &	getIntegrPointNormalizedCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the normalized coordinates for each integration point.

const Matrix &	getIntegrPointLocalCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the local coordinates for each integration point.

const Matrix &	getIntegrPointGlobalCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the global coordinates for each integration point.

const Vector &	evalInIntegrPoints (const ExprAlgebra &expr, int nIP, const CrdTransf &trf) const
	Returns the values of the expresion being pased as parameter on each integration point.

double	getIntegral (const ExprAlgebra &expr, int nIP, const CrdTransf &trf) const
	Returns the integral of the expresion.

virtual int	addElasticFlexibility (double L, Matrix &fe)

virtual double	getTangentDriftI (double L, double LI, double q2, double q3, bool yAxis=false)

virtual double	getTangentDriftJ (double L, double LI, double q2, double q3, bool yAxis=false)

virtual BeamIntegration *	getCopy (void) const =0

virtual void	getLocationsDeriv (int nIP, double L, double dLdh, double *dptsdh)

virtual void	getWeightsDeriv (int nIP, double L, double dLdh, double *dwtsdh)

virtual int	addElasticFlexDeriv (double L, Matrix &dfedh, double dLdh=0.0)

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.

Protected Member Functions inherited from XC::PlasticLengthsBeamIntegration
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Attributes
CrossSectionProperties3d	ctes_scc
	Mechanical properties of the section E,A,Iy,...

Protected Attributes inherited from XC::PlasticLengthsBeamIntegration
double	lpI

double	lpJ

Detailed Description

??.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/mesh/element/truss_beam_column/forceBeamColumn/beam_integration/HingeBeamIntegration3d.h
/usr/local/src/prg/xc/src/domain/mesh/element/truss_beam_column/forceBeamColumn/beam_integration/HingeBeamIntegration3d.cc
