Base class for penalty and Lagrange constraints handlers. More...

#include <FactorsConstraintHandler.h>

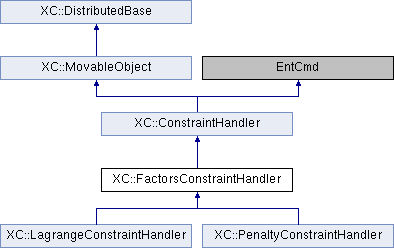

Inheritance diagram for XC::FactorsConstraintHandler:

Public Member Functions
void	setAlphaSP (const double &a)
	Set the factor used with single freedom constraints.

double	getAlphaSP (void) const
	Return the factor used with single freedom constraints.

void	setAlphaMP (const double &a)
	Set the factor used with multi-freedom constraints.

double	getAlphaMP (void) const
	Return the factor used with multi-freedom constraints.

virtual int	sendSelf (CommParameters &)
	Send object through the channel passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receive object through the channel passed as parameter.

Public Member Functions inherited from XC::ConstraintHandler
virtual int	handle (const ID *nodesNumberedLast=0)=0

virtual int	update (void)
	Update the state of the constraints.

virtual int	applyLoad (void)
	??

virtual int	doneNumberingDOF (void)
	Numbering of degrees of freedom.

virtual void	clearAll (void)
	Reset the DOF_Group pointers to nullptr for all the nodes.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send object members through the channel passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel passed as parameter.

	FactorsConstraintHandler (ModelWrapper *, int classTag, const double &alphaSP, const double &alphaMP)
	Constructor. More...

Protected Member Functions inherited from XC::ConstraintHandler
const Domain *	getDomainPtr (void) const
	Return a const pointer to the domain object associated with the ConstraintHandler.

const AnalysisModel *	getAnalysisModelPtr (void) const
	Return a const pointer to the analysis model object associated with the ConstraintHandler.

const Integrator *	getIntegratorPtr (void) const
	Return a pointer to the Integrator object associated with the ConstraintHandler.

Domain *	getDomainPtr (void)
	Return a pointer to the Domain object associated with the ConstraintHandler.

AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the AnalysisModel object associated with the ConstraintHandler.

Integrator *	getIntegratorPtr (void)
	Returns a pointer to the Integrator object associated with the ConstraintHandler.

int	sendData (CommParameters &)
	Send object members through the channel passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel passed as parameter.

	ConstraintHandler (ModelWrapper *, int classTag)
	Constructor. More...

virtual ConstraintHandler *	getCopy (void) const =0

Protected Attributes
double	alphaSP
	Factor used with the single freedom constraints.

double	alphaMP
	Factor used with the multi-freedom constraints.

Detailed Description

Base class for penalty and Lagrange constraints handlers.

Constructor & Destructor Documentation

XC::FactorsConstraintHandler::FactorsConstraintHandler	(	ModelWrapper *	owr,
		int	classTag,
		const double &	sp,
		const double &	mp
	)

protected

Constructor.

Parameters

owr	pointer to the model wrapper that owns the handler.
classTag	identifier of the class.
sp	factor to be used with the single freedom constraints.
mp	factor to be used with the multi-freedom constraints.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/solution/analysis/handler/FactorsConstraintHandler.h
/usr/local/src/prg/xc/src/solution/analysis/handler/FactorsConstraintHandler.cc
