XC::CrdTransf3d Class Referenceabstract
Domain for the finite element problem. » Finite element mesh. » Finite elements. » Utilities for finite element calculations. » Element coordinate transformations.

Base class for 3D coordinate transformation. More...

#include <CrdTransf3d.h>

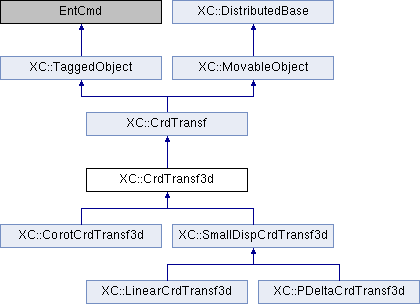

Inheritance diagram for XC::CrdTransf3d:
XC::CrdTransf XC::TaggedObject XC::MovableObject XC::DistributedBase XC::CorotCrdTransf3d XC::SmallDispCrdTransf3d XC::LinearCrdTransf3d XC::PDeltaCrdTransf3d

Public Member Functions

 CrdTransf3d (int tag, int classTag)
 Default constructor.

 CrdTransf3d (int tag, int classTag, const Vector &vecInLocXZPlane)
 Constructor:

virtual CrdTransf3d * getCopy (void) const =0
 Virtual constructor.

int initialize (Node *node1Pointer, Node *node2Pointer)

virtual void set_xz_vector (const Vector &vecInLocXZPlane)
 Asigna el valor del vector contenido en el plano XZ local.

Vector get_xz_vector (void) const
 Returns the vector contenido en el plano XZ local.

const Vector & getI (void) const
 Returns the ${i}$ unit vector of the local axis expressed in global coordinates for the current geometry.

const Vector & getJ (void) const
 Returns the ${j}$ unit vector of the local axis expressed in global coordinates for the current geometry.

const Vector & getK (void) const
 Returns the ${k}$ unit vector of the local axis expressed in global coordinates for the current geometry.

Matrix getLocalAxes (bool) const
 Returs a matrix with the axes of the element as matrix rows [[x1,y1,z1],[x2,y2,z2],...·].

int getLocalAxes (Vector &xAxis, Vector &yAxis, Vector &zAxis) const

Pos3d getPosNodeI (void) const
 Returns the position of node I.

Pos3d getPosNodeJ (void) const
 Return the position of node J.

Ref3d3d getLocalReference (void) const
 Returns the local reference system.

Vector getPointLocalCoordFromGlobal (const Vector &xg) const
 Returns the local coordinates del punto a partir de las globales.

const Vector & getPointGlobalCoordFromBasic (const double &xi) const
 Returns the punto expresado en global coordinates.

const Matrix & getPointsGlobalCoordFromBasic (const Vector &) const
 Returns the puntos expresados en global coordinates.

const Vector & getVectorGlobalCoordFromLocal (const Vector &localCoords) const
 Returns the vector expressed in global coordinates.

const Matrix & getVectorGlobalCoordFromLocal (const Matrix &localCoords) const
 Returns the vectores formados por las filas de la matriz expresados en global coordinates y colocados en otra matriz.

const Vector & getVectorLocalCoordFromGlobal (const Vector &globalCoords) const
 Returns the vector expresado en local coordinates.

const Matrix & getCooNodos (void) const
 Returns the coordinates of the nodes.

const Matrix & getCooPuntos (const size_t &ndiv) const
 Returns puntos distribuidos entre los nodos extremos.

const Vector & getCooPunto (const double &xrel) const
 Returns the punto correspondiente a la coordenada 0<=xrel<=1.

void gira (const double &)
 Hace girar el la coordinate transformation en sentido antihorario el ángulo being passed as parameter.

- Public Member Functions inherited from XC::CrdTransf
 CrdTransf (int tag, int classTag, int dim_joint_offset)
 Constructor.

virtual ~CrdTransf (void)
 Destructor virtual.

const TransfCooLoader * GetTransfCooLoader (void) const
 Returns (if possible) a pointer to the coordinate transformation handler (owner).

TransfCooLoader * GetTransfCooLoader (void)
 Returs a pointer to the coordinate transformation handler (if possible).

std::string getName (void) const
 Returns the name of the material.

virtual int update (void)=0

virtual double getInitialLength (void) const =0

virtual double getDeformedLength (void) const =0

double getLength (bool initialGeometry=true) const

virtual int commitState (void)=0

virtual int revertToLastCommit (void)=0

virtual int revertToStart (void)=0

virtual const Vector & getBasicTrialDisp (void) const =0

virtual const Vector & getBasicIncrDisp (void) const =0

virtual const Vector & getBasicIncrDeltaDisp (void) const =0

virtual const Vector & getBasicTrialVel (void) const =0

virtual const Vector & getBasicTrialAccel (void) const =0

virtual const Vector & getBasicDisplSensitivity (int gradNumber)

virtual const Vector & getGlobalResistingForceShapeSensitivity (const Vector &basicForce, const Vector &uniformLoad)

virtual const Vector & getBasicTrialDispShapeSensitivity (void)

virtual const Vector & getGlobalResistingForce (const Vector &basicForce, const Vector &uniformLoad) const =0

virtual const Matrix & getGlobalStiffMatrix (const Matrix &basicStiff, const Vector &basicForce) const =0

virtual const Matrix & getInitialGlobalStiffMatrix (const Matrix &basicStiff) const =0

virtual const Vector & getPointGlobalCoordFromLocal (const Vector &localCoords) const =0

double getPointBasicCoordFromGlobal (const Vector &globalCoords) const

const Matrix & getPointsGlobalCoordFromLocal (const Matrix &localCoords) const

virtual const Vector & getPointGlobalDisplFromBasic (double xi, const Vector &basicDisps) const =0

- Public Member Functions inherited from XC::TaggedObject
 TaggedObject (int tag, EntCmd *owr=nullptr)
 Constructor.

void assignTag (int newTag)
 Establece el valor del tag.

int getTag (void) const

virtual void Print (std::ostream &s, int flag=0)
 Imprime el objeto.

- Public Member Functions inherited from XC::MovableObject
 MovableObject (int classTag, int dbTag)
 Constructor.

 MovableObject (int classTag)
 Constructor.

 MovableObject (const MovableObject &otro)
 Copy constructor.

MovableObject & operator= (const MovableObject &otro)
 Operacdor asignación.

int getClassTag (void) const
 Returns the tag de la clase.

int getDbTag (void) const
 Returns the tag para la database.

int getDbTag (CommParameters &)
 Returns the tag para la database.

void setDbTag (int dbTag)
 Asigna el tag para la database.

void setDbTag (CommParameters &)
 Asigna, sólo si es preciso, el tag para la database.

virtual int sendSelf (CommParameters &)=0

virtual int recvSelf (const CommParameters &)=0

virtual int setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int updateParameter (int parameterID, Information &info)

virtual int activateParameter (int parameterID)

virtual int setVariable (const std::string &variable, Information &)
 Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int getVariable (const std::string &variable, Information &)

- Public Member Functions inherited from XC::DistributedBase
 DistributedBase (void)
 Constructor.

virtual DbTagData & getDbTagData (void) const
 Returns a vector to store class dbTags.

const int & getDbTagDataPos (const int &i) const
 Returns the data at the i-th position.

void setDbTagDataPos (const int &i, const int &v)
 Sets the data at the i-th position.

void inicComm (const int &dataSize) const
 Initializes communication.


Protected Member Functions

void set_rigid_joint_offsetI (const Vector &rigJntOffsetI)
 check rigid joint offset for node I

void set_rigid_joint_offsetJ (const Vector &rigJntOffsetJ)
 check rigid joint offset for node J

void modif_ug_init_disp (double *ug) const

void global_to_local (const double *ug, double *ul) const
 Returns node displacements expressed in local coordinates.

void calc_Wu (const double *ug, double *ul, double *Wu) const

const Vector & calc_ub (const double *ul, Vector &) const

virtual int computeElemtLengthAndOrient (void) const =0

virtual int calculaEjesLocales (void) const =0

int sendData (CommParameters &cp)
 Sends object members through the channel being passed as parameter.

int recvData (const CommParameters &cp)
 Receives object members through the channel being passed as parameter.

- Protected Member Functions inherited from XC::CrdTransf
int set_node_ptrs (Node *nodeIPointer, Node *nodeJPointer)
 Asigna los pointers to node dorsal y frontal.

int sendData (CommParameters &cp)
 Sends object members through the channel being passed as parameter.

int recvData (const CommParameters &cp)
 Receives object members through the channel being passed as parameter.

- Protected Member Functions inherited from XC::TaggedObject
void setTag (int newTag)
 Establece el valor del tag.


Static Protected Member Functions

static void inic_ug (const Vector &d1, const Vector &d2, double *ug)
 brief Rellena el vector de desplazamiento globales of the nodes.


Protected Attributes

Matrix R
 Transformation matrix.

- Protected Attributes inherited from XC::CrdTransf
Node * nodeIPtr

Node * nodeJPtr
 pointers to los nodos extremos of the element.

double L
 element length

Vector nodeIOffset

Vector nodeJOffset
 rigid joint offsets

std::vector< double > nodeIInitialDisp
 Initial displacement for I node.

std::vector< double > nodeJInitialDisp
 Initial displacement for J node.

bool initialDispChecked


Static Protected Attributes

static Vector vectorI

static Vector vectorJ

static Vector vectorK

static Vector vectorCoo


Detailed Description

Base class for 3D coordinate transformation.

Member Function Documentation

const XC::Vector & XC::CrdTransf3d::calc_ub ( const double *  ul,
Vector &  ub
) const
protected

Sean dx1,dy1,dz1,gx1,gy1,gz1 los desplazamientos y giros del nodo dorsal y dx2,dy2,dz2,gx2,gy2,gz2 los del nodo frontal expresados en local coordinates. This function gets the following displacements on the ul parameter and returns the following magnitudes on the ub vector: -ub(0)= dx2-dx1: element elongation. -ub(1)= (dy1-dy2)/L+gz1: rotation of node 1 about z axis. -ub(2)= (dy1-dy2)/L+gz2: rotation of node 2 about z axis. -ub(3)= (dz2-dz1)/L+gy1: rotation of node 1 about y axis. -ub(4)= (dz2-dz1)/L+gy2: rotation of node 2 about y axis. -ub(5)= dx2-dx1: element torsion.

void XC::CrdTransf3d::modif_ug_init_disp ( double *  ug) const
protected

brief Modifical el vector de desplazamiento globales of the nodes de acuerdo con los desplazamientos iniciales.

The documentation for this class was generated from the following files:
