2D yield surface evolution. More...

#include <YS_Evolution2D.h>

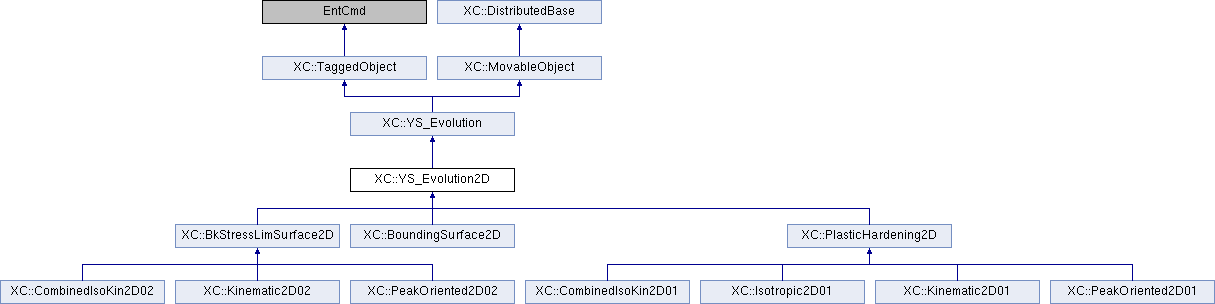

Inheritance diagram for XC::YS_Evolution2D:

Public Member Functions
	YS_Evolution2D (int tag, int classTag, double min_iso_factor, double iso_ratio, double kin_ratio)

virtual void	Print (std::ostream &s, int flag=0)=0
	Imprime el objeto.

virtual YS_Evolution *	getCopy (void)=0

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &info)

virtual int	getResponse (int responseID, Information &info)

virtual int	update (int flag)

virtual int	sendSelf (CommParameters &)

virtual int	recvSelf (const CommParameters &)

virtual int	commitState ()

virtual int	revertToLastCommit (void)

virtual const Vector &	getEquiPlasticStiffness (void)=0

virtual int	evolveSurface (YieldSurface_BC *ys, double magPlasticDefo, Vector &G, Vector &F_Surface, int flag=0)

Public Member Functions inherited from XC::YS_Evolution
	YS_Evolution (int tag, int classTag, double iso_ratio, double kin_ratio, int _dimension, double shr_iso=0.5, double shr_kin=0.5)

virtual double	getTrialPlasticStrains (int dof)=0

virtual double	getCommitPlasticStrains (int dof)=0

const Vector &	getGeneralizedStress (void) const

const Vector &	getGeneralizedStrain (void) const

virtual void	setResidual (double res=1.0)

void	setInitTranslation (Vector &initTranslate)

const Vector &	getInitTranslation (void)

double	getCommitTranslation (int dof)

double	getTrialTranslation (int dof)

double	getTrialIsotropicFactor (int dof)

double	getCommitIsotropicFactor (int dof)

void	setDeformable (bool defo)

void	toDeformedCoord (double &x)

void	toDeformedCoord (double &x, double &y)

void	toDeformedCoord (double &x, double &y, double &z)

void	toOriginalCoord (double &x)

void	toOriginalCoord (double &x, double &y)

void	toOriginalCoord (double &x, double &y, double &z)

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual void	setTrialPlasticStrains (double ep, const Vector &f, const Vector &g)=0

virtual double	getIsoPlasticStiffness (int dir)=0

virtual double	getKinPlasticStiffness (int dir)=0

virtual Vector &	getEvolDirection (Vector &f_new)=0

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Protected Attributes
bool	softening

double	minIsoFactor

YieldSurface_BC *	tmpYSPtr

Protected Attributes inherited from XC::YS_Evolution
bool	deformable

Vector	isotropicFactor_hist

Vector	isotropicFactor

Vector	translate_hist

Vector	translate

Vector	translate_init

double	isotropicRatio_orig

double	isotropicRatio

double	isotropicRatio_shrink

double	kinematicRatio_orig

double	kinematicRatio

double	kinematicRatio_shrink

int	dimension

Static Protected Attributes
static Vector	v2

Static Protected Attributes inherited from XC::YS_Evolution
static Vector	crd1

static Vector	crd2

static Vector	crd3

Additional Inherited Members
Public Attributes inherited from XC::YS_Evolution
bool	freezeEvolution

Detailed Description

2D yield surface evolution.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/material/yieldSurface/evolution/YS_Evolution2D.h
/usr/local/src/prg/xc/src/material/yieldSurface/evolution/YS_Evolution2D.cpp
