Yield surface. More...

#include <YieldSurface_BC.h>

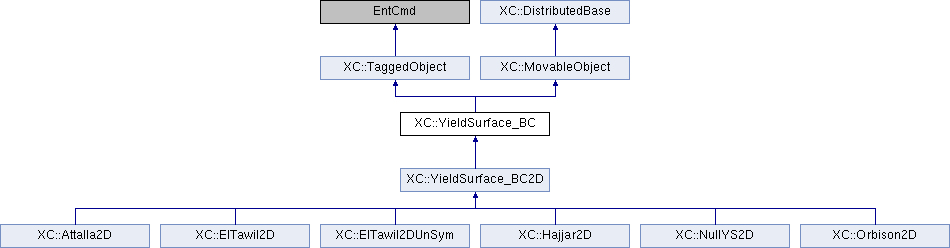

Inheritance diagram for XC::YieldSurface_BC:

Public Member Functions
	YieldSurface_BC (int tag, int classtag, YS_Evolution &model, double capx)

	YieldSurface_BC (int tag, int classtag, YS_Evolution &model, double capx, double capy)

	YieldSurface_BC (int tag, int classtag, YS_Evolution &model, double capx, double capy, double capz)

virtual void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.

void	setEleInfo (int eleTag, int loc)

virtual void	setTransformation (int xDof, int xFact)

virtual void	setTransformation (int xDof, int yDof, int xFact, int yFact)

virtual void	setTransformation (int xDof, int yDof, int zDof, int xFact, int yFact, int zFact)

virtual void	getCommitGradient (Matrix &G)=0

virtual void	getTrialGradient (Matrix &G, Vector &force)=0

virtual double	getTrialDrift (Vector &force)=0

virtual const Vector &	getExtent (void)=0

virtual int	update (int flag=0)

double	getCap (int dir)

virtual Vector &	translationTo (Vector &f_new, Vector &f_dir)=0

virtual int	getState (int stateInfo)=0

virtual double	getDrift (double x1)

virtual double	getDrift (double x1, double y1)

virtual double	getDrift (double x1, double y1, double z1)

virtual double	interpolate (double x1, double x2)

virtual double	interpolate (double x1, double y1, double x2, double y2)

virtual double	interpolate (double x1, double y1, double z1, double x2, double y2, double z2)

virtual int	getTrialForceLocation (Vector &force)=0

virtual int	getCommitForceLocation ()=0

virtual void	addPlasticStiffness (Matrix &K)=0

virtual double	setToSurface (Vector &force, int algoType, int flag=0)=0

virtual int	modifySurface (double magPlasticDefo, Vector &Fsurface, Matrix &G, int flag=0)=0

virtual int	commitState (Vector &force)

virtual int	revertToLastCommit (void)=0

virtual YieldSurface_BC *	getCopy (void)=0

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	sendSelf (CommParameters &)=0

virtual int	recvSelf (const CommParameters &)=0

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Public Attributes
YS_Evolution *	hModel

int	ele_Tag

int	ele_Location

Static Public Attributes
static const int	dFReturn

static const int	RadialReturn

static const int	ConstantXReturn

static const int	ConstantYReturn

static const int	NoFP

static const int	SurfOnly

static const int	StateLoading

Protected Member Functions
void	toLocalSystem (Vector &eleVector, double &x, bool nonDimensionalize, bool signMult=true)

void	toLocalSystem (Vector &eleVector, double &x, double &y, bool nonDimensionalize, bool signMult=true)

void	toLocalSystem (Vector &eleVector, double &x, double &y, double &z, bool nonDimensionalize, bool signMult=true)

void	toLocalSystem (Matrix &eleMatrix, double &x, bool nonDimensionalize, bool signMult=true)

void	toLocalSystem (Matrix &eleMatrix, double &x, double &y, bool nonDimensionalize, bool signMult=true)

void	toLocalSystem (Matrix &eleMatrix, double &x, double &y, double &z, bool nonDimensionalize, bool signMult=true)

void	toElementSystem (Vector &eleVector, double &x, bool dimensionalize, bool signMult=true)

void	toElementSystem (Vector &eleVector, double &x, double &y, bool dimensionalize, bool signMult=true)

void	toElementSystem (Vector &eleVector, double &x, double &y, double &z, bool dimensionalize, bool signMult=true)

void	toElementSystem (Matrix &eleMatrix, double &x, bool dimensionalize, bool signMult=true)

void	toElementSystem (Matrix &eleMatrix, double &x, double &y, bool dimensionalize, bool signMult=true)

void	toElementSystem (Matrix &eleMatrix, double &x, double &y, double &z, bool dimensionalize, bool signMult=true)

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Protected Attributes
ID *	T

ID *	S

double	capX_orig

double	capY_orig

double	capZ_orig

double	capX

double	capY

double	capZ

double	capXdim

double	capYdim

double	capZdim

int	dimension

bool	isLoading

Detailed Description

Yield surface.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/material/yieldSurface/yieldSurfaceBC/YieldSurface_BC.h
/usr/local/src/prg/xc/src/material/yieldSurface/yieldSurfaceBC/YieldSurface_BC.cpp
