Base class for Steel01 and Steel03. More...

#include <SteelBase0103.h>

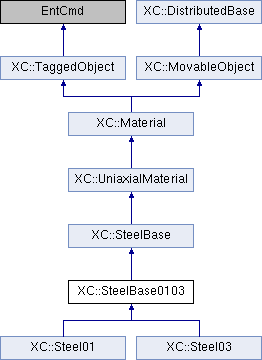

Inheritance diagram for XC::SteelBase0103:

Public Member Functions
	SteelBase0103 (int tag, int classTag, double fy, double E0, double b, double a1=STEEL_0103_DEFAULT_A1, double a2=STEEL_0103_DEFAULT_A2, double a3=STEEL_0103_DEFAULT_A3, double a4=STEEL_0103_DEFAULT_A4)
	Constructor.

	SteelBase0103 (int tag, int classTag)
	Constructor.

	SteelBase0103 (int classTag)
	Constructor.

int	setTrialStrain (double strain, double strainRate=0.0)

int	setTrial (double strain, double &stress, double &tangent, double strainRate=0.0)

double	getStrain (void) const

double	getStress (void) const

double	getTangent (void) const

int	commitState (void)

int	revertToLastCommit (void)
	Reset material to last committed state.

int	revertToStart (void)

void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.

Public Member Functions inherited from XC::SteelBase
	SteelBase (int tag, int classTag, const double &fy, const double &e0, const double &b, const double &a1, const double &a2, const double &a3, const double &a4)
	Constructor.

	SteelBase (int tag, int classTag)

void	setInitialTangent (const double &)
	Assigns intial Young's modulus.

double	getInitialTangent (void) const
	Returns intial Young's modulus.

void	setFy (const double &)
	Assigns yield stress.

double	getFy (void) const
	Returns yield stress.

void	setHardeningRatio (const double &d)

double	getHardeningRatio (void) const

double	getEsh (void) const

double	getEpsy (void) const

Public Member Functions inherited from XC::UniaxialMaterial
	UniaxialMaterial (int tag, int classTag)
	Constructor.

virtual int	setInitialStrain (double strain)
	Sets the initial strain value.

virtual double	getInitialStrain (void) const
	Return the initial strain.

virtual double	getStrainRate (void) const
	default operation for strain rate is zero

const Vector &	getGeneralizedStress (void) const
	Return the generalized stress.

const Vector &	getGeneralizedStrain (void) const
	Return the generalized strain.

virtual void	setInitialGeneralizedStrain (const Vector &)
	Sets the initial generalized strain to the value being passed as parameter.

const Vector &	getInitialGeneralizedStrain (void) const

virtual double	getDampTangent (void) const
	default operation for damping tangent is zero

virtual double	getSecant (void) const
	default operation for secant stiffness

virtual double	getFlexibility (void) const
	Return the inverse of stiffness matrix.

virtual double	getInitialFlexibility (void) const
	Return the inverse of stiffness matrix inicial.

virtual double	getRho (void) const
	Return the material density.

void	setRho (const double &)
	Assigns la material density.

virtual UniaxialMaterial *	getCopy (void) const =0
	Virtual constructor.

virtual UniaxialMaterial *	getCopy (SectionForceDeformation *s) const
	Virtual constructor.

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &matInformation)

virtual int	getResponse (int responseID, Information &matInformation)
	Returns material response.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual double	getStressSensitivity (int gradNumber, bool conditional)

virtual double	getStrainSensitivity (int gradNumber)

virtual double	getInitialTangentSensitivity (int gradNumber)

virtual double	getDampTangentSensitivity (int gradNumber)

virtual double	getRhoSensitivity (int gradNumber)

virtual int	commitSensitivity (double strainGradient, int gradNumber, int numGrads)

Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor.

const MaterialLoader *	GetMaterialLoader (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialLoader *	GetMaterialLoader (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters.

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	sendSelf (CommParameters &)=0

virtual int	recvSelf (const CommParameters &)=0

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual void	determineTrialState (double dStrain)=0

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

virtual int	setup_parameters (void)
	Sets all history and state variables to initial values.

Protected Member Functions inherited from XC::SteelBase
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::UniaxialMaterial
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Protected Attributes
double	CminStrain
	Minimum strain in compression.

double	CmaxStrain
	Maximum strain in tension.

double	CshiftP
	Shift in hysteresis loop for positive loading.

double	CshiftN
	Shift in hysteresis loop for negative loading.

int	Cloading
	Flag for loading/unloading.

double	Cstrain

double	Cstress

double	Ctangent

double	Tstrain

double	Tstress

double	Ttangent

double	TminStrain

double	TmaxStrain

double	TshiftP

double	TshiftN

int	Tloading

Protected Attributes inherited from XC::SteelBase
double	fy
	Yield stress.

double	E0
	Initial stiffness.

double	b
	Hardening ratio (b = Esh/E0)

double	a1
	coefficient for isotropic hardening in compression

double	a2
	coefficient for isotropic hardening in compression

double	a3
	coefficient for isotropic hardening in tension

double	a4
	coefficient for isotropic hardening in tension

Detailed Description

Base class for Steel01 and Steel03.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/material/uniaxial/steel/SteelBase0103.h
/usr/local/src/prg/xc/src/material/uniaxial/steel/SteelBase0103.cc
