XC::SectionForceDeformation Class Referenceabstract

Base class for force deformation section models. Constitutive equations of the section. More...

#include <SectionForceDeformation.h>

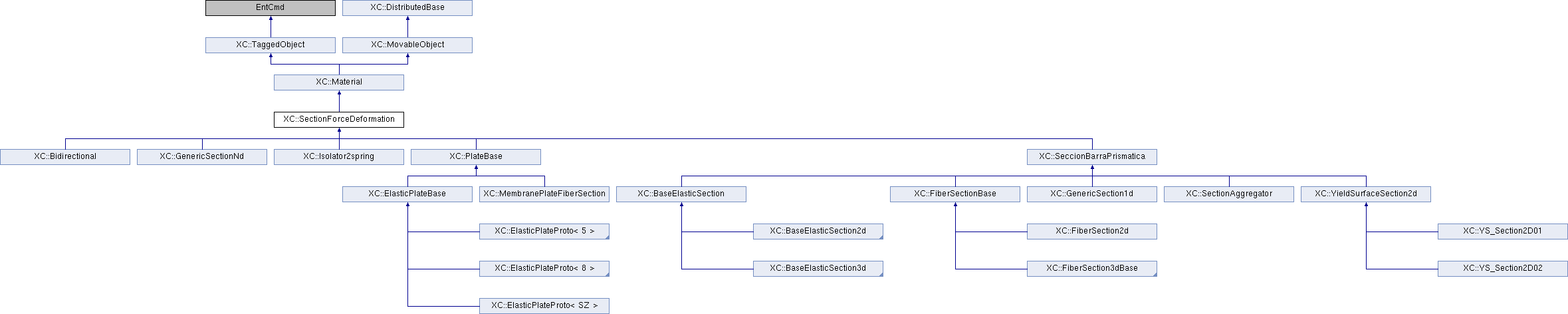

Inheritance diagram for XC::SectionForceDeformation:
XC::Material XC::TaggedObject XC::MovableObject XC::DistributedBase XC::Bidirectional XC::GenericSectionNd XC::Isolator2spring XC::PlateBase XC::SeccionBarraPrismatica XC::ElasticPlateBase XC::MembranePlateFiberSection XC::BaseElasticSection XC::FiberSectionBase XC::GenericSection1d XC::SectionAggregator XC::YieldSurfaceSection2d XC::ElasticPlateProto< 5 > XC::ElasticPlateProto< 8 > XC::ElasticPlateProto< SZ > XC::BaseElasticSection2d XC::BaseElasticSection3d XC::FiberSection2d XC::FiberSection3dBase XC::YS_Section2D01 XC::YS_Section2D02

Public Member Functions

 SectionForceDeformation (int tag, int classTag, MaterialLoader *mat_ldr=nullptr)
 Constructor.

 SectionForceDeformation (const SectionForceDeformation &otro)
 Copy constructor.

SectionForceDeformationoperator= (const SectionForceDeformation &otro)
 Assignment operator.

MaterialLoadergetMaterialLoader (void)

virtual void zeroInitialSectionDeformation (void)=0

virtual int setInitialSectionDeformation (const Vector &)=0

virtual int addInitialSectionDeformation (const Vector &)
 Adds to the generalized strains vector inicial el being passed as parameter.

void setInitialGeneralizedStrain (const Vector &iS)

const VectorgetInitialGeneralizedStrain (void) const

virtual int setTrialSectionDeformation (const Vector &)=0

virtual const VectorgetInitialSectionDeformation (void) const =0

virtual const VectorgetSectionDeformation (void) const =0

double getSectionDeformation (const int &) const
 Returns 'defID' component of the generalized strain vector.

double getSectionDeformationByName (const std::string &) const
 Returns section's trial deformation component by its name.

virtual double getStrain (const double &y, const double &z=0) const =0

virtual const VectorgetStressResultant (void) const =0

double getStressResultant (const int &) const
 Returns 'defID' component of the generalized stress vector.

double getStressResultantByName (const std::string &) const
 Returns the esfuerzos de la placa.

virtual const MatrixgetSectionTangent (void) const =0

virtual const MatrixgetInitialTangent (void) const =0

virtual const MatrixgetSectionFlexibility (void) const
 Returns the tangent flexibility matrix of the section.

virtual const MatrixgetInitialFlexibility (void) const
 Returns the initial flexibility matrix of the section.

const VectorgetGeneralizedStress (void) const

virtual const VectorgetGeneralizedStrain (void) const

virtual double getRho (void) const
 Returns the densidad (masa por unidad de longitud/area/volumen) of the section.

virtual SectionForceDeformationgetCopy (void) const =0
 Virtual constructor.

virtual const ResponseIdgetType (void) const =0

std::string getTypeString (void) const
 Comma separated internal forces names to with the section contributes with stiffness.

virtual int getOrder (void) const =0

virtual ResponsesetResponse (const std::vector< std::string > &argv, Information &info)
 Returns the respuesta of the section.

virtual int getResponse (int responseID, Information &info)
 Returns section response.

virtual int setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int updateParameter (int parameterID, Information &info)

virtual int activateParameter (int parameterID)

virtual const VectorgetStressResultantSensitivity (int gradNumber, bool conditional)

virtual const VectorgetSectionDeformationSensitivity (int gradNumber)

virtual const MatrixgetSectionTangentSensitivity (int gradNumber)

virtual double getRhoSensitivity (int gradNumber)

virtual int commitSensitivity (const Vector &sectionDeformationGradient, int gradNumber, int numGrads)

- Public Member Functions inherited from XC::Material
 Material (int tag, int classTag)
 Constructor.

const MaterialLoaderGetMaterialLoader (void) const
 Returns (if possible) a pointer to the material handler (owner).

MaterialLoaderGetMaterialLoader (void)
 Returs a pointer to the material handler (if possible).

std::string getName (void) const
 Returns the name of the material.

virtual int setVariable (const std::string &argv)

virtual int getVariable (int variableID, double &info)

virtual void update (void)
 Update state variables for the material according to the new values of the parameters.

virtual void addInitialGeneralizedStrain (const Vector &)
 Increments generalized strain. More...

virtual void zeroInitialGeneralizedStrain (void)
 zeroes initial generalized strain

virtual int commitState (void)=0

virtual int revertToLastCommit (void)=0

virtual int revertToStart (void)=0

- Public Member Functions inherited from XC::TaggedObject
 TaggedObject (int tag, EntCmd *owr=nullptr)
 Constructor.

void assignTag (int newTag)
 Establece el valor del tag.

int getTag (void) const

virtual void Print (std::ostream &s, int flag=0)
 Imprime el objeto.

- Public Member Functions inherited from XC::MovableObject
 MovableObject (int classTag, int dbTag)
 Constructor.

 MovableObject (int classTag)
 Constructor.

 MovableObject (const MovableObject &otro)
 Copy constructor.

MovableObjectoperator= (const MovableObject &otro)
 Operacdor asignación.

int getClassTag (void) const
 Returns the tag de la clase.

int getDbTag (void) const
 Returns the tag para la database.

int getDbTag (CommParameters &)
 Returns the tag para la database.

void setDbTag (int dbTag)
 Asigna el tag para la database.

void setDbTag (CommParameters &)
 Asigna, sólo si es preciso, el tag para la database.

virtual int sendSelf (CommParameters &)=0

virtual int recvSelf (const CommParameters &)=0

virtual int setVariable (const std::string &variable, Information &)
 Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int getVariable (const std::string &variable, Information &)

- Public Member Functions inherited from XC::DistributedBase
 DistributedBase (void)
 Constructor.

virtual DbTagDatagetDbTagData (void) const
 Returns a vector to store class dbTags.

const int & getDbTagDataPos (const int &i) const
 Returns the data at the i-th position.

void setDbTagDataPos (const int &i, const int &v)
 Sets the data at the i-th position.

void inicComm (const int &dataSize) const
 Initializes communication.


Protected Member Functions

int sendData (CommParameters &cp)
 Send object members through the channel defined in cp.

int recvData (const CommParameters &cp)
 Receives object members through the channel defined in cp.

- Protected Member Functions inherited from XC::TaggedObject
void setTag (int newTag)
 Establece el valor del tag.


Protected Attributes

MatrixfDefault
 Default flexibility matrix.

MaterialLoadermaterial_loader
 Material definition handler (search,...).


Detailed Description

Base class for force deformation section models. Constitutive equations of the section.


The documentation for this class was generated from the following files:
