XC::SetMeshComp Class Reference

Set of mesh components (nodes, elements and constraints). More...

#include <SetMeshComp.h>

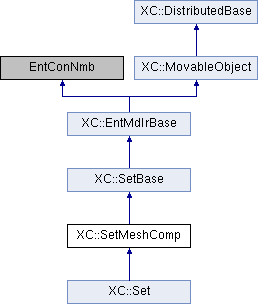

Inheritance diagram for XC::SetMeshComp:

Public Types
typedef DqPtrsNode::iterator	nod_iterator
	Iterator over the node set.
typedef DqPtrsNode::const_iterator	nod_const_iterator
	Iterator over the node set.
typedef DqPtrsElem::iterator	elem_iterator
	Iterator over the element set.
typedef DqPtrsElem::const_iterator	elem_const_iterator
	Iterator over the element set.
typedef DqPtrsConstraint	lst_ptr_constraints
	Set of constraints.
typedef DqPtrsConstraint::iterator	constraint_iterator
	Iterator over the set de constraints.
typedef DqPtrsConstraint::const_iterator	constraint_const_iterator
	Iterator over the set de constraints.

Public Member Functions
	SetMeshComp (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.
	SetMeshComp (const SetMeshComp &otro)
	Copy constructor.
SetMeshComp &	operator= (const SetMeshComp &otro)
	Assignment operator.
size_t	getNumberOfNodes (void) const
	Returns the number of nodes.
void	addNode (Node *nPtr)
	Appends a node. More...
virtual const DqPtrsNode &	GetNodos (void) const
	Return the node container.
virtual DqPtrsNode &	GetNodos (void)
	Return the nodes container.
void	clearNodos (void)
	Clears out the nodes.
void	sel_nodes_from_list (const ID &)
	Select the nodes identified by the tags being passed as parameters.
bool	In (const Node *) const
	Returns true if the node belongs to the set.
size_t	getNumberOfElements (void) const
	Returns the number of elements.
void	addElement (Element *ePtr)
	Adds an element. More...
virtual const DqPtrsElem &	getElements (void) const
	Returns the element container.
virtual DqPtrsElem &	getElements (void)
	Returns the elements container.
void	clearElements (void)
	Clears out the elements.
void	sel_elements_from_list (const ID &tags)
	Selects the elements identified by the tags being passed as parameters.
bool	In (const Element *) const
	Returns true if the element belongs to the set.
virtual const DqPtrsConstraint &	GetConstraints (void) const
	Return the constraints container.
virtual DqPtrsConstraint &	GetConstraints (void)
	Return the constraints container.
void	clearConstraints (void)
	Clears out the constraints.
void	sel_constraints_from_list (const ID &tags)
	Selecciona las coacciones cuyos tags being passed as parameters.
void	appendFromGeomEntity (const SetBase &)
	Appends to this set the objects the nodes and elements from the set being passed as parameter.
void	clear (void)
	Clears all the objectsof the lists.
void	fix (const SFreedom_Constraint &)
	Applies the single freedom constraint being passed as parameter to the nodes.
nod_const_iterator	nodos_begin (void) const
	Returns an iterator that points to the first item of the node container.
nod_const_iterator	nodos_end (void) const
	Returns an iterator that points to the past-the-end item in the node container.
Node *	buscaNodo (const int &tag)
	Returns (if it exists) a pointer to the node cuyo tag is being passed as parameter.
const Node *	buscaNodo (const int &tag) const
	Returns (if it exists) a pointer to the node cuyo tag is being passed as parameter.
bool	InNodeTag (const int) const
	Returns true if the node with the tag being passed as parameter, belongs to the set.
bool	InNodeTags (const ID &) const
	Returns true if the nodes, with the tags being passed as parameter, belongs to the set.
std::set< int >	getNodeTags (void) const
	Returns node tags.
std::set< int >	getElementTags (void) const
	Returns the tags de los elements.
std::set< int >	getConstraintTags (void) const
	Returns the tags de los constraints.
Node *	getNearestNode (const Pos3d &p)
	Returns the node closest to the point being passed as parameter.
const Node *	getNearestNode (const Pos3d &p) const
	Returns the node closest to the point being passed as parameter.
elem_iterator	elem_begin (void)
elem_const_iterator	elem_begin (void) const
	Returns an iterator which points to principio de la lista de elements.
elem_iterator	elem_end (void)
elem_const_iterator	elem_end (void) const
	Returns an iterator apuntando tras el final de la lista de elements.
Element *	findElement (const int &)
	Returns (if it exists) a pointer to the node identified by the tag being passed as parameter.
const Element *	findElement (const int &) const
	Returns (if it exists) a pointer to the node identified by the tag being passed as parameter.
Element *	getNearestElement (const Pos3d &)
	Returns the element closest to the point being passed as parameter.
const Element *	getNearestElement (const Pos3d &) const
	Returns the element closest to the point being passed as parameter.
void	kill_elements (void)
	Deactivates the elements.
void	alive_elements (void)
	Reactivates the elements.
size_t	getNumDeadElements (void) const
	Returns the number of inactive elements.
size_t	getNumLiveElements (void) const
	Returns the number of active elements.
size_t	getNumDeadNodes (void) const
	Returns the number of inactive nodes.
size_t	getNumLiveNodes (void) const
	Returns the número de active nodes.
constraint_iterator	constraints_begin (void)
	Returns an iterator which points to principio de la lista de constraints.
constraint_const_iterator	constraints_begin (void) const
	Returns an iterator which points to principio de la lista de constraints.
constraint_iterator	constraints_end (void)
	Returns an iterator apuntando tras el final de la lista de constraints.
constraint_const_iterator	constraints_end (void) const
	Returns an iterator apuntando tras el final de la lista de constraints.
Constraint *	buscaConstraint (const int &tag)
	Returns, if it exists, a pointer to the constraint which tag is being passed as parameter.
const Constraint *	buscaConstraint (const int &tag) const
	Returns, if it exists, a pointer to the constraint which tag is being passed as parameter.
void	CompletaHaciaArriba (void)
	Appends to this set the objects that make reference to one or more of the objects that already are in the set.
void	CompletaHaciaAbajo (void)
	Appends to the set being passed as parameter the nodes that touch any of the elements of the set.
virtual void	Transforma (const TrfGeom &trf)
	Aplies the transformation to the positions of the nodes.
virtual void	Transforma (const size_t &indice_trf)
	Applies to the set the transformation with the identifier being passed as parameter.
SVD3d	getResistingSVD3d (const Plano3d &, const Pos3d &, const double &, const bool &) const
	Return the resultant of the forces over the nodes near to the plane, of the elements behind the plane.
virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.
virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.
	~SetMeshComp (void)
	Destructor.
Public Member Functions inherited from XC::SetBase
	SetBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.
virtual void	genMesh (meshing_dir dm)
	Generates a finite element mesh from the set components.
const ID &	getIdNodeTags (void) const
	Returns the tags of the nodes en un vector de enteros.
const ID &	getIdElementTags (void) const
	Returns the tags of the elements en un vector de enteros.
virtual bool	In (const Pnt *) const
	Returns true if the point belongs to the set.
virtual bool	In (const Edge *) const
	Returns true if the edge belongs to the set.
virtual bool	In (const Face *) const
	Returns true if the surface belongs to the set.
virtual bool	In (const Body *) const
	Returns true if the body belongs to the set.
virtual bool	In (const UniformGrid *) const
	Returns true if the «uniform grid» belongs to the set.
void	resetTributarias (void) const
	Reset tributary areas (or lengths, or volumes) for the nodes that are connected to the set elements.
void	calculaLongsTributarias (bool initialGeometry=true) const
	Calcula las longitudes tributarias correspondientes a cada nodo of the elements of the set.
void	calculaAreasTributarias (bool initialGeometry=true) const
	Calcula las áreas tributarias correspondientes a cada nodo of the elements of the set.
void	calculaVolsTributarios (bool initialGeometry=true) const
	Calcula los volúmenes tributarios correspondientes a cada nodo of the elements of the set.
Public Member Functions inherited from XC::EntMdlrBase
	EntMdlrBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.
	EntMdlrBase (const EntMdlrBase &otro)
	Copy constructor.
EntMdlrBase &	operator= (const EntMdlrBase &otro)
	Assignment operator.
const Preprocessor *	GetPreprocessor (void) const
Preprocessor *	GetPreprocessor (void)
size_t	GetTag (void) const
	Return the object identifier in the model (tag).
Pnt *	BuscaPnt (const size_t &)
	Return a pointer to the point identified by the tag being passed as parameter.
const Pnt *	BuscaPnt (const size_t &) const
	Return a const pointer to the point identified by the tag being passed as parameter.
Edge *	BuscaEdge (const size_t &)
	Return a pointer to the edge identified by the tag being passed as parameter.
const Edge *	BuscaEdge (const size_t &) const
	Return a pointer to the edge identified by the tag being passed as parameter.
Face *	BuscaFace (const size_t &)
	Return a pointer to the face identified by the tag being passed as parameter.
const Face *	BuscaFace (const size_t &) const
	Returns a pointer to the face identified by the tag being passed as parameter.
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.
	MovableObject (int classTag)
	Constructor.
	MovableObject (const MovableObject &otro)
	Copy constructor.
MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.
int	getClassTag (void) const
	Returns the tag de la clase.
int	getDbTag (void) const
	Returns the tag para la database.
int	getDbTag (CommParameters &)
	Returns the tag para la database.
void	setDbTag (int dbTag)
	Asigna el tag para la database.
void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
virtual int	updateParameter (int parameterID, Information &info)
virtual int	activateParameter (int parameterID)
virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.
virtual int	getVariable (const std::string &variable, Information &)
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	numera (void)
	Assigns index to each object in the set (nodes,elements,points...) to be able to use them in VTK.
void	clearAll (void)
	Clears all objects from the set.
void	copia_listas (const SetMeshComp &)
	Copy (into this set) the lists from the set being passed as parameter.
void	extend_lists (const SetMeshComp &)
	Appends to this set the objects from the set being passed as parameter.
void	extend_lists_cond (const SetMeshComp &, const std::string &)
DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.
void	calc_resisting_force (void)
	Calcula los esfuerzos en cada uno de los elements.
void	mueve (const Vector3d &)
	Moves the nodes.
Protected Member Functions inherited from XC::EntMdlrBase
const Preprocessor *	get_preprocessor (void) const
	Return a pointer to the preprocessor.
Preprocessor *	get_preprocessor (void)
	Return a pointer to the preprocessor.
bool	check_preprocessor (void) const
	Check for preprocessor.
int	sendIdsEtiquetas (const int &, const int &, CommParameters &)
	Send labels through the channel being passed as parameter.
int	recvIdsEtiquetas (const int &, const int &, const CommParameters &)
	Receive labels through the channel being passed as parameter.
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receive members through the channel being passed as parameter.

Static Protected Member Functions
template<class L >
static void	numera_lista (L &l)
	Set indices to the object to allow its use in VTK.

Additional Inherited Members
Protected Attributes inherited from XC::EntMdlrBase
LabelContainer	labels
	Label container.

Detailed Description

Set of mesh components (nodes, elements and constraints).

A SetMeshComp object contains zero or more:

• Nodes.
• Finite elements.
• Essential boundary conditions (displacements).

Member Function Documentation

void XC::SetMeshComp::addElement

(

Element *

ePtr

)

Adds an element.

Adds the pointer to element being passed as parameter.

void XC::SetMeshComp::addNode

(

Node *

nPtr

)

Appends a node.

Adds the pointer to node being passed as parameter.

---

The documentation for this class was generated from the following files:

• /usr/local/src/prg/xc/src/preprocessor/set_mgmt/SetMeshComp.h
• /usr/local/src/prg/xc/src/preprocessor/set_mgmt/SetMeshComp.cc
