Base class for nodes and elements (mesh components). More...

#include <MeshComponent.h>

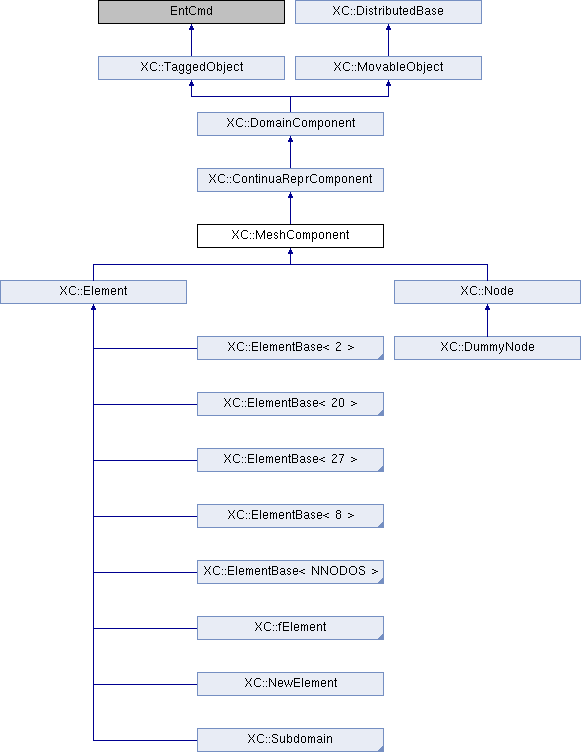

Inheritance diagram for XC::MeshComponent:

Public Member Functions
	MeshComponent (int classTag)
	Constructor.

	MeshComponent (int tag, int classTag)
	Constructor.

Public Member Functions inherited from XC::ContinuaReprComponent
	ContinuaReprComponent (int classTag)

	ContinuaReprComponent (int tag, int classTag)

virtual const bool	isDead (void) const

virtual const bool	isAlive (void) const

virtual void	kill (void)

virtual void	alive (void)

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual void	setDomain (Domain *theDomain)
	Asigna a pointer al domain.

virtual Domain *	getDomain (void) const
	Returns a pointer to the domain.

const Preprocessor *	GetPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	GetPreprocessor (void)
	Returns (if possible) a pointer to the preprocessor.

void	set_indice (const size_t &i)
	Set the index for the object (see numera in Set). This index is used on VTK arrays.

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

virtual void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	sendSelf (CommParameters &)=0

virtual int	recvSelf (const CommParameters &)=0

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	setup_matrices (std::deque< Matrix > &, const int &) const
	Initializes the matrix container.

int	sendIdsEtiquetas (int posDbTag, CommParameters &)
	Send labelsthrough the channel being passed as parameter.

int	recvIdsEtiquetas (int posDbTag, const CommParameters &)
	Receive labels through the channel being passed as parameter.

int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.

Protected Member Functions inherited from XC::ContinuaReprComponent
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor.

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Protected Attributes
int	index
	Index for VTK arrays.

LabelContainer	labels
	Label container.

Detailed Description

Base class for nodes and elements (mesh components).

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/mesh/MeshComponent.h
/usr/local/src/prg/xc/src/domain/mesh/MeshComponent.cc
