Load pattern container. More...

#include <MapLoadPatterns.h>

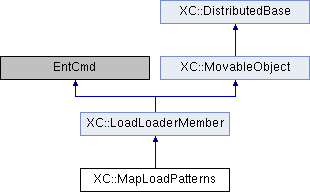

Inheritance diagram for XC::MapLoadPatterns:

Public Types
typedef map_loadpatterns::iterator	iterator

typedef map_loadpatterns::const_iterator	const_iterator

Public Member Functions
	MapLoadPatterns (LoadLoader *owr)
	Default constructor.

	~MapLoadPatterns (void)
	Destructor.

void	clear (void)
	Clears all the load patterns.

const_iterator	begin (void) const

const_iterator	end (void) const

iterator	begin (void)

iterator	end (void)

size_t	size (void) const

bool	empty (void) const

const std::string	getCurrentLoadPatternId (void) const

LoadPattern *	getCurrentLoadPatternPtr (void)

const LoadPattern *	getCurrentLoadPatternPtr (void) const

const std::string &	getCurrentLoadPattern (void) const

void	setCurrentLoadPattern (const std::string &nmb)

LoadPattern *	newLoadPattern (const std::string &, const std::string &)
	Define un objeto LoasPattern con el tipo y el nombre being passed as parameters.

void	addToDomain (const std::string &)
	Adds the load pattern to the domain.

void	removeFromDomain (const std::string &)
	Elimina el load pattern del domain.

void	removeAllFromDomain (void)
	Elimina las loadpatterns del domain.

TimeSeries *	buscaTS (const int &)
	Returns a pointer to the TS cuyo dbTag being passed as parameter. se usa en LoadPattern::recvData.

const TimeSeries *	buscaTS (const int &) const
	Returns a pointer to the TS cuyo nombre being passed as parameter.

TimeSeries *	buscaTS (const std::string &)
	Returns a pointer to the TimeSeries cuyo nombre being passed as parameter.

const TimeSeries *	buscaTS (const std::string &) const
	Returns a pointer to the TimeSeries cuyo nombre being passed as parameter.

LoadPattern *	buscaLoadPattern (const std::string &)
	Returns a pointer to the load pattern cuyo nombre being passed as parameter.

const LoadPattern *	buscaLoadPattern (const std::string &) const
	Returns a pointer to the load pattern cuyo nombre being passed as parameter.

LoadPattern *	buscaLoadPattern (const int &)
	Returns a pointer to the caso cuyo tag being passed as parameter.

const LoadPattern *	buscaLoadPattern (const int &) const
	Returns a pointer to the caso cuyo tag being passed as parameter.

const std::string &	getNombreLoadPattern (const LoadPattern *) const
	Returns the nombre del caso pointed by the parameter.

TimeSeries *	newTimeSeries (const std::string &, const std::string &)
	Define un objeto TimeSeries con el tipo y el nombre being passed as parameters. Interpreta los siguientes tipos: More...

const std::string &	getCurrentTimeSeries (void) const

void	setCurrentTimeSeries (const std::string &nmb)

std::deque< std::string >	getListaNombres (void) const
	Returns the nombres de los load patterns.

boost::python::list	getKeys (void) const
	Returns load case names.

const int &	getCurrentElementLoadTag (void) const

void	setCurrentElementLoadTag (const int &n)

const int &	getCurrentNodeLoadTag (void) const

void	setCurrentNodeLoadTag (const int &n)

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Public Member Functions inherited from XC::LoadLoaderMember
	LoadLoaderMember (LoadLoader *owr)
	Default constructor.

const LoadLoader *	getLoadLoader (void) const
	Returns the owner.

LoadLoader *	getLoadLoader (void)
	Returns the owner.

Domain *	getDomain (void) const
	Returns the domain.

int &	getTagLP (void)
	Returns the tag para el siguiente load pattern.

const int &	getTagLP (void) const
	Returns the tag para el siguiente load pattern.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	clear_time_series (void)
	Clears all the load patterns.

DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &cp)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Send members through the channel being passed as parameter.

Friends
class	LoadLoader

Detailed Description

Load pattern container.

Member Function Documentation

XC::TimeSeries * XC::MapLoadPatterns::newTimeSeries	(	const std::string &	tipo,
		const std::string &	cod_ts
	)

Define un objeto TimeSeries con el tipo y el nombre being passed as parameters. Interpreta los siguientes tipos:

constant_ts: Defines a constant time series (ConstantSeries).
linear_ts: Defines a linear time series (LinearSeries).
path_ts: Defines a path time series (PathSeries).
pulse_ts: Defines a pulse time series (PulseSeries).
rectangular_ts: Defines a rectangular time series (RectangularSeries).
triangular_ts: Defines a triangular time series (TriangleSeries).
trig_ts: Defines a trigonometric time series (TrigSeries).

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/load/pattern/MapLoadPatterns.h
/usr/local/src/prg/xc/src/domain/load/pattern/MapLoadPatterns.cc
