| GenericSection1d (int tag, UniaxialMaterial &m, int code) |
| | Constructor.
|
| |
|
| GenericSection1d (int tag) |
| | Constructor.
|
| |
|
| GenericSection1d (void) |
| | Constructor.
|
| |
|
| ~GenericSection1d (void) |
| | Destructor.
|
| |
|
int | setInitialSectionDeformation (const Vector &) |
| | Sets the cross-section initial strain (generalized: axial and bending).
|
| |
|
int | setTrialSectionDeformation (const Vector &) |
| | Sets the cross-section trial strain (generalized: axial and bending).
|
| |
|
void | zeroInitialSectionDeformation (void) |
| | Zeroes initial strain.
|
| |
|
const Vector & | getInitialSectionDeformation (void) const |
| | Returns the cross-section initial strain (generalized: axial and bending).
|
| |
|
const Vector & | getSectionDeformation (void) const |
| | Returns material's trial generalized deformation.
|
| |
|
const Vector & | getStressResultant (void) const |
| | Return the stress resultant over the section.
|
| |
|
const Matrix & | getSectionTangent (void) const |
| | Return the tangent stiffness matrix.
|
| |
|
const Matrix & | getInitialTangent (void) const |
| | Returns the valor inicial de la tangent stiffness matrix.
|
| |
|
const Matrix & | getSectionFlexibility (void) const |
| | Return the matriz de flexibilidad.
|
| |
|
const Matrix & | getInitialFlexibility (void) const |
| | Returns the valor inicial la matriz de flexibilidad.
|
| |
|
int | commitState (void) |
| | Returns the index of the commited state.
|
| |
|
int | revertToLastCommit (void) |
| | Returns to the last commited state.
|
| |
|
int | revertToStart (void) |
| | Returns to the initial state.
|
| |
|
SectionForceDeformation * | getCopy (void) const |
| | Virtual constructor.
|
| |
|
const ResponseId & | getType (void) const |
| | Returns the tipo de respuesta.
|
| |
|
int | getOrder (void) const |
| |
|
int | sendSelf (CommParameters &) |
| | Sends object members through the channel being passed as parameter.
|
| |
|
int | recvSelf (const CommParameters &) |
| | Receives object members through the channel being passed as parameter.
|
| |
|
void | Print (std::ostream &s, int flag=0) |
| | Imprime el objeto.
|
| |
|
| SeccionBarraPrismatica (int tag, int classTag, MaterialLoader *mat_ldr=nullptr) |
| | Constructor.
|
| |
|
| SeccionBarraPrismatica (const SeccionBarraPrismatica &otro) |
| | Copy constructor.
|
| |
|
SeccionBarraPrismatica & | operator= (const SeccionBarraPrismatica &otro) |
| | Assignment operator.
|
| |
|
int | setTrialDeformationPlane (const DeformationPlane &) |
| | Sets the deformation plane of the section.
|
| |
|
int | setInitialDeformationPlane (const DeformationPlane &) |
| | Sets the plano de initial strains of the section.
|
| |
|
virtual const Vector & | getGeneralizedStrainVector (const DeformationPlane &) const |
| | Returns the generalized strains vector que corresponde al deformation plane being passed as parameter.
|
| |
|
DeformationPlane | getDeformationPlane (void) const |
| | Returns the generalized strains vector of the cross-section.
|
| |
|
DeformationPlane | getInitialDeformationPlane (void) const |
| | Returns initial strain plane.
|
| |
|
virtual double | getStrain (const double &y, const double &z=0) const |
| | Returns strain at postion being passed as parameter.
|
| |
|
double | getN (void) const |
| | Returns internal axial force.
|
| |
|
double | getMy (void) const |
| | Returns internal bending moment around y axis.
|
| |
|
double | getMz (void) const |
| | Returns internal bending moment around z axis.
|
| |
|
virtual double | getCdgY (void) const |
| | Returns the coordenada «y» del centro de gravedad of the cross-section.
|
| |
|
virtual double | getCdgZ (void) const |
| | Returns the coordenada «z» del centro de gravedad of the cross-section.
|
| |
|
Pos2d | getCdg (void) const |
| | Returns the position of the cross-section centroid.
|
| |
|
Recta2d | getFibraNeutra (void) const |
| | Returns the neutral axis.
|
| |
|
Recta2d | getEjeEsfuerzos (void) const |
| | Returns the axis that is aligned with the cross-section internal forces.
|
| |
|
Pos2d | getPuntoSemiplanoTracciones (void) const |
| | Returns (if possible) a point in the tensioned region.
|
| |
|
Pos2d | getPuntoSemiplanoCompresiones (void) const |
| | Returns (if possible) a point in the compressed region.
|
| |
|
Semiplano2d | getSemiplanoTracciones (void) const |
| | Returns the tensioned half-plane.
|
| |
|
Semiplano2d | getSemiplanoTracciones (const Recta2d &) const |
| | Returns the tensioned half-plane defined by the edge being passed as parameter.
|
| |
|
Semiplano2d | getSemiplanoCompresiones (void) const |
| | Returns the compressed half-plane.
|
| |
|
Semiplano2d | getSemiplanoCompresiones (const Recta2d &) const |
| | Returns the compressed half-plane defined by the edge being passed as parameter.
|
| |
|
const double & | EA (void) const |
| | Returns the section axial stiffness.
|
| |
|
const double & | EIz (void) const |
| | Returns the bending stiffness of the cross-section en torno al eje z.
|
| |
|
const double & | EIy (void) const |
| | Returns the bending stiffness of the cross-section en torno al eje y.
|
| |
|
const double & | EIyz (void) const |
| | Returns the producto de inercia multiplicado por el Young's modulus.
|
| |
|
double | getTheta (void) const |
| | Returns the ángulo que define un eje principal de inercia.
|
| |
|
double | getEI1 (void) const |
| | Returns the bending stiffness en torno al eje de inercia principal mayor.
|
| |
|
double | getEI2 (void) const |
| | Returns the bending stiffness en torno al eje de inercia principal menor.
|
| |
|
PrincipalAxesOfInertia2D | getEjesInercia (void) const |
| | Returns the ejes principales de inercia of the cross-section.
|
| |
|
Vector2d | getVDirEje1 (void) const |
| | Returns the vector del eje principal I.
|
| |
|
Vector2d | getVDirStrongAxis (void) const |
| | Returns the vector del eje principal I.
|
| |
|
Vector2d | getVDirEje2 (void) const |
| | Returns the vector del eje principal II.
|
| |
|
Vector2d | getVDirWeakAxis (void) const |
| | Returns the vector del eje principal II.
|
| |
|
bool | hayAxil (const double &tol=1e-4) const |
| | Returns true if the section is subjected to an axial force.
|
| |
|
bool | hayCortante (const double &tol=1e-4) const |
| | Returns true if the section is subjected to a shearing force.
|
| |
|
bool | hayMomento (const double &tol=1e-4) const |
| | Returns true if the section is subjected to a bending moment.
|
| |
|
bool | hayTorsor (const double &tol=1e-4) const |
| | Returns true if the section is subjected to a torsional force.
|
| |
|
| SectionForceDeformation (int tag, int classTag, MaterialLoader *mat_ldr=nullptr) |
| | Constructor.
|
| |
|
| SectionForceDeformation (const SectionForceDeformation &otro) |
| | Copy constructor.
|
| |
|
SectionForceDeformation & | operator= (const SectionForceDeformation &otro) |
| | Assignment operator.
|
| |
|
MaterialLoader * | getMaterialLoader (void) |
| |
|
virtual int | addInitialSectionDeformation (const Vector &) |
| | Adds to the generalized strains vector inicial el being passed as parameter.
|
| |
|
void | setInitialGeneralizedStrain (const Vector &iS) |
| |
|
const Vector & | getInitialGeneralizedStrain (void) const |
| |
|
double | getSectionDeformation (const int &) const |
| | Returns 'defID' component of the generalized strain vector.
|
| |
|
double | getSectionDeformationByName (const std::string &) const |
| | Returns section's trial deformation component by its name.
|
| |
|
double | getStressResultant (const int &) const |
| | Returns 'defID' component of the generalized stress vector.
|
| |
|
double | getStressResultantByName (const std::string &) const |
| | Returns the esfuerzos de la placa.
|
| |
|
const Vector & | getGeneralizedStress (void) const |
| |
|
virtual const Vector & | getGeneralizedStrain (void) const |
| |
|
virtual double | getRho (void) const |
| | Returns the densidad (masa por unidad de longitud/area/volumen) of the section.
|
| |
|
std::string | getTypeString (void) const |
| | Comma separated internal forces names to with the section contributes with stiffness.
|
| |
|
virtual Response * | setResponse (const std::vector< std::string > &argv, Information &info) |
| | Returns the respuesta of the section.
|
| |
|
virtual int | getResponse (int responseID, Information &info) |
| | Returns section response.
|
| |
|
virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
| |
|
virtual int | updateParameter (int parameterID, Information &info) |
| |
|
virtual int | activateParameter (int parameterID) |
| |
|
virtual const Vector & | getStressResultantSensitivity (int gradNumber, bool conditional) |
| |
|
virtual const Vector & | getSectionDeformationSensitivity (int gradNumber) |
| |
|
virtual const Matrix & | getSectionTangentSensitivity (int gradNumber) |
| |
|
virtual double | getRhoSensitivity (int gradNumber) |
| |
|
virtual int | commitSensitivity (const Vector §ionDeformationGradient, int gradNumber, int numGrads) |
| |
|
| Material (int tag, int classTag) |
| | Constructor.
|
| |
|
const MaterialLoader * | GetMaterialLoader (void) const |
| | Returns (if possible) a pointer to the material handler (owner).
|
| |
|
MaterialLoader * | GetMaterialLoader (void) |
| | Returs a pointer to the material handler (if possible).
|
| |
|
std::string | getName (void) const |
| | Returns the name of the material.
|
| |
|
virtual int | setVariable (const std::string &argv) |
| |
|
virtual int | getVariable (int variableID, double &info) |
| |
|
virtual void | update (void) |
| | Update state variables for the material according to the new values of the parameters.
|
| |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| | Increments generalized strain. More...
|
| |
|
virtual void | zeroInitialGeneralizedStrain (void) |
| | zeroes initial generalized strain
|
| |
|
| TaggedObject (int tag, EntCmd *owr=nullptr) |
| | Constructor.
|
| |
|
void | assignTag (int newTag) |
| | Establece el valor del tag.
|
| |
|
int | getTag (void) const |
| |
|
| MovableObject (int classTag, int dbTag) |
| | Constructor.
|
| |
|
| MovableObject (int classTag) |
| | Constructor.
|
| |
|
| MovableObject (const MovableObject &otro) |
| | Copy constructor.
|
| |
|
MovableObject & | operator= (const MovableObject &otro) |
| | Operacdor asignación.
|
| |
|
int | getClassTag (void) const |
| | Returns the tag de la clase.
|
| |
|
int | getDbTag (void) const |
| | Returns the tag para la database.
|
| |
|
int | getDbTag (CommParameters &) |
| | Returns the tag para la database.
|
| |
|
void | setDbTag (int dbTag) |
| | Asigna el tag para la database.
|
| |
|
void | setDbTag (CommParameters &) |
| | Asigna, sólo si es preciso, el tag para la database.
|
| |
|
virtual int | setVariable (const std::string &variable, Information &) |
| | Returns the identificador de la variable cuyo nombre being passed as parameter.
|
| |
|
virtual int | getVariable (const std::string &variable, Information &) |
| |
|
| DistributedBase (void) |
| | Constructor.
|
| |
|
virtual DbTagData & | getDbTagData (void) const |
| | Returns a vector to store class dbTags.
|
| |
|
const int & | getDbTagDataPos (const int &i) const |
| | Returns the data at the i-th position.
|
| |
|
void | setDbTagDataPos (const int &i, const int &v) |
| | Sets the data at the i-th position.
|
| |
|
void | inicComm (const int &dataSize) const |
| | Initializes communication.
|
| |

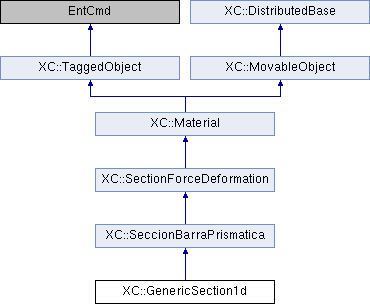

Public Member Functions inherited from XC::SeccionBarraPrismatica
