CableMaterial provides the abstraction of an elastic uniaxial material, the input parameters are the Prestress, E, Effective Self Weight (gravity component of Weight per volume transverse to the cable), and Length of the cable. More...

#include <CableMaterial.h>

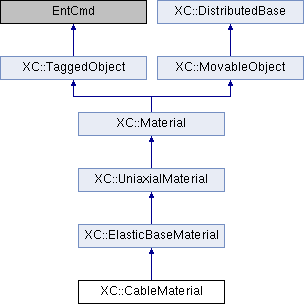

Inheritance diagram for XC::CableMaterial:

Public Member Functions
	CableMaterial (int tag, double Prestress, double E, double unitWeightEff, double L_Element)

	CableMaterial (int tag=0)
	Constructor.

void	setLength (const double &)

double	getLength (void) const

int	setTrialStrain (double strain, double strainRate=0.0)

int	setTrial (double strain, double &stress, double &tangent, double strainRate=0.0)

double	getStrain (void) const

double	getStress (void) const

double	getTangent (void) const

double	getInitialTangent (void) const

void	setPrestress (const double &d)

double	getPrestress (void) const

int	commitState (void)

int	revertToLastCommit (void)

int	revertToStart (void)

UniaxialMaterial *	getCopy (void) const
	Virtual constructor.

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.

Public Member Functions inherited from XC::ElasticBaseMaterial
	ElasticBaseMaterial (int tag=0, int classtag=0, double E=0.0, double e0=0.0)
	Constructor.

double	getE (void) const

void	setE (const double &e)

int	setInitialStrain (double strain)
	Establece el valor de la tensión inicial.

double	getStrain (void) const

double	getInitialStrain (void) const
	Return the initial strain.

double	getInitialTangent (void) const

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Public Member Functions inherited from XC::UniaxialMaterial
	UniaxialMaterial (int tag, int classTag)
	Constructor.

virtual double	getStrainRate (void) const
	default operation for strain rate is zero

const Vector &	getGeneralizedStress (void) const
	Return the generalized stress.

const Vector &	getGeneralizedStrain (void) const
	Return the generalized strain.

virtual void	setInitialGeneralizedStrain (const Vector &)
	Sets the initial generalized strain to the value being passed as parameter.

const Vector &	getInitialGeneralizedStrain (void) const

virtual double	getDampTangent (void) const
	default operation for damping tangent is zero

virtual double	getSecant (void) const
	default operation for secant stiffness

virtual double	getFlexibility (void) const
	Return the inverse of stiffness matrix.

virtual double	getInitialFlexibility (void) const
	Return the inverse of stiffness matrix inicial.

virtual double	getRho (void) const
	Return the material density.

void	setRho (const double &)
	Assigns la material density.

virtual UniaxialMaterial *	getCopy (SectionForceDeformation *s) const
	Virtual constructor.

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &matInformation)

virtual int	getResponse (int responseID, Information &matInformation)
	Returns material response.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual double	getStressSensitivity (int gradNumber, bool conditional)

virtual double	getStrainSensitivity (int gradNumber)

virtual double	getInitialTangentSensitivity (int gradNumber)

virtual double	getDampTangentSensitivity (int gradNumber)

virtual double	getRhoSensitivity (int gradNumber)

virtual int	commitSensitivity (double strainGradient, int gradNumber, int numGrads)

Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor.

const MaterialLoader *	GetMaterialLoader (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialLoader *	GetMaterialLoader (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters.

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElasticBaseMaterial
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

virtual double	def_total (void) const

Protected Member Functions inherited from XC::UniaxialMaterial
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Additional Inherited Members
Protected Attributes inherited from XC::ElasticBaseMaterial
double	trialStrain

double	E
	Elastic modulus.

double	ezero
	Initial deformation.

Detailed Description

CableMaterial provides the abstraction of an elastic uniaxial material, the input parameters are the Prestress, E, Effective Self Weight (gravity component of Weight per volume transverse to the cable), and Length of the cable.

The cable Force Displacement is converted to Stress Strain material for use with the truss element. The stress strain ranges from slack (large strain at zero stress) to taught (linear with modulus E). The material has no history and is not path dependent.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/material/uniaxial/CableMaterial.h
/usr/local/src/prg/xc/src/material/uniaxial/CableMaterial.cpp
