XC::Bidirectional Class Reference

?? More...

#include <Bidirectional.h>

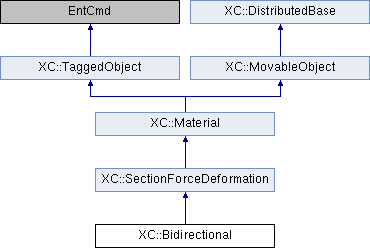

Inheritance diagram for XC::Bidirectional:

Public Member Functions
	Bidirectional (int tag, double E, double sigY, double Hiso, double Hkin)
	Constructor.
	Bidirectional (int tag)
int	setInitialSectionDeformation (const Vector &v)
int	setTrialSectionDeformation (const Vector &v)
const Matrix &	getSectionTangent (void) const
	Returns the tangent stiffness matrix.
const Matrix &	getInitialTangent (void) const
	Returns the initial tangent stiffness matrix.
const Vector &	getStressResultant (void) const
	Returns the cross-section stress resultant.
void	zeroInitialSectionDeformation (void)
	Returns the initial generalized strains.
const Vector &	getInitialSectionDeformation (void) const
	Returns the initial generalized strains.
const Vector &	getSectionDeformation (void) const
	Returns material's trial generalized deformation.
virtual double	getStrain (const double &, const double &) const
	Returns strain at the position being passed as parameter.
int	commitState (void)
int	revertToLastCommit (void)
int	revertToStart (void)
SectionForceDeformation *	getCopy (void) const
	Virtual constructor.
const ResponseId &	getType (void) const
int	getOrder (void) const
int	sendSelf (CommParameters &)
int	recvSelf (const CommParameters &)
void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.
Public Member Functions inherited from XC::SectionForceDeformation
	SectionForceDeformation (int tag, int classTag, MaterialLoader *mat_ldr=nullptr)
	Constructor.
	SectionForceDeformation (const SectionForceDeformation &otro)
	Copy constructor.
SectionForceDeformation &	operator= (const SectionForceDeformation &otro)
	Assignment operator.
MaterialLoader *	getMaterialLoader (void)
virtual int	addInitialSectionDeformation (const Vector &)
	Adds to the generalized strains vector inicial el being passed as parameter.
void	setInitialGeneralizedStrain (const Vector &iS)
const Vector &	getInitialGeneralizedStrain (void) const
double	getSectionDeformation (const int &) const
	Returns 'defID' component of the generalized strain vector.
double	getSectionDeformationByName (const std::string &) const
	Returns section's trial deformation component by its name.
double	getStressResultant (const int &) const
	Returns 'defID' component of the generalized stress vector.
double	getStressResultantByName (const std::string &) const
	Returns the esfuerzos de la placa.
virtual const Matrix &	getSectionFlexibility (void) const
	Returns the tangent flexibility matrix of the section.
virtual const Matrix &	getInitialFlexibility (void) const
	Returns the initial flexibility matrix of the section.
const Vector &	getGeneralizedStress (void) const
virtual const Vector &	getGeneralizedStrain (void) const
virtual double	getRho (void) const
	Returns the densidad (masa por unidad de longitud/area/volumen) of the section.
std::string	getTypeString (void) const
	Comma separated internal forces names to with the section contributes with stiffness.
virtual Response *	setResponse (const std::vector< std::string > &argv, Information &info)
	Returns the respuesta of the section.
virtual int	getResponse (int responseID, Information &info)
	Returns section response.
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
virtual int	updateParameter (int parameterID, Information &info)
virtual int	activateParameter (int parameterID)
virtual const Vector &	getStressResultantSensitivity (int gradNumber, bool conditional)
virtual const Vector &	getSectionDeformationSensitivity (int gradNumber)
virtual const Matrix &	getSectionTangentSensitivity (int gradNumber)
virtual double	getRhoSensitivity (int gradNumber)
virtual int	commitSensitivity (const Vector &sectionDeformationGradient, int gradNumber, int numGrads)
Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor.
const MaterialLoader *	GetMaterialLoader (void) const
	Returns (if possible) a pointer to the material handler (owner).
MaterialLoader *	GetMaterialLoader (void)
	Returs a pointer to the material handler (if possible).
std::string	getName (void) const
	Returns the name of the material.
virtual int	setVariable (const std::string &argv)
virtual int	getVariable (int variableID, double &info)
virtual void	update (void)
	Update state variables for the material according to the new values of the parameters.
virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...
virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain
Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.
void	assignTag (int newTag)
	Establece el valor del tag.
int	getTag (void) const
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.
	MovableObject (int classTag)
	Constructor.
	MovableObject (const MovableObject &otro)
	Copy constructor.
MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.
int	getClassTag (void) const
	Returns the tag de la clase.
int	getDbTag (void) const
	Returns the tag para la database.
int	getDbTag (CommParameters &)
	Returns the tag para la database.
void	setDbTag (int dbTag)
	Asigna el tag para la database.
void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.
virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.
virtual int	getVariable (const std::string &variable, Information &)
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.
Protected Member Functions inherited from XC::SectionForceDeformation
int	sendData (CommParameters &cp)
	Send object members through the channel defined in cp.
int	recvData (const CommParameters &cp)
	Receives object members through the channel defined in cp.
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Additional Inherited Members
Protected Attributes inherited from XC::SectionForceDeformation
Matrix *	fDefault
	Default flexibility matrix.
MaterialLoader *	material_loader
	Material definition handler (search,...).

Detailed Description

??

---

The documentation for this class was generated from the following files:

• /usr/local/src/prg/xc/src/material/section/Bidirectional.h
• /usr/local/src/prg/xc/src/material/section/Bidirectional.cpp
