#include <PressureIndependMultiYield.h>

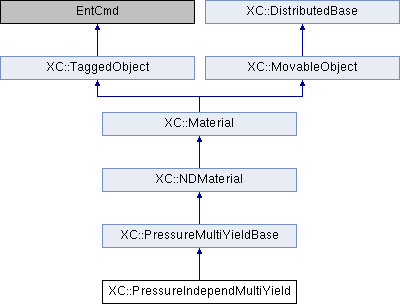

Inheritance diagram for XC::PressureIndependMultiYield:

Public Member Functions
	PressureIndependMultiYield (int tag, int nd, double rho, double refShearModul, double refBulkModul, double cohesi, double peakShearStra, double frictionAng=0., double refPress=100, double pressDependCoe=0.0, int numberOfYieldSurf=20, double *gredu=0)

	PressureIndependMultiYield (int tag=0)

void	setup (int nd, double r, double refShearModul, double refBulkModul, double cohesi, double peakShearStra, double frictionAng, double refPress, double pressDependCoe, int numberOfYieldSurf, double *gredu)

double	getRho (void) const

int	setTrialStrain (const Vector &strain)
	Asigna el trial strain value.

int	setTrialStrain (const Vector &v, const Vector &r)
	Asigna el trial strain value.

int	setTrialStrainIncr (const Vector &v)
	Asigna el valor del incremento de la trial strain.

int	setTrialStrainIncr (const Vector &v, const Vector &r)
	Asigna el valor del incremento de la trial strain.

const Matrix &	getTangent (void) const
	Return the tangent stiffness matrix.

const Matrix &	getInitialTangent (void) const

void	getBackbone (Matrix &)

const Vector &	getStress (void) const
	Returns stress.

const Vector &	getStrain (void) const
	Returns strain.

const Vector &	getCommittedStress (void) const

const Vector &	getCommittedStrain (void) const

int	setTrialStrain (const Tensor &v)
	Asigna el trial strain value.

int	setTrialStrain (const Tensor &v, const Tensor &r)

int	setTrialStrainIncr (const Tensor &v)
	Asigna el valor del incremento de la trial strain.

int	setTrialStrainIncr (const Tensor &v, const Tensor &r)

int	commitState (void)

int	revertToLastCommit (void)

int	revertToStart (void)

NDMaterial *	getCopy (void) const
	Virtual constructor.

NDMaterial *	getCopy (const std::string &) const

const std::string &	getType (void) const

int	getOrder (void) const

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Response *	setResponse (const std::vector< std::string > &argv, Information &matInfo)

int	getResponse (int responseID, Information &matInformation)
	Returns material response.

void	Print (std::ostream &s, int flag=0)
	Imprime el objeto.

int	updateParameter (int responseID, Information &eleInformation)

Public Member Functions inherited from XC::PressureMultiYieldBase
	PressureMultiYieldBase (int tag, int classTag, int nd, double rho, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double cohesi=0.1, int numberOfYieldSurf=20)

	PressureMultiYieldBase (int tag, int classTag)

	PressureMultiYieldBase (const PressureMultiYieldBase &)

PressureMultiYieldBase &	operator= (const PressureMultiYieldBase &)

Public Member Functions inherited from XC::NDMaterial
	NDMaterial ()
	Constructor.

	NDMaterial (int tag, int classTag)
	Constructor.

virtual double	getE (void)

virtual double	getnu (void)

virtual double	getpsi (void)

const Vector &	getGeneralizedStress (void) const

const Vector &	getGeneralizedStrain (void) const

virtual void	setInitialGeneralizedStrain (const Vector &)
	Asigna el initial strain value.

const Vector &	getInitialGeneralizedStrain (void) const
	Return the initial strain.

virtual const Vector &	getCommittedStress (void)
	Returns commited stresses.

virtual const Vector &	getCommittedStrain (void)
	Returns commited strains.

virtual const Tensor &	getTangentTensor (void) const

virtual const stresstensor &	getStressTensor (void) const

virtual const straintensor &	getStrainTensor (void) const

virtual const straintensor &	getPlasticStrainTensor (void) const

virtual int	setTrialF (const straintensor &f)

virtual int	setTrialFIncr (const straintensor &df)

virtual int	setTrialC (const straintensor &c)

virtual int	setTrialCIncr (const straintensor &dc)

virtual const stresstensor	getPK1StressTensor (void)

virtual const stresstensor	getCauchyStressTensor (void)

virtual const straintensor &	getF (void) const

virtual const straintensor &	getC (void) const

virtual const straintensor	getFp (void)

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	activateParameter (int parameterID)

virtual const Vector &	getStressSensitivity (int gradNumber, bool conditional)

virtual const Vector &	getStrainSensitivity (int gradNumber)

virtual const Matrix &	getTangentSensitivity (int gradNumber)

virtual const Matrix &	getDampTangentSensitivity (int gradNumber)

virtual double	getRhoSensitivity (int gradNumber)

virtual int	commitSensitivity (Vector &strainGradient, int gradNumber, int numGrads)

Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor.

const MaterialLoader *	GetMaterialLoader (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialLoader *	GetMaterialLoader (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters.

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.

void	assignTag (int newTag)
	Establece el valor del tag.

int	getTag (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::PressureMultiYieldBase
void	setup (int nd, double r, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double cohesi, int numberOfYieldSurf)

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::NDMaterial
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.

Friends
class	PyLiq1

class	TzLiq1

Additional Inherited Members
Protected Attributes inherited from XC::PressureMultiYieldBase
int	matN

int	e2p

std::vector< MultiYieldSurface >	theSurfaces

std::vector< MultiYieldSurface >	committedSurfaces

int	activeSurfaceNum

int	committedActiveSurf

T2Vector	currentStress

T2Vector	trialStress

T2Vector	currentStrain

T2Vector	strainRate

Static Protected Attributes inherited from XC::PressureMultiYieldBase
static int	matCount =0

static std::vector< int >	ndmx

static std::vector< int >	loadStagex

static std::vector< double >	rhox

static std::vector< double >	frictionAnglex

static std::vector< double >	peakShearStrainx

static std::vector< double >	refPressurex

static std::vector< double >	cohesionx

static std::vector< double >	pressDependCoeffx

static std::vector< int >	numOfSurfacesx

static std::vector< double >	residualPressx

static std::vector< double >	stressRatioPTx

static Matrix	theTangent

static T2Vector	subStrainRate

Detailed Description

??.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/material/nD/soil/PressureIndependMultiYield.h
/usr/local/src/prg/xc/src/material/nD/soil/PressureIndependMultiYield.cpp
