Base class for time-dependent functions defined by a series of points (ti,fi). More...

#include <PathSeriesBase.h>

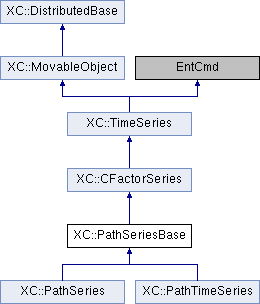

Inheritance diagram for XC::PathSeriesBase:

Public Member Functions
	PathSeriesBase (int classTag, const double &cfactor=1.0)
	Constructor.

	PathSeriesBase (int classTag, const Vector &thePath, const double &cfactor=1.0)
	Constructor.

size_t	getNumDataPoints (void) const
	Returns the número de puntos que definen el path.

size_t	getNumDataPointsOnFile (const std::string &) const
	Returns the number of data en on the file with the name being passed as parameter.

double	getPeakFactor (void) const
	Returns the peak value of the factor.

Vector	getPath (void) const

void	setPath (const Vector &d)

int	getLastSendCommitTag (void) const

void	setLastSendCommitTag (const int &d)

void	Print (std::ostream &s, int flag=0) const
	Imprime el objeto.

Public Member Functions inherited from XC::CFactorSeries
	CFactorSeries (int classTag, double cFactor=1.0)
	Constructor.

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

double	getFactor (double pseudoTime) const

void	setFactor (const double &d)

Public Member Functions inherited from XC::TimeSeries
	TimeSeries (int classTag)
	Constructor.

virtual TimeSeries *	getCopy (void) const =0

virtual double	getDuration (void) const =0

virtual double	getTimeIncr (double pseudoTime) const =0

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual double	getFactorSensitivity (double pseudoTime)

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &cp)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives members through the channel being passed as parameter.

Protected Member Functions inherited from XC::CFactorSeries
DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &cp)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives object members through the channel being passed as parameter.

Static Protected Member Functions
static size_t	load_vector_from_file (Vector &v, std::istream &is)
	Lee desde archivo.

Protected Attributes
Vector	thePath
	vector containg the data points

int	lastSendCommitTag

Protected Attributes inherited from XC::CFactorSeries
double	cFactor

Detailed Description

Base class for time-dependent functions defined by a series of points (ti,fi).

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/load/pattern/time_series/PathSeriesBase.h
/usr/local/src/prg/xc/src/domain/load/pattern/time_series/PathSeriesBase.cc
