Vectores to store trial and commited values of node displacement, velocity, etc. More...

#include <NodeVectors.h>

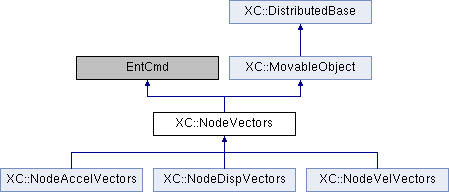

Inheritance diagram for XC::NodeVectors:

Public Member Functions
	NodeVectors (const size_t &nv=2)
	Constructor.

	NodeVectors (const NodeVectors &otro)
	Constructor de copia.

NodeVectors &	operator= (const NodeVectors &otro)

virtual	~NodeVectors (void)
	destructor

size_t	getVectorsSize (void) const
	Return the number of node DOFs.

virtual const Vector &	getData (const size_t &) const
	Returns the data vector.

virtual const Vector &	getTrialData (const size_t &) const
	Returns the data vector de prueba.

const Vector &	getTrialData (void) const
	Returns the valores de prueba.

const Vector &	getCommitData (void) const
	Returns commited values.

virtual int	setTrialData (const size_t &nDOF, const double &value, const size_t &dof)

virtual int	setTrialData (const size_t &nDOF, const Vector &)
	Asigna el valor being passed as parameter.

virtual int	incrTrialData (const size_t &nDOF, const Vector &)

virtual int	commitState (const size_t &nDOF)

virtual int	revertToLastCommit (const size_t &nDOF)
	Returns the vectores al estado correspondiente al último commit.

virtual int	revertToStart (const size_t &nDOF)
	Returns the nodo a su estado inicial.

virtual int	sendSelf (CommParameters &)
	Envia los vectores through the channel being passed as parameter.E.

virtual int	recvSelf (const CommParameters &)

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &)
	Sends object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

int	createData (const size_t &)
	private method to create the arrays to hold the data values and the Vector objects for the committed and trial quantities.

void	libera (void)

void	copia (const NodeVectors &)

Protected Attributes
size_t	numVectors
	number of vectors.

Vector *	commitData
	commited quantities

Vector *	trialData
	trial quantities

Vector	values
	double array holding the displacement/velocity/acceleration.

Detailed Description

Vectores to store trial and commited values of node displacement, velocity, etc.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/domain/mesh/node/NodeVectors.h
/usr/local/src/prg/xc/src/domain/mesh/node/NodeVectors.cc
