Material pointer container. It's used by elements to store materials for each integration point. More...

#include <MaterialVector.h>

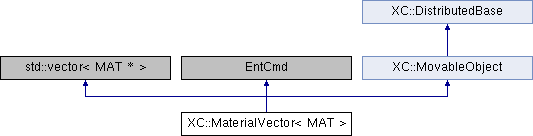

Inheritance diagram for XC::MaterialVector< MAT >:

Public Types
typedef std::vector< MAT * >	mat_vector

typedef mat_vector::iterator	iterator

typedef mat_vector::reference	reference

typedef mat_vector::const_reference	const_reference

Public Member Functions
	MaterialVector (const size_t &nMat, const MAT *matModel=nullptr)
	Default constructor.

	MaterialVector (const MaterialVector< MAT > &)
	Copy constructor.

MaterialVector< MAT > &	operator= (const MaterialVector< MAT > &)
	Assignment operator.

void	setMaterial (const MAT *)

void	setMaterial (size_t i, MAT *)

void	setMaterial (const MAT *, const std::string &tipo)

bool	empty (void) const
	Returns true ifno se ha asignado material.

int	commitState (void)
	Commits materials state (normally after convergence).

int	revertToLastCommit (void)
	Returns materials to its last commited state.

int	revertToStart (void)
	Return materials to its initial state.

void	setInitialGeneralizedStrains (const std::vector< Vector > &)
	Assigns initial values to materials initial strains.

void	addInitialGeneralizedStrains (const std::vector< Vector > &)
	Adds to the materials initial strains the values being passed as parameters.

void	zeroInitialGeneralizedStrains (void)
	Initialize initial strains.

size_t	getGeneralizedStressSize (void) const
	Returns the size of stress vector.

size_t	getGeneralizedStrainSize (void) const
	Returns the size of generalized strains vector.

m_double	getGeneralizedStresses (void) const
	Returns generalized stress values on each integration point.

m_double	getGeneralizedStrains (void) const
	Returns generalized strain values on each integration point.

const Vector &	getMeanGeneralizedStress (void) const
	Returns average generalized stress values on element. In a future we can enhance this by providing an extrapolation of results in gauss points as described in 28.4 IFEM chapter 28.

const Vector &	getMeanGeneralizedStrain (void) const
	Returns average generalized strain values on element.In a future we can enhance this by providing an extrapolation of results in gauss points as described in 28.4 IFEM chapter 28.

double	getMeanGeneralizedStrain (const int &defID) const
	Returns the defID component of the average strain vector. More...

double	getMeanGeneralizedStress (const int &defID) const
	Returns the defID component of the average generalized stress vector. More...

double	getMeanGeneralizedStrainByName (const std::string &) const
	Returns the component of the average strain vector which has the code being passed as parameter. More...

double	getMeanGeneralizedStressByName (const std::string &) const
	Returns the component of the average generalized stress vector which corresponds to the code being passed as parameter. More...

m_double	getGeneralizedStrain (const int &defID) const
	Returns the defID component of generalized strain vector on each integration point. More...

m_double	getGeneralizedStress (const int &defID) const
	Returns the defID component of generalized stress vector on each integration point. More...

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.

	MovableObject (int classTag)
	Constructor.

	MovableObject (const MovableObject &otro)
	Copy constructor.

MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.

int	getClassTag (void) const
	Returns the tag de la clase.

int	getDbTag (void) const
	Returns the tag para la database.

int	getDbTag (CommParameters &)
	Returns the tag para la database.

void	setDbTag (int dbTag)
	Asigna el tag para la database.

void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int	updateParameter (int parameterID, Information &info)

virtual int	activateParameter (int parameterID)

virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int	getVariable (const std::string &variable, Information &)

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	clear_materials (void)

void	clearAll (void)

void	alloc (const std::vector< MAT * > &mats)
	Copy materials from another vector.

DbTagData &	getDbTagData (void) const
	Returns a vector para almacenar los dbTags de los miembros de la clase.

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object through the channel being passed as parameter.

Detailed Description

template<class MAT>
class XC::MaterialVector< MAT >

Material pointer container. It's used by elements to store materials for each integration point.

Member Function Documentation

template<class MAT >

m_double XC::MaterialVector< MAT >::getGeneralizedStrain ( const int & defID ) const

Returns the defID component of generalized strain vector on each integration point.

Parameters

defID component index.

template<class MAT >

m_double XC::MaterialVector< MAT >::getGeneralizedStress ( const int & defID ) const

Returns the defID component of generalized stress vector on each integration point.

Parameters

defID component index.

template<class MAT >

double XC::MaterialVector< MAT >::getMeanGeneralizedStrain ( const int & defID ) const

Returns the defID component of the average strain vector.

Parameters

defID component index.

template<class MAT >

double XC::MaterialVector< MAT >::getMeanGeneralizedStrainByName ( const std::string & cod ) const

Returns the component of the average strain vector which has the code being passed as parameter.

Parameters

cod	component code.

template<class MAT >

double XC::MaterialVector< MAT >::getMeanGeneralizedStress ( const int & defID ) const

Returns the defID component of the average generalized stress vector.

Parameters

defID component index.

template<class MAT >

double XC::MaterialVector< MAT >::getMeanGeneralizedStressByName ( const std::string & cod ) const

Returns the component of the average generalized stress vector which corresponds to the code being passed as parameter.

Parameters

cod	component code (n1,n2,n12,m1,m2,m12,q13,q23)

The documentation for this class was generated from the following file:

/usr/local/src/prg/xc/src/material/MaterialVector.h
