Contenedor de puntos del modelo. More...

#include <MapLineas.h>

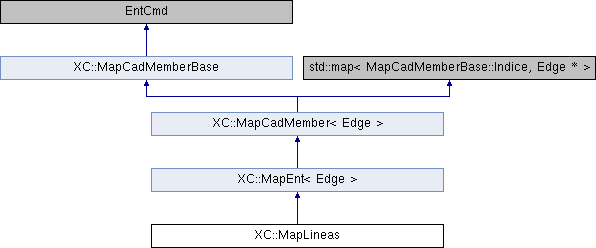

Inheritance diagram for XC::MapLineas:

Public Member Functions
	MapLineas (Cad *cad=nullptr)
	Constructor.

Vector3d	getVector (const Indice &i, const Indice &j) const

Recta3d	getRecta (const Indice &i, const Indice &j) const

Plano3d	getPlano (const Indice &i, const Indice &j, const Indice &k) const

template<class E >
Edge *	Nueva (void)
	Creates a new Edge.

Edge *	createLine (Pnt , Pnt )
	Creates a new line entre los puntos being passed as parameters and inserts it on the container. More...

Edge *	createDividedLine (Pnt , Pnt )
	Creates a new line between the points being passed as parameters and inserts it on the container. More...

Edge *	createArc (Pnt , Pnt , Pnt *)
	Creates a new arc of circle between the points being passed as parameters and inserts it in the edge set.

Edge *	createLineSequence (void)
	Creates a line sequence (polyline) with those being passed as parameters and inserts it in the edge set.

Edge *	createCopy (const Edge *l)
	Creates a new line, copia de la being passed as parameter con el nombre being passed as parameter.

Linea *	newLine (const size_t &, const size_t &)
	Line segment.

DividedLine *	newDividedLine (const size_t &, const size_t &)
	Divided line.

ArcoCircunf *	newCircleArc (const size_t &, const size_t &, const size_t &)
	Circle arc.

CmbEdge *	newLineSequence (void)
	Circle arc.

Public Member Functions inherited from XC::MapEnt< Edge >
	MapEnt (Cad *cad=nullptr)
	Constructor.

Edge *	getNearest (const Pos3d &p)
	Returns the object closest to the position being passed as parameter.

const Edge *	getNearest (const Pos3d &p) const
	Returns the object closest to the position being passed as parameter.

void	numera (void)
	Set indices to the objects to allow its use in VTK.

Public Member Functions inherited from XC::MapCadMember< Edge >
	MapCadMember (Cad *cad=nullptr)
	Constructor.

Edge *	busca (const Indice &)
	Return a pointer to the geometry entity whose identifier is passed as parameter.

const Edge *	busca (const Indice &) const
	Return a pointer to the entity whose identifier is passed as parameter.

bool	existe (const Indice &) const
	Return true if the entity already exists.

Edge *	get (const Indice &)
	Return the entity with tag iEnt.

boost::python::list	getKeys (void) const
	Return the container's keys.

void	clearAll (void)
	Erase all the entities.

Public Member Functions inherited from XC::MapCadMemberBase
	MapCadMemberBase (Cad *cad=nullptr)
	Default identifier for new point. More...

const Cad *	getCad (void) const
	Return a pointer to Cad.

Cad *	getCad (void)
	Return a pointer to Cad.

const Preprocessor *	getPreprocessor (void) const
	Return a pointer to preprocessor.

Preprocessor *	getPreprocessor (void)
	Return a pointer to preprocessor.

size_t	getTag (void) const

void	setTag (const size_t &t)

Protected Member Functions
template<class E >
Edge *	Crea (void)
	Creates a new line.

Additional Inherited Members
Public Types inherited from XC::MapEnt< Edge >
typedef MapCadMember< Edge >::iterator	iterator

typedef MapCadMember< Edge >::const_iterator	const_iterator

Public Types inherited from XC::MapCadMember< Edge >
typedef std::map< Indice, Edge * >	map_base

typedef std::pair< Indice, Edge * >	pair

typedef map_base::iterator	iterator

typedef map_base::const_iterator	const_iterator

Public Types inherited from XC::MapCadMemberBase
typedef size_t	Indice

Protected Attributes inherited from XC::MapCadMemberBase
Indice	tag

Detailed Description

Contenedor de puntos del modelo.

Member Function Documentation

XC::Edge * XC::MapLineas::createDividedLine	(	Pnt *	pA,
		Pnt *	pB
	)

Creates a new line between the points being passed as parameters and inserts it on the container.

Parameters

pA	pointer to back end of the line.
pB	pointer to front end of the line.

XC::Edge * XC::MapLineas::createLine	(	Pnt *	pA,
		Pnt *	pB
	)

Creates a new line entre los puntos being passed as parameters and inserts it on the container.

Parameters

pA	pointer to back end of the line.
pB	pointer to front end of the line.

The documentation for this class was generated from the following files:

/usr/local/src/prg/xc/src/preprocessor/cad/entidades/MapLineas.h
/usr/local/src/prg/xc/src/preprocessor/cad/entidades/MapLineas.cc
