XC::DruckerPragerPlaneStrain Class Reference

Drucker-Prager plane strain material. More...

#include <DruckerPragerPlaneStrain.h>

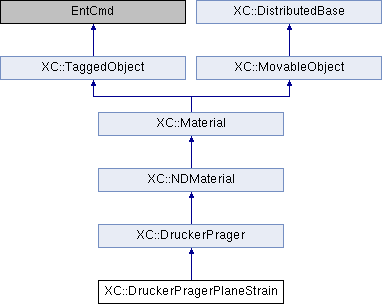

Inheritance diagram for XC::DruckerPragerPlaneStrain:

Public Member Functions
	DruckerPragerPlaneStrain (int tag, double bulk, double shear, double s_y, double r, double r_bar, double Kinfinity, double Kinit, double d1, double d2, double H, double t, double massDens, double atm)
NDMaterial *	getCopy (void) const
	Virtual constructor.
const std::string &	getType (void) const
int	getOrder () const
int	setTrialStrain (const Vector &strain_from_element)
	Asigna el trial strain value.
int	setTrialStrain (const Vector &v, const Vector &r)
	Asigna el trial strain value.
const Vector &	getStrain ()
	Returns strain.
const Vector &	getStress ()
	Returns stress.
const Matrix &	getTangent ()
	Return the tangent stiffness matrix.
const Matrix &	getInitialTangent ()
Public Member Functions inherited from XC::DruckerPrager
	DruckerPrager (int tag, int classTag, double bulk, double shear, double s_y, double r, double r_bar, double Kinfinity, double Kinit, double d1, double d2, double H, double t, double massDen=0.0, double atm=101.0)
NDMaterial *	getCopy (const std::string &type) const
int	commitState (void)
int	revertToLastCommit (void)
int	revertToStart (void)
Response *	setResponse (const std::vector< std::string > &argv, Information &matInfo)
int	getResponse (int responseID, Information &matInformation)
	Returns material response.
int	sendSelf (CommParameters &)
int	recvSelf (const CommParameters &)
void	Print (std::ostream &, int flag=0)
	Imprime el objeto.
double	getRho (void)
Public Member Functions inherited from XC::NDMaterial
	NDMaterial ()
	Constructor.
	NDMaterial (int tag, int classTag)
	Constructor.
virtual double	getRho (void) const
virtual double	getE (void)
virtual double	getnu (void)
virtual double	getpsi (void)
virtual int	setTrialStrainIncr (const Vector &v)
	Asigna el valor del incremento de la trial strain.
virtual int	setTrialStrainIncr (const Vector &v, const Vector &r)
	Asigna el valor del incremento de la trial strain.
const Vector &	getGeneralizedStress (void) const
const Vector &	getGeneralizedStrain (void) const
virtual void	setInitialGeneralizedStrain (const Vector &)
	Asigna el initial strain value.
const Vector &	getInitialGeneralizedStrain (void) const
	Return the initial strain.
virtual const Vector &	getCommittedStress (void)
	Returns commited stresses.
virtual const Vector &	getCommittedStrain (void)
	Returns commited strains.
virtual int	setTrialStrain (const Tensor &v)
	Asigna el trial strain value.
virtual int	setTrialStrain (const Tensor &v, const Tensor &r)
virtual int	setTrialStrainIncr (const Tensor &v)
	Asigna el valor del incremento de la trial strain.
virtual int	setTrialStrainIncr (const Tensor &v, const Tensor &r)
virtual const Tensor &	getTangentTensor (void) const
virtual const stresstensor &	getStressTensor (void) const
virtual const straintensor &	getStrainTensor (void) const
virtual const straintensor &	getPlasticStrainTensor (void) const
virtual int	setTrialF (const straintensor &f)
virtual int	setTrialFIncr (const straintensor &df)
virtual int	setTrialC (const straintensor &c)
virtual int	setTrialCIncr (const straintensor &dc)
virtual const stresstensor	getPK1StressTensor (void)
virtual const stresstensor	getCauchyStressTensor (void)
virtual const straintensor &	getF (void) const
virtual const straintensor &	getC (void) const
virtual const straintensor	getFp (void)
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
virtual int	updateParameter (int parameterID, Information &info)
virtual int	activateParameter (int parameterID)
virtual const Vector &	getStressSensitivity (int gradNumber, bool conditional)
virtual const Vector &	getStrainSensitivity (int gradNumber)
virtual const Matrix &	getTangentSensitivity (int gradNumber)
virtual const Matrix &	getDampTangentSensitivity (int gradNumber)
virtual double	getRhoSensitivity (int gradNumber)
virtual int	commitSensitivity (Vector &strainGradient, int gradNumber, int numGrads)
Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor.
const MaterialLoader *	GetMaterialLoader (void) const
	Returns (if possible) a pointer to the material handler (owner).
MaterialLoader *	GetMaterialLoader (void)
	Returs a pointer to the material handler (if possible).
std::string	getName (void) const
	Returns the name of the material.
virtual int	setVariable (const std::string &argv)
virtual int	getVariable (int variableID, double &info)
virtual void	update (void)
	Update state variables for the material according to the new values of the parameters.
virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...
virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain
Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, EntCmd *owr=nullptr)
	Constructor.
void	assignTag (int newTag)
	Establece el valor del tag.
int	getTag (void) const
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor.
	MovableObject (int classTag)
	Constructor.
	MovableObject (const MovableObject &otro)
	Copy constructor.
MovableObject &	operator= (const MovableObject &otro)
	Operacdor asignación.
int	getClassTag (void) const
	Returns the tag de la clase.
int	getDbTag (void) const
	Returns the tag para la database.
int	getDbTag (CommParameters &)
	Returns the tag para la database.
void	setDbTag (int dbTag)
	Asigna el tag para la database.
void	setDbTag (CommParameters &)
	Asigna, sólo si es preciso, el tag para la database.
virtual int	setVariable (const std::string &variable, Information &)
	Returns the identificador de la variable cuyo nombre being passed as parameter.
virtual int	getVariable (const std::string &variable, Information &)
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Additional Inherited Members
Protected Member Functions inherited from XC::DruckerPrager
void	initialize ()
int	updateElasticParam (void)
void	plastic_integrator (void)
double	Kiso (double alpha1)
double	Kisoprime (double alpha1)
double	T (double alpha2)
double	deltaH (double dGamma)
Vector	getState ()
Protected Member Functions inherited from XC::NDMaterial
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Establece el valor del tag.
Protected Attributes inherited from XC::DruckerPrager
double	mKref
double	mGref
double	mPatm
double	mK
double	mG
double	msigma_y
double	mrho
double	mrho_bar
double	mKinf
double	mKo
double	mdelta1
double	mdelta2
double	mHard
double	mtheta
double	mTo
double	massDen
Vector	mEpsilon
Vector	mEpsilon_n_p
Vector	mEpsilon_n1_p
Vector	mSigma
Vector	mBeta_n
Vector	mBeta_n1
double	mHprime
double	mAlpha1_n
double	mAlpha1_n1
double	mAlpha2_n
double	mAlpha2_n1
int	mElastFlag
int	mFlag
Matrix	mCe
Matrix	mCep
Vector	mI1
Matrix	mIIvol
Matrix	mIIdev
Vector	mState
Static Protected Attributes inherited from XC::DruckerPrager
static const double	one3 = 1.0 / 3.0
static const double	two3 = 2.0 / 3.0
static const double	root23 = sqrt(2.0/3.0)

Detailed Description

Drucker-Prager plane strain material.

---

The documentation for this class was generated from the following files:

• /usr/local/src/prg/xc/src/material/nD/UWmaterials/DruckerPragerPlaneStrain.h
• /usr/local/src/prg/xc/src/material/nD/UWmaterials/DruckerPragerPlaneStrain.cpp
