XC Open source finite element analysis program
Public Member Functions | List of all members
XC::DamageModel Class Referenceabstract

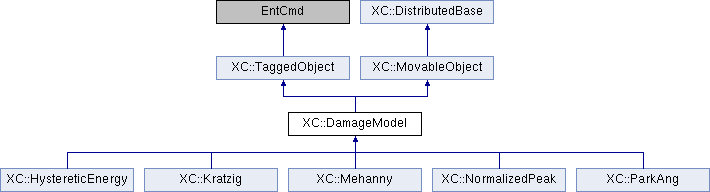

Inheritance diagram for XC::DamageModel:
XC::TaggedObject XC::MovableObject XC::DistributedBase XC::HystereticEnergy XC::Kratzig XC::Mehanny XC::NormalizedPeak XC::ParkAng

Public Member Functions

 DamageModel (int tag, int classTag)

virtual int setTrial (const Vector &trialVector)=0

virtual double getDamage (void)=0

virtual double getPosDamage (void)=0

virtual double getNegDamage (void)=0

virtual int commitState (void)=0

virtual int revertToLastCommit (void)=0

virtual int revertToStart (void)=0

virtual DamageModelgetCopy (void) const =0
 Virtual constructor.

virtual int setVariable (const std::string &argv)

virtual int getVariable (int variableID, double &info)

virtual int setParameter (const std::vector< std::string > &argv, Information &theInformation)

virtual int updateParameter (int responseID, Information &theInformation)

virtual ResponsesetResponse (const std::vector< std::string > &argv, Information &theInformation)=0

virtual int getResponse (int responseID, Information &info)=0

virtual int sendSelf (CommParameters &)=0

virtual int recvSelf (const CommParameters &)=0

virtual void Print (std::ostream &s, int flag=0)=0
 Imprime el objeto.

- Public Member Functions inherited from XC::TaggedObject
 TaggedObject (int tag, EntCmd *owr=nullptr)
 Constructor.

void assignTag (int newTag)
 Establece el valor del tag.

int getTag (void) const

- Public Member Functions inherited from XC::MovableObject
 MovableObject (int classTag, int dbTag)
 Constructor.

 MovableObject (int classTag)
 Constructor.

 MovableObject (const MovableObject &otro)
 Copy constructor.

MovableObjectoperator= (const MovableObject &otro)
 Operacdor asignación.

int getClassTag (void) const
 Returns the tag de la clase.

int getDbTag (void) const
 Returns the tag para la database.

int getDbTag (CommParameters &)
 Returns the tag para la database.

void setDbTag (int dbTag)
 Asigna el tag para la database.

void setDbTag (CommParameters &)
 Asigna, sólo si es preciso, el tag para la database.

virtual int setParameter (const std::vector< std::string > &argv, Parameter &param)

virtual int activateParameter (int parameterID)

virtual int setVariable (const std::string &variable, Information &)
 Returns the identificador de la variable cuyo nombre being passed as parameter.

virtual int getVariable (const std::string &variable, Information &)

- Public Member Functions inherited from XC::DistributedBase
 DistributedBase (void)
 Constructor.

virtual DbTagDatagetDbTagData (void) const
 Returns a vector to store class dbTags.

const int & getDbTagDataPos (const int &i) const
 Returns the data at the i-th position.

void setDbTagDataPos (const int &i, const int &v)
 Sets the data at the i-th position.

void inicComm (const int &dataSize) const
 Initializes communication.


Additional Inherited Members

- Protected Member Functions inherited from XC::TaggedObject
void setTag (int newTag)
 Establece el valor del tag.


The documentation for this class was generated from the following files:
